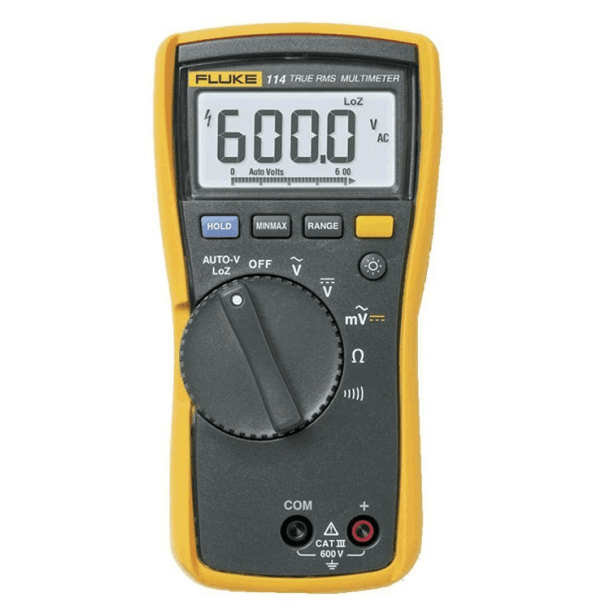

ELECTRICAL TRMS MULTIMETER - IC- FLUKE-114

ORDER ME IN
Product code: IC-FLUKE-114

Order Me In, Once ordered this item will likely dispatch before the 17th of October 2025, call 1300 737 871 (NZ 0800 737 871) to confirm.

Compact true-rms meter for electrical troubleshooting. The Fluke 114 is the troubleshooting tool for "go/no-go" testing. It includes a feature to prevent false readings caused by ghost voltage.

Read more

$319.50 AUD + GST
 $351.45 AUD Inc. GST
"
Features:

AutoVolt: automatic ac/dc voltage selection
Large white LED backlight to work in poorly lit areas
Resistance and continuity
Min/Max/Average to record signal fluctuations
CAT III 600 V safety rated

Specifications

Maximum voltage between any terminal and earth ground: 600 V
Surge protection: 6 kV peak per IEC 61010-1 600 VCAT III, Pollution Degree 2
Display Digital: 6,000 counts, updates 4 per second
Bar graph: 33 segments, updates 32 per second
Operating Temperature: -10 C to + 50 C
Storage Temperature: -40 C to + 60 C
Battery type: 9 volt Alkaline, NEDA 1604A/ IEC 6LR61
Battery Life: 400 hours typical, without backlight
Size: 167 x 84 x 46 mm (6.57"" x 3.31"" x 1.82"")
Weight: 550 g

Accuracy specifications:

DC millivolts
Range: 600.0 mV
Resolution: 0.1 mV
Accuracy: ([% of reading] + [counts]): 0.5% + 2

DC volts

Range/Resolution: 6.000 V / 0.001 V
Range/Resolution: 60.00 V / 0.01 V
Range/Resolution: 600.00 V / 0.1 V
Accuracy: ([% of reading] + [counts]): 0.5% + 2

Auto volts

Range: 600.0 V
Resolution: 0.1 V
Accuracy: 2.0 % + 3 (dc, 45 Hz to 500 Hz)4.0 % + 3 (500 Hz to 1 kHz)

AC millivolts1 true-rms

Range: 600.0 mV
Resolution: 0.1 mV
Accuracy: 1.0 % + 3 (dc, 45 Hz to 500 Hz)2.0 % + 3 (500 Hz to 1 kHz)

AC volts1 true-rms

Range/Resolution: 6.000 V / 0.001 V
Range/Resolution: 60.00 V / 0.01 V
Range/Resolution: 600.0 V / 0.1 V
Accuracy: 1.0 % + 3 (dc, 45 Hz to 500 Hz)2.0 % + 3 (500 Hz to 1 kHz)

Continuity

Range: 600 ?
Resolution: 1 ?
Accuracy: Beeper on < 20 ?, off > 250 ?; detectsopens or shorts of 500 s or longer.

Ohms

Range/Resolution: 600.0 ? / 0.1 ?
Range/Resolution: 6.000 k? / 0.001 k?
Range/Resolution: 60.00 k? / 0.01 k?
Range/Resolution: 600.0 k? / 0.1 k?
Range/Resolution: 6.000 M? / 0.001 M?
Accuracy: 0.9 % + 1
Range/Resolution: 40.00 M? / 0.01 M?
Accuracy: 5 % + 2
"
