ELECTRICAL TESTER - IC-T5-1000 USA
Unfortunately, the T5-1000-USA has been discontinued, check out our other Digital Multimeters for more options.

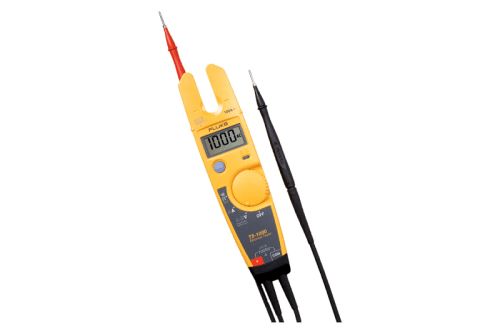

The Fluke T5-1000 Electrical Tester kit let you check voltage, continuity and current with one compact tool. With the T5, all you have to do is select volts, ohms, or current and the tester does the rest. OpenJaw current lets you check current up to 100A - without breaking the circuit. Now it comes with a holster for convinient storage.
Unfortunately, the T5-1000-USA has been discontinued, check out our other
Digital Multimeters for more options.
Automatically measures volts ac and volts dc with precise digital resolution
Displays resistance to 1000
Easy and accurate OpenJaw current measurement
Continuity beeper
Compact design with neat probe storage
Rugged enough to withstand a 10-foot (3m) drop
Detachable SlimReach probe tips are customized for national electrical standards
Test leads accept Fluke accessory test clips
Available in 600V and 1000V models
Can stay connected much longer than solenoid type tester
Auto off mode to conserve battery life
Optional holster attaches to a belt and neatly stows test leads
Specifications
Continuity beeper: Threshold: On at <25 , off at >400Volts indicator LED: Threshold: Guaranteed on by 30V ac
Operating Temperature: -10 C to 50 C
Storage Temperature: -30 C to 60 C
Humidity (Without Condensation): 0% to 95% (5 C to 30 C), 0% to 75% (30 C to 40 C), 0% to 45% (40 C to 50 C)
Dust/water resistant: Yes
Operating Altitude: 2000 meters max
Temperature Coefficient: 0.1 x (specified accuracy)/degree C (<18 C or >28 C)
Overvoltage category: 1000V ac/dc, CAT III;600V ac/dc, CAT IV
Agency Approvals: UL, CSA, and VDE
Maximum voltage: Between any terminal and earth ground
Size: 30.5 x 51 x 203 mm
Weight: 300g
Warranty: 2 years
Battery Life: 200 hour zinc chloride, 400 hour alkaline
Battery type: Two AA zinc chloride
Low battery indicator: Yes
Current sensor opening: 12.9 mm
