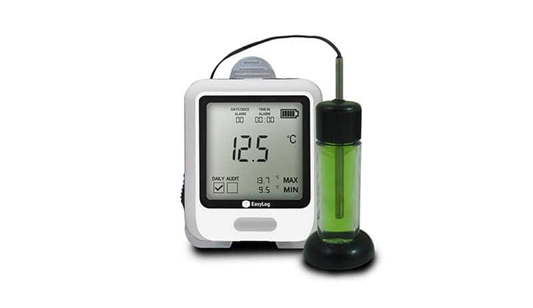

EL-USB-VACX Vaccine Temperature Monitor
Order Me In, Once ordered this item will likely dispatch before the 06th of November 2025, call 1300 737 871 (NZ 0800 737 871) to confirm.
The EL-USB-VACX measures the temperature of a calibratable probe fitted within a glycol-filled bottle, designed to mimic the temperature response of vaccine samples. Configuration is simple, with no software to install on your PC or Mac – just connect the logger with a USB cable, and use your standard web browser to configure the device for logging. You don’t even need internet access to set up and use the EL-USB-VACX, it really couldn’t be easier.
$448.96 AUD Inc. GST
The EL-USB-VACX vaccine data logger is an essential tool for healthcare facilities, pharmacies, and research institutions. By providing reliable temperature monitoring and data management, it helps to maintain the integrity of vaccines and safeguard public health.
Features
- Wide Temperature Range: Accurately measures temperatures from -40°C to +60°C, covering the critical storage requirements for a variety of vaccines.
- Extensive Data Storage: Stores over 1,000,000 readings, providing a comprehensive historical record of temperature fluctuations.
- Glycol-Based Vaccine Simulation: Prevents false alarms by accurately simulating the thermal response of vaccines, ensuring reliable temperature monitoring.
- High-Accuracy Smart Probe: Delivers precise temperature measurements for accurate and dependable data collection.
- Hot Swappable Calibration: Easily recalibrate the data logger on-site without disrupting your operations or sending it away for service.
- Onboard Software: Conveniently graph and configure settings directly on the device, streamlining data analysis and management.
Specifications
- Temperature measurement range: -40 to +60°C / -40 to + 140°F
- Temperature measurement range accuracy typical: ±0.1°C (-10 to +60°C)/ ±0.2°F (+14 to +140°F)
- Temperature measurement accuracy maximum: ±0.5°C (-40 to +60°C)/ ±0.9°F (-40 to +140°F)
- Temperature measurement resolution: 0.01°C (0.02°F)
- Temperature display resolution: 0.01
- Logging period (user selectable): 1 minute to 24 hours
- Smart modes: Immediate, push to start, delayed start, temperature triggered
- Internal memory capacity: Over 1,000,000 readings
- Sounder: Integrated alarm sounder
- Operating environment (logger): -20 to +60°C, 5 to 85%RH, 75 to 106kPa
- Transportation environment: -20 to +60°C, 5 to 85%RH, 75 to 106kPa
- Ingress protection: Logger IP4X, Probe: IP67
- Pollution degree of the intended use environment: 2
- Battery life: 6 months
- Internal battery: 3.7V,1750mAh, 6.475Wh, Li-ion
- USB supply voltage: 4.5 to 5.5VDC, 500mA
- Dimensions (logger): 80 x 68 x 23mm (3.15 x 2.68 x 0.91″)
- Net weight: 134g
- Recommended wall fixing screws: 4 x 20mm, countersunk head, cross recessed, stainless steel
