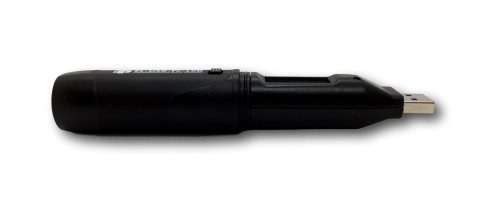

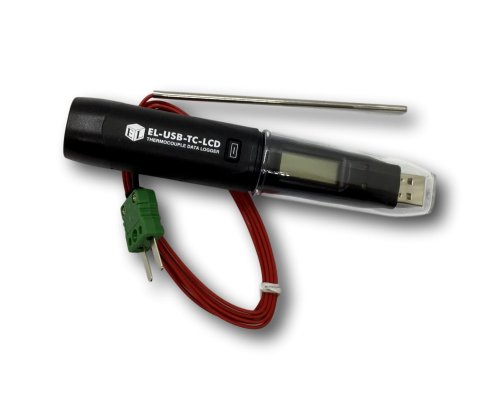

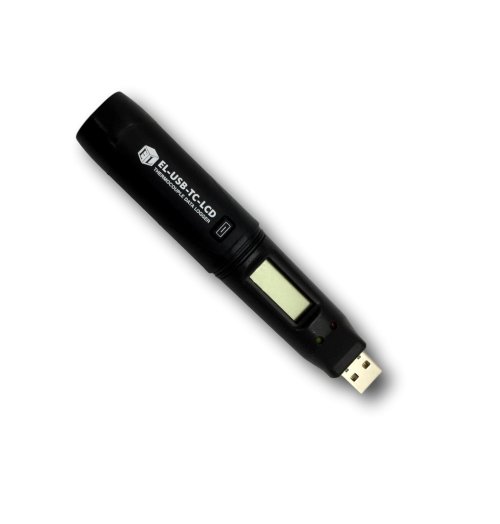

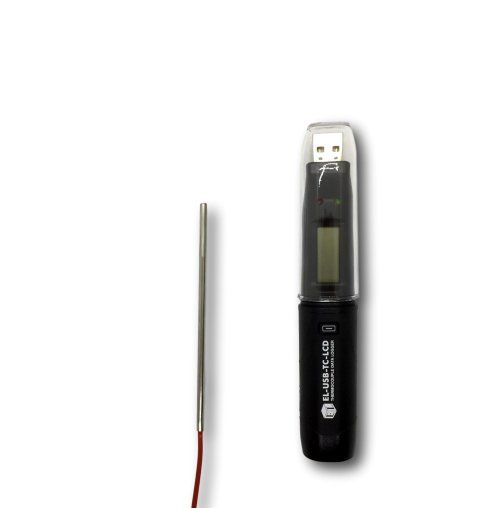

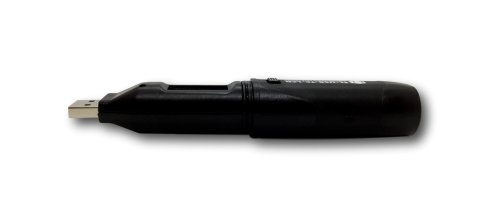

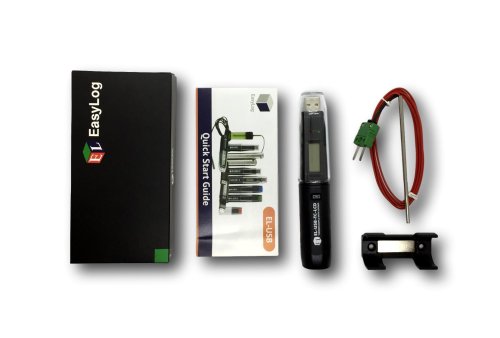

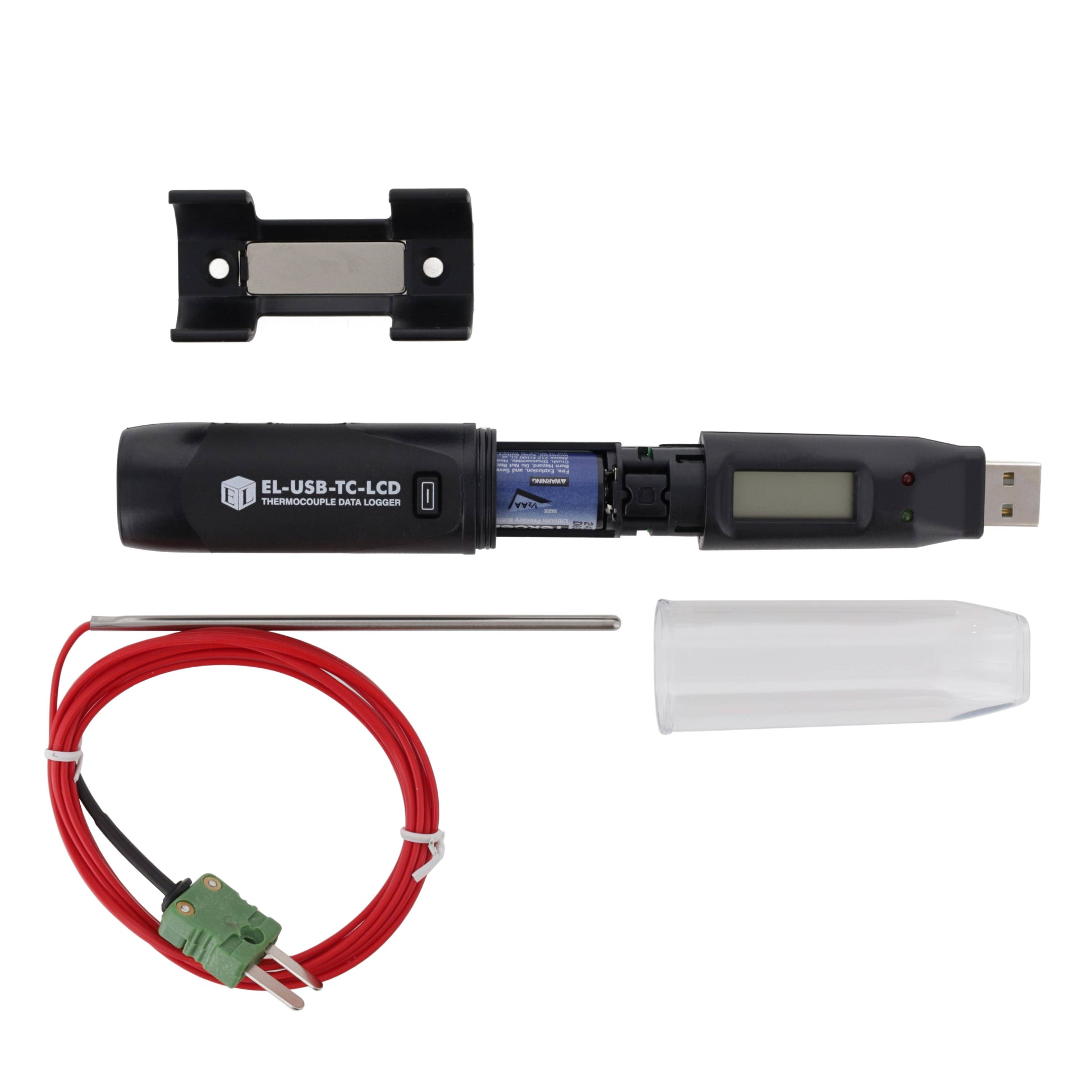

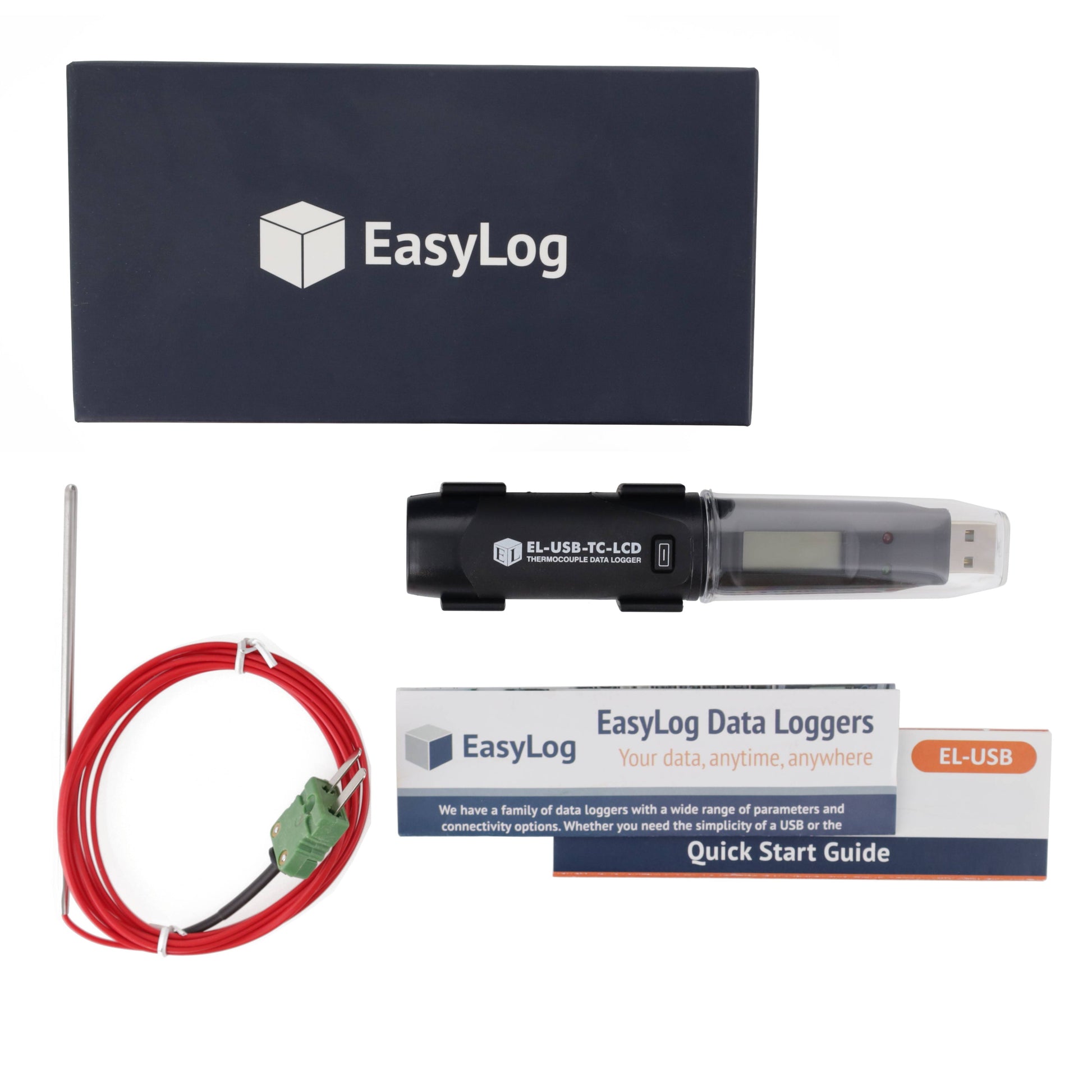

This standalone data logger measures over 32,000 readings from inter-changeable J, K or T type thermocouples. Supplied with a K Type probe, its measurement range out of the box measures from 0 to 200 C (32 to 392 F) range. At the touch of a button, use the on-board display to cycle between the current, minimum and maximum temperature logs seen during the session. Easily set up the logger and view downloaded data by plugging the unit into a PC's USB port and using the free EasyLog software for Windows 10 and 11 provided. Data can then be graphed, printed and exported to other applications for detailed analysis. Supplied with 1/2 AA battery, K-type probe and wall mount clip.
What does the EL-USB-TC-LCD Log?
- Temperature
Features
- LED flashing modes

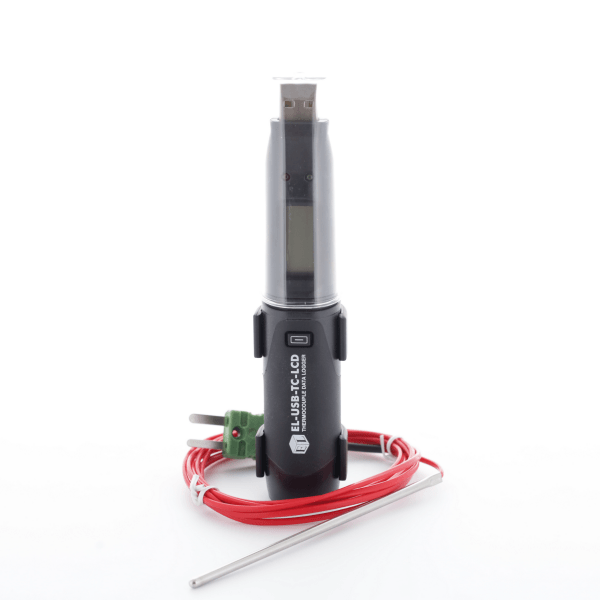

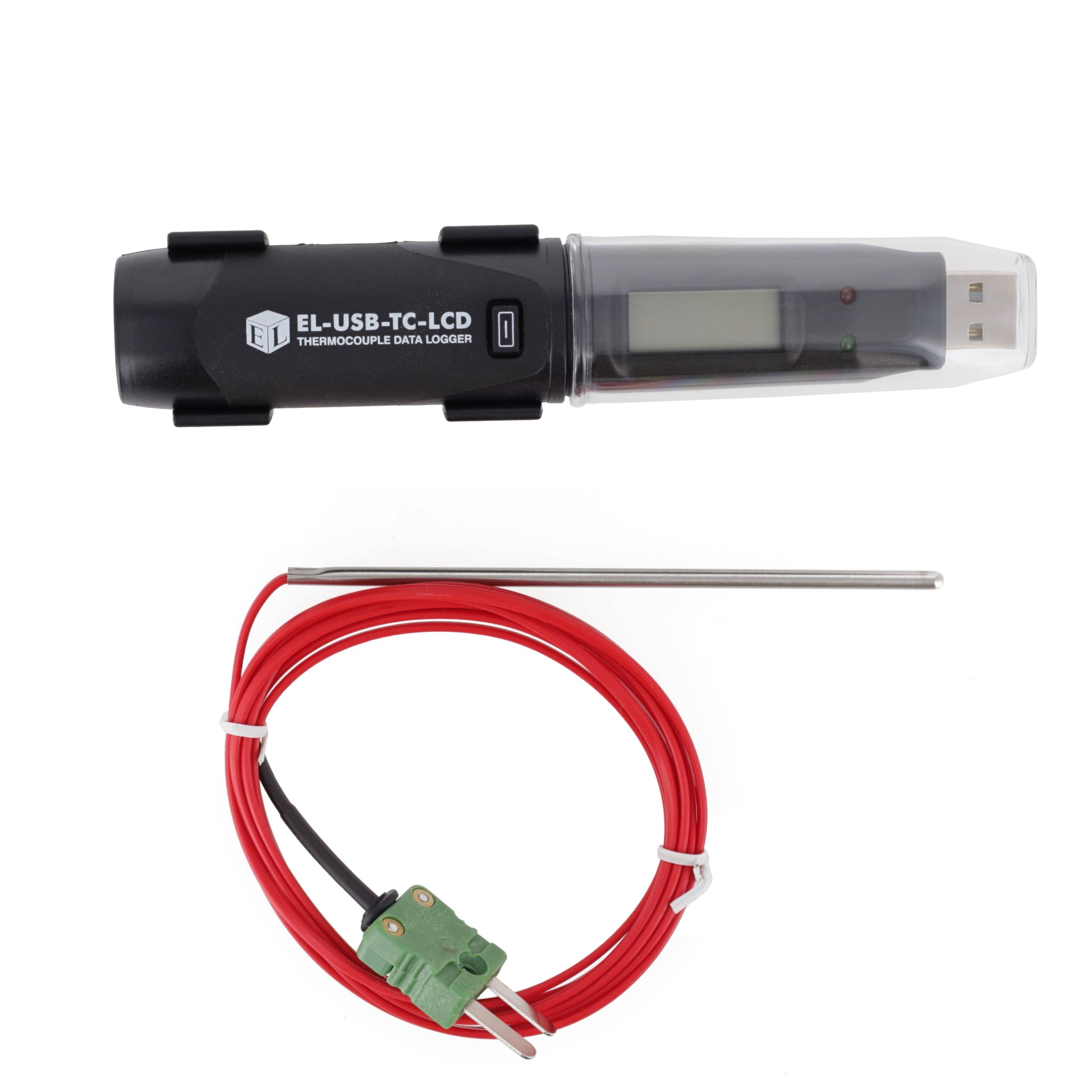

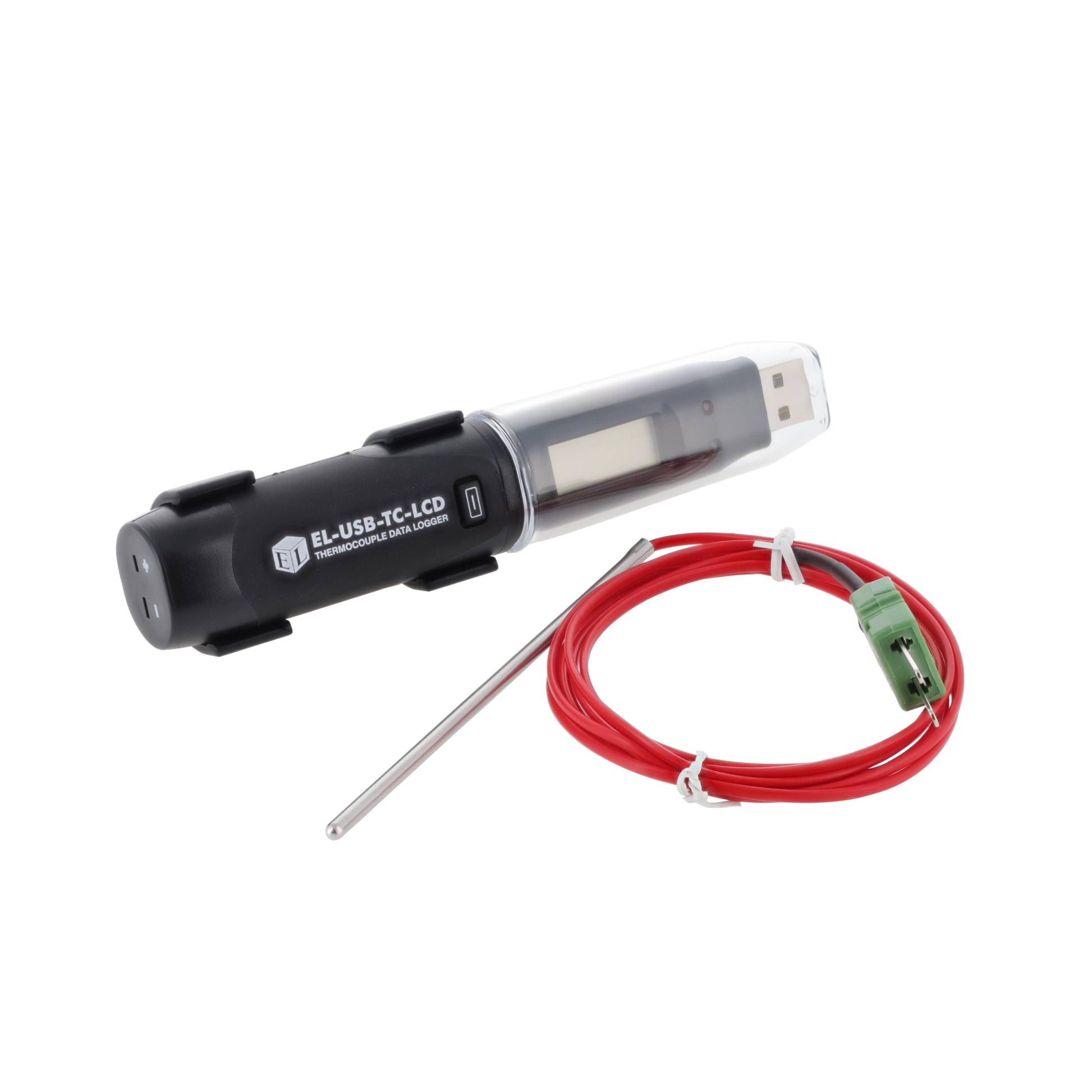

- Includes a K-type thermocouple
- Easily switch between Celsius and Fahrenheit
- Data rollover for unlimited logging periods

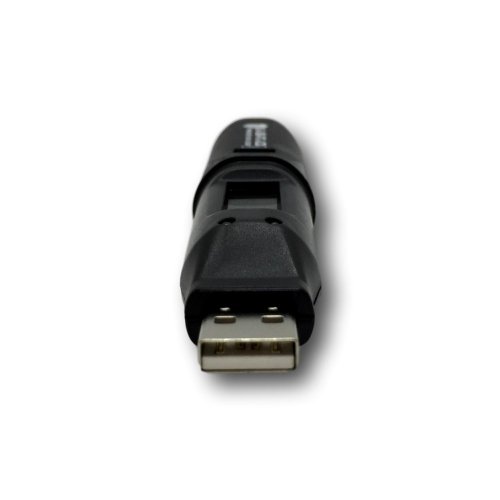

- USB connector
- Free Windows control software available for download, CLICK HERE to download.
Specifications
- K-type range: -200 to 1350C
- J-type range: -200 to 1190C
- T-type range: -200 to 390C
Power Requirements

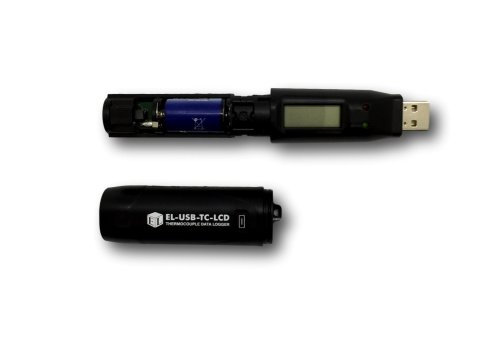

-Long life lithium battery (included)
Dimensions
- 134.5 mm x 23.9 mm x 21.2mm
Warranty
- 12 Months
