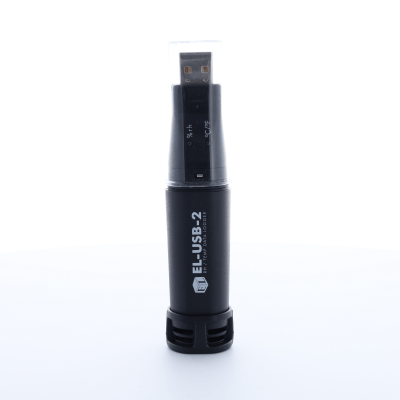

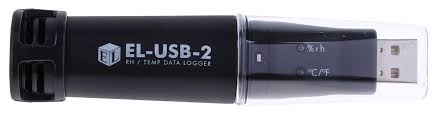

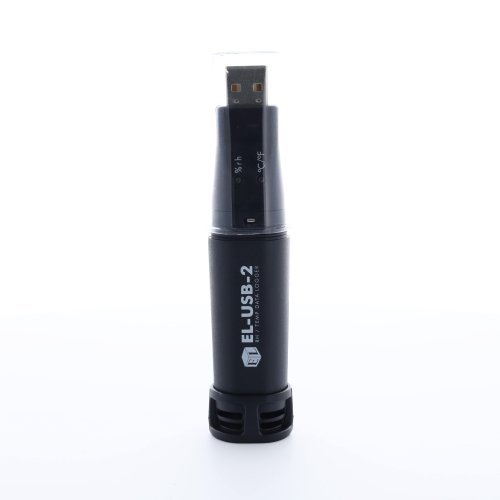

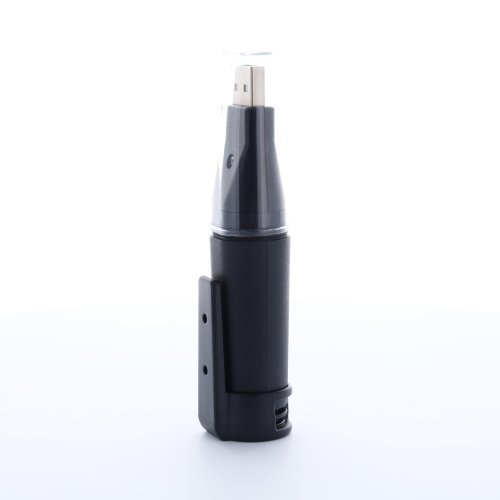

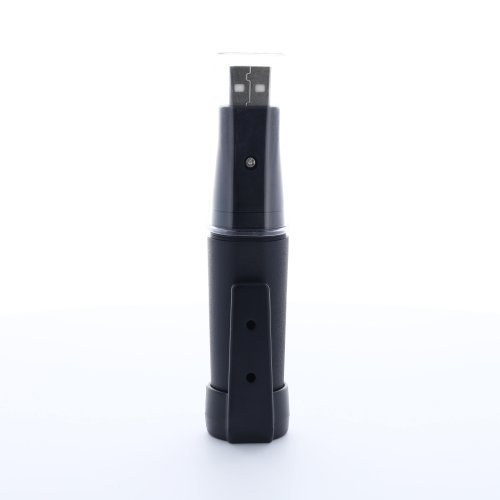

USB Humidity Data Logger with Dew Point & Temp. - EL-USB-2

8 AVAILABLE
Availability Info (?)

Order now and the extra items will likely dispatch before the 4th Oct 2025. Call 1300 737 871 (NZ 0800 737 871) to confirm.

Product code: EL-USB-2
USB Humidity Data Logger with temperature and dew point (SP2S).
Bonus Additional 1 Year Instrument Choice Warranty!

Read more

$136.00 AUD + GST
 $149.60 AUD Inc. GST
This data logger measures and stores up to 16,382 relative humidity and 16,382 temperature readings over 0 to 100%RH and -35 to +80C (-31 to +176F) measurement ranges.
Initial configuration of the data logger is done with Lascar's EL-WIN-USB software running on Windows (compatible with 32-bit and 64-bit versions of Windows 10 and 11) and above.

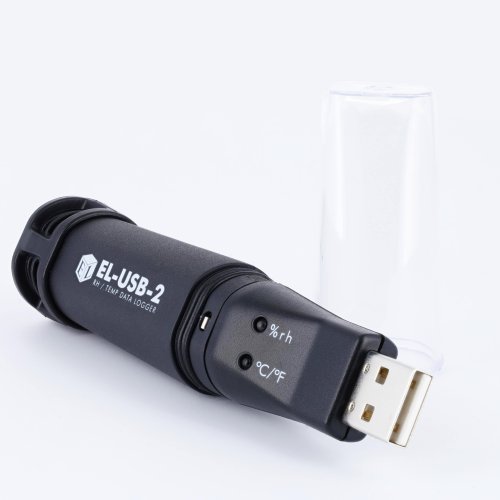

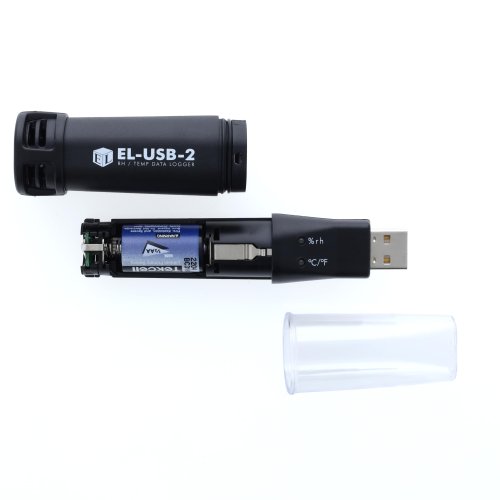

Relative humidity, temperature and dew point (the temperature at which water vapor present in the air begins to condense) data can then be graphed, printed and exported to other applications. The data logger is supplied complete with a long-life lithium battery, which can typically allow logging for a year. Status indication is via flashing red and green LEDs. The logger is protected against ingress from water and dust to IP67 standard when the plastic cap and seal are fitted.
2 Year Warranty (1 Year Manufacturer Warranty + Bonus 1 Year Instrument Choice Warranty)
EasyLog USB
Download version 7.7 of our latest software. The EasyLog USB software is compatible with Windows 10 and 11.
EL-USB-2 Features
* 10 to +90%RH Measurement Range
* -35 to +80C (-31 to +176F) Measurement Range
* Dew point indication via Windows Control Software
* User-Programmable Alarm Thresholds for %RH & T
* Status Indication via Red and Green LEDs
* Supplied with Replaceable Internal Lithium Battery and Windows Control Software
* Environmental Protection to IP67
Free Software Download
Easy to install and use, the control software runs under Windows operating systems. It allows the user to set up and download any EL-USB-2. The latest version of the control software may be downloaded free, click here.


Specifications

Temperature
Body cell
Measurement Range
-35 to +80C (-31 to + 176F)
Accuracy (overall error)*
0.55C (1.04F) typical (5 to 60C)
Internal resolution
0.5C (1F)
Long term stability
Less than 0.02C (0.04F)year
Humidity
Body cell
Measurement Range
0 to 100%RH
Accuracy (overall error)*
2.25%RH typical (20 to 80%RH)
Internal resolution
0.5%RH
Long term stability
Less than 0.25%RH / year
Dew Point
Body cell
Accuracy (overall error)*
1.7C typical (-35 to 80C, 40 to 100%RH)
Other Specifications
Body cell
Logging rate
User selectable between 10 seconds & 12 hours
Operating temperature range
-35 to +80C (-31 to +176F)
Battery life
3 years (at 25C and 1 minute logging rate)
Readings
16,382 temperature, 16,382 relative humidity
Dimensions
108 x 25 x 22mm (4.25 x 0.98 x 0.86)
