Edge blu Bluetooth Smart pH Electrode and Meter - IC-HI2202-02
DISCONTINUED
Product code: IC-HI2202-02

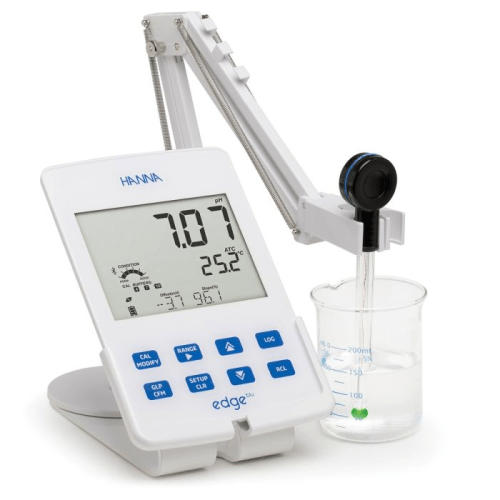

The HI2202-02 Edge Blu is a wireless pH bench meter with a Bluetooth pH electrode that connects directly to your smart device.
- - Uses the Hanna HALO Bluetooth pH electrodes with a built-in temperature sensor to send measurement data wirelessly to the meter or a compatible Apple or Android device running the Hanna Lab App.
- - Edge blu features advanced pH electrode diagnostics to ensure worry free measurements, including Hanna's CAL Check feature.
The edge blu is thin and lightweight, measuring just 0.5 inch thick and weighing less than 9 ounces. edge blu has an incredibly wide viewing angle, 5.5 inch LCD and a sensitive capacitive touch keypad. edge blu is simple to configure, calibrate, measure, log and transfer data to a computer or a USB drive. This meter features Hannas exclusive CAL Check to warn if the HALO pH electrode being used is not clean or if your buffers are contaminated during calibration. An Indicator is also displayed after calibration showing the overall probe condition that is based on the offset and slope characteristic of the pH electrode.
HALO pH electrodes with Bluetooth Smart Technology
Each edge blu is supplied with a HI11102 HALO Bluetooth pH electrode. The Halo uses Bluetooth Smart Technology (Bluetooth 4.0), which is energy efficient and allows the probe to operate on 1 CR2032 battery for approximately 500 hours. The HI11102 HALO pH electrode is a double junction, gel filled, glass body pH electrode with a built-in thermistor temperature sensor. All readings are automatically compensated for temperature variations.
The HI11102 HALO pH electrode transmits measurement data directly to edgeblu or a compatible Apple or Android device. All HALO pH electrodes are auto-detected providing pH sensor type, calibration data and serial number when connected. The HALO pH electrode also features a blue LED ring that changes flashing frequency based on whether it is in discovery mode or when it is connected to the edgeblu or compatible device. The button located on the HALO pH probe is used to place it in discovery mode or to log data directly to the edgeblu or compatible Apple or Android device.
The HI11102 HALO pH electrode uses Bluetooth Smart Technology (Bluetooth 4.0). This technology offers low power consumption allowing for a long, 500-hour battery life. The range of the Bluetooth connection is 10 meters (33) between the probe and receiving device.
At a push of the button on the HI11102 HALO pH electrode places the probe in discovery mode and will be detected by edgeblu or compatible device running the Hanna Lab App. Once connected the serial number, calibration information including date, time and buffers used, and the electrode specifications will be loaded into the meter. Having this information stored in the electrode allows for hot swapping to other pH electrodes without recalibrating. The details of the electrode and calibration information are stored with any logged readings.
The HI11102 HALO pH electrode is a glass body, gel filled, double junction pH electrode that has an indicating probe made with general purpose glass. The glass body is resistant to many chemicals and easy to clean. Being gel filled reduces maintenance since there are no fill solutions to add. The double junction design is suitable for a variety of solutions that can contain substances such as heavy metals or Tris buffer that will cause the silver chloride (AgCl) found in a single junction probe to precipitate and clog the junction. The general purpose glass indicating probe has a temperature range of use from -5.0 to 80.0 C and for samples that have a 0 to 12 pH.
Features:
- edge blu uses HALO Bluetooth digital pH electrodes. Once a probe is connected, all sensor information including sensor operating specifications and calibration information is transferred. pH electrodes are easy to exchange when you want to change from measuring with one type to another without the need for recalibration
- In standard mode, edgeblu can be calibrated automatic up to 5 points with 7 standard buffers (1.68, 4.01, 6.86, 7.01, 9.18, 10.01, 12.45) and 2 custom buffers
- The versatile design of edge blu makes equally at home in your hand, on a lab bench, or mounted on a wall
- Good Laboratory Practice (GLP) feature: The GLP data can be review at anytime at a push of a button. GLP data includes, date, time, buffers, offset and slope of the last pH calibration
- CAL Check pH Electrode Monitoring Technology: Hannas exclusive CAL Check feature analyzes the pH electrode response in the pH buffers during the calibration process to alert the user of potential problems such as contaminated buffer and clean electrode. After calibration, indicators for probe condition is displayed on the measurement screen. The probe condition is based on offset and slope characteristics of the pH electrode
- Multiple Data Logging Modes: Log-on-demand, log-on-stability, and interval logging modes are all available. Up to 200 data points can be logged on demand and an additional 200 data points for samples logged upon a stable reading. Interval logging is adjustable from 5 seconds to 180 minutes. Up to 600 records can be stored in a maximum of 100 interval lots. Logging modes can be started from the meter or by simply pressing the button on the HALO pH probe.
- Cradle and Electrode Holder: edge is equipped with a benchtop cradle with an adjustable swivel electrode holder to charge and hold the edge securely in place at the optimum viewing angle
- Large, Easy to Read LCD: edge blu features an LCD that measures 5.5 and is clearly viewable from over 5 meters. Add to that a wide viewing angle of 150 degrees and you have one of the clearest LCDs in the industry. In addition to its large LCD, edge also features full text guides displayed on the bottom of the screen. There is no need to decipher scrambled abbreviations.
- Capacitive Touch: edge blu features sensitive capacitive touch buttons for accurate keystrokes when navigating edges menus and screens. Since they are part of the screen, the buttons can never get clogged with sample residue.
- In standard mode, edgeblu can be calibrated automatic up to 5 points with 7 standard buffers (1.68, 4.01, 6.86, 7.01, 9.18, 10.01, 12.45) and 2 custom buffers
- The versatile design of edge blu makes equally at home in your hand, on a lab bench, or mounted on a wall
- Good Laboratory Practice (GLP) feature: The GLP data can be review at anytime at a push of a button. GLP data includes, date, time, buffers, offset and slope of the last pH calibration
- CAL Check pH Electrode Monitoring Technology: Hannas exclusive CAL Check feature analyzes the pH electrode response in the pH buffers during the calibration process to alert the user of potential problems such as contaminated buffer and clean electrode. After calibration, indicators for probe condition is displayed on the measurement screen. The probe condition is based on offset and slope characteristics of the pH electrode
- Multiple Data Logging Modes: Log-on-demand, log-on-stability, and interval logging modes are all available. Up to 200 data points can be logged on demand and an additional 200 data points for samples logged upon a stable reading. Interval logging is adjustable from 5 seconds to 180 minutes. Up to 600 records can be stored in a maximum of 100 interval lots. Logging modes can be started from the meter or by simply pressing the button on the HALO pH probe.
- Cradle and Electrode Holder: edge is equipped with a benchtop cradle with an adjustable swivel electrode holder to charge and hold the edge securely in place at the optimum viewing angle
- Large, Easy to Read LCD: edge blu features an LCD that measures 5.5 and is clearly viewable from over 5 meters. Add to that a wide viewing angle of 150 degrees and you have one of the clearest LCDs in the industry. In addition to its large LCD, edge also features full text guides displayed on the bottom of the screen. There is no need to decipher scrambled abbreviations.
- Capacitive Touch: edge blu features sensitive capacitive touch buttons for accurate keystrokes when navigating edges menus and screens. Since they are part of the screen, the buttons can never get clogged with sample residue.
Specifications
- pH Range: -2.000 to 16.000 pH (Standard Mode), -2.00 to 16.00 pH (Basic Mode), +/- 1000 mV
- pH Resolution: 0.001 pH, 0.01 pH, 0.1 mV
- pH Accuracy: +/- 0.2 mV, +/- 0.01 pH, +/- 0.002 pH
- pH Calibration: 5 points (standard mode),1.68, 4.01 (3.00), 6.86, 7.01, 9.18, 10.01, 12.45, and two custom buffers; 3 points (basic mode) 4.01; 6.86; 7.01; 9.18; 10.01
- pH Temperature Compensation: ATC
- pH CAL Check (electrode diagnostics): Yes
- pH Input impedence: Bluetooth pH electrode input
- mV Range: +/- 1000.0 pH in mV
- mV Resolution: 0.1 mV
- mV Accuracy: +/- 0.2 mV
- Temperature Range: -20.0 to 120.0 C
- Temperature Resolution: 0.1 C
- Temperature Accuracy: +/- 0.5 C
- pH Electrode: HI11102 Bluetooth pH electrode (included)
- Temperature Probe: integrated into pH electrode
- Logging Type: Log-on-demand, log-on-stability, and interval logging
- Logging Memory: up to 1000 records; log-on-demand (max. 200 logs); manual log-on-stability (max. 200 logs); interval logging (max. 600 samples; 100 lots)
- Connectivity: 1 micro USB port for charging and PC connectivity, 1 USB port for flash storage
- GLP: Yes
- Calibration Timeout Reminder: Yes
- Autoend: Yes
- Display: segmented LCD
- Battery Type/Life: built-in rechargeable battery with up to 8 hours of continuous use
- Power Supply: 5 VDC adapter (included)
- Environment: 0 to 50 C, RH max 95% non-condensing
- Dimensions: 202 x 140 x 12 mm
- Weight: 250 g
Ordering Information
The HI2202 edge blu includes benchtop docking station with electrode holder, wall mount cradle, USB cable, HI11102 glass body, gel filled pH electrode with temperature sensor, pH 4 buffer solution sachets, pH 7 buffer solution sachets, pH 10 buffer solution sachets, electrode cleaning solution sachets, 5 VDC power adapter, instruction manual and instrument quality certificate.
