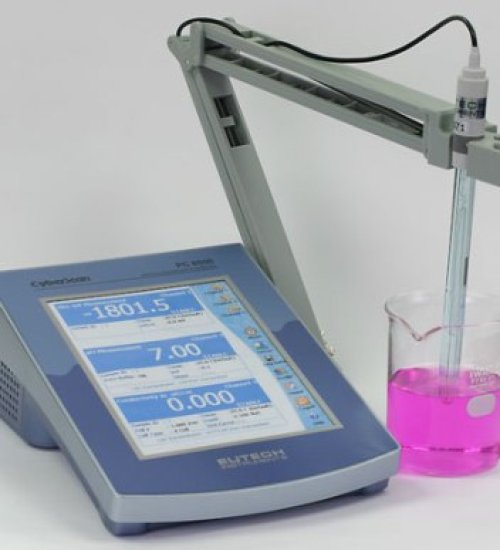

Color Touch Screen CyberScan PC 6500 - 3 channel pH-pH FET-mv-Ion-Conductivity - Resistivity- TDS-Sa - EC-PC6500-43SC
Unfortunately, the EC-PC6500-43SC has been discontinued, check out our other Conductivity, TDS, Salinity Meters for more alternatives.
Color Touch Screen CyberScan PC 6500 - 3 channel pH/pH FET/mv/Ion/Conductivity / Resistivity/ TDS/Salinity RS232, USB, IRDA Meter with pH electrode EC620130, Conductivity electrode EC620165, ATC probe, electrode holder, SMPS power adapter, RS232 cable &
Product Features
Top-of-the-line, research-grade benchmeter
* Extensive selection of measurement parameters with - Two channels of
pH, mV, Ion;
- A channel for the
Conductivity, Resistivity, TDS or Salinity
- A channel for
pH FET input
* Up to three channels measured and displayed simultaneously without cross channel interference.
* Wide pH and mV measurement range: -2.000 to 20.000 pH and 2000.0 mV
* Direct/Indirect, Known Addition/Subtraction and Analate Addition/Subtraction Ion measurement methods in ppm, %, mg/mL and mole/L.
* Single point and Multi-point standardisation for Conductivity, Resistivity, TDS and Salinity measurements using two-cell and four-cell probes. Built-in replatinising circuit.
* Built-in replatinising circuit allows a quick, replatinisation procedure in no more than five minutes.
* Advanced real-time on-screen graphing function provides useful indication for specific measurements such as titration.
* Extensive setup screens enables you to customise the meter to your needs, e.g. Isopotential Point, Temperature Units, Ion Method, ISE Electrode Type, Cell * Constant, Temperature Coefficient, TDS Factor, Alarm Limits and other functions.
* Windows CE-driven, full-color touchscreen provides unmatched ease of use in operations and setups with user-friendly icons, user prompts and context specific help screens.
* Advanced USB, IRDA connectivity allows extensive host/device communication capabilities.
* Ethernet/Internet-ready with RJ45 input for connection to LAN or Internet for quick online research and data sharing.
* Secure log-in for up to ten users
Applications
Laboratory/Industrial: Use for water quality testing, sewage treatment, food processing (for HACCP compliance), geological testing. Great for R&D and QC applications in the food and pharmaceutical industries, paper/pulp processing, chemical industries and related fields. Suitable for most ASTM and EPA test procedures.
Educational: Perfect for research labs, suitable for all types of chemistry labs and ecology studies.
Specifications
Product Specification |
Description |
| pH Range | -2.000 to 20.000 pH |
| Resolution & Accuracy | 0.1/0.01/0.001 pH & 0.002 pH |
| mV Range | 2000.0 mV |
| Conductivity Range | 0 to 500 mS/cm over 4 ranges |
| Resistivity Range | 3 ohm-cm to 100 megohm-cm |
| Salinity Range | 0 to 90 ppt |
| Accuracy | 0.5% full scale + 1 LSD |
| Resolution & Accuracy | 0.1 mV & 0.2 mV |
| Cell Constant | 0.1, 1.0, 10.0 |
| Temperature Range | -5.0 to 105.0 C (Meter) |
| Resolution & Accuracy | 0.1 C & 0.2 C |
| No. of pH Calibration Points | Up to 5 |
| pH Buffer Options | USA: 2, 4, 7, 10, 12
NIST: 1.68, 4.01. 6.86, 9.18, 12.45 Euro: 1, 3, 6, 8, 10, 12 |
| Temperature Compensation | Automatic/Manual (0 to 100 C) |
| pH Slope & Offset Display | Yes |
| Memory | 10,000 Data Sets with Date/Time stamping |
| Programmable data storage/output | On stable, time and manual |
| Print Output | RS232C |
| Print Interval | 3 to 86400 sec |
| Electrode Input | FET (solid-state non-glass) or Glass pH electrode |
| Display | 640x480 digit LCD |
| Operating Temperature | 0 to 50 C |
| Power | 9VDC, 3.3A center negative |
