E-Box LITE - Class 1 dBAir (1/1, 1/3 Octaves) 8 Day Assessment System

ORDER ME IN
Product code: IC-ELITEC1060

Order Me In, once ordered this item will likely dispatch before the 27th of September 2025, call 1300 737 871 (NZ 0800 737 871) to confirm.

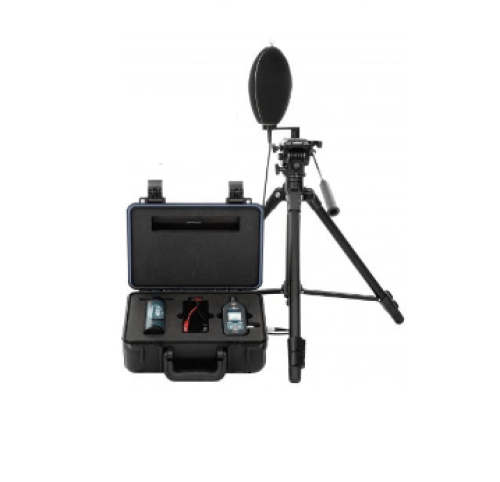

This is a sound datalogging system designed to assess and record environmental noise up to 8 days with Octave testing. Includes the GA141EO dBAir Class Environmental Octave meter, a sound calibrator, weatherproof housing, E-Box LITE for lead acid battery, lithium battery, weatherproof case microphone cable and heavy-duty tripod.

Read more | Need help? 3 Hour Business Reply

$13,149.80 AUD + GST
 $14,464.78 AUD Inc. GST
The Castle dBAir Environmental sound meter comes with predefined Environmental Measurement Templates, keeping all of your setup procedures to an absolute minimum, as well as giving you the extra assurance that you're measuring the correct parameters for your assessment.
The Castle dBAir Environmental Class 1 Sound Meter helps make your noise assessments quick, easy and correct.
Main Applications For The dBAir Environmental Sound Meter are - Hand-held environmental measurements Boundary noise checking, BS4142 checks, Construction noise, Compliance testing
2 Year Warranty (1 Year Manufacturer Warranty + Bonus 1 Year Instrument Choice Warranty)
ELITEC1050 Features
- Data Wirelessly Uploads from the dBAir to the Castle Cloud
- Data can still be downloaded using a cable if required
- Secure Data Storage and Automatic Back-ups
- Simple and slick interface allowing even first time users to capitalise on The Castle Clouds vast features
- Automatic updates mean no downloads ever required.
- Customised Reporting
- Free Calculators
- Free Guides and Help Videos
- Free Instrument Register
Standard package includes:
GA141EO dBAir Environmental Octave (1/1, 1/3) Class 1 , GA611 dBCal 3-level Acoustic Calibrator, Class 1, CCSTD3 Standard Account for Castle Cloud - 10 Users, 10 Instruments (3 Year), MW404A Weatherproof Microphone Housing (Sonik/dBAir), ZL2141-03 Weatherproof Case Microphone Cable for Sonik/dBAir - 3m, KA024 E-Box LITE case for Lithium Batteries - dBAir/ Sonik Meters, KA027LiCHARGER KA027 Lithium Battery Charger 1.65A, KA027LiBATT Lithium Battery 12V 22Ah (E-box), KA020RS E-Box Accessory Rucksack, EBOXMOUNT Integrated Microphone Mounting Kit for E-Box

Specifications

Applicable Standards
IEC 61672-1:2013; IEC 61260-1:2014 (Where Octave Bands Fitted); IEC 61252:1993 amendment 1:2000 (Where Exposure Fitted)
Microphone:
Class 1 - 0.5 Pre-Polarised - Free Field (IEC) Pressure (ANSI) Sensitivity (50mV/Pa)
Noise Floor (Typical):
"A" Weighting < 16.0dB; "C" Weighting < 15.0dB; "Z" Weighting < 25.0dB
Measurement Ranges:
25 to 115dB (LOW); 50 to 140dB (HIGH)
Frequency Weightings:
A, C or Z
Frequency Range:
1 Hz - 20 kHz (electrical characteristics); 10 Hz - 20 kHz (including microphone)
Time Weighting:
Slow, Fast, Impulse
Display:
2.4" Full Colour TFT 240x320 pixels
Dual Measurements:
Simultaneous dual measurement with independent time and frequency weightings.
Measurement parameters:
LSPL, LE, LEQ, LMAX, LMIN, Peak, Ltm3, Ltm5, Lday, Levening, Lnight, Ldn, Lden, NA, 10 user-definable Ln values (pre-set to: L1, L5, L10, L20, L25, L50, L75, L90, L95, L90) plus LAF* for Noise act assessment.
Languages:
English UK, English US, Chinese, French, German, Italian, Portuguese, Brazilian, Russian, Spanish, Dutch, Greek
Time History:
Short Interval 10ms to 60m; Long Interval 1s to 24h; Smart Timer, Duration Timer or Interval Timer
Memory:
16GB
Input / Output Connection:
Micro USB Type B
Batteries:
4 x AA (1.5V)
Battery Life:
Up to 8 Hours continuous operation (screen settings dependent)
Dimensions Including Pre-Amplifier:
210mm (H) x 70mm (W) x 30mm (D)
Dimensions Excluding Pre-Amplifier:
145mm (H) x 70mm (W) x 30mm (D)
