Home > Dual Channel Temperature Probe Logger, Graphic LCD with Temperature Calibration Certificate - IC-EL-GFX-DTP CAL-T
Lascar

Dual Channel Temperature Probe Logger, Graphic LCD with Temperature Calibration Certificate - IC-EL-GFX-DTP CAL-T

ORDER ME IN
Product code: IC-EL-GFX-DTP-CAL-T

Backorder Now, once ordered your item will dispatch before the 12th of June 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).

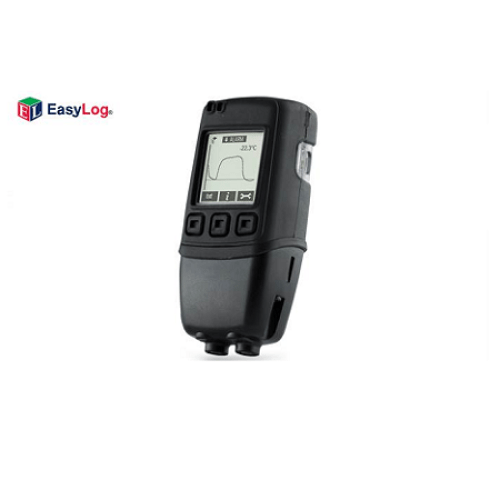

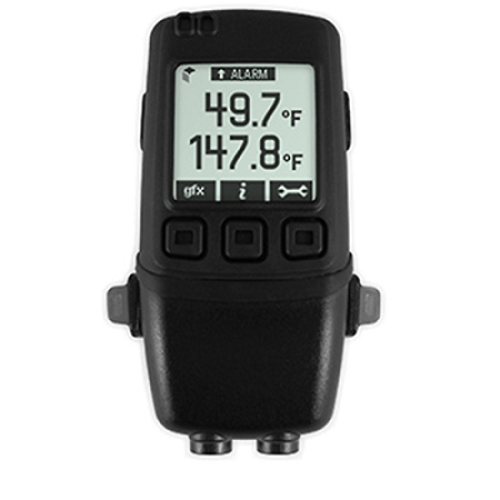

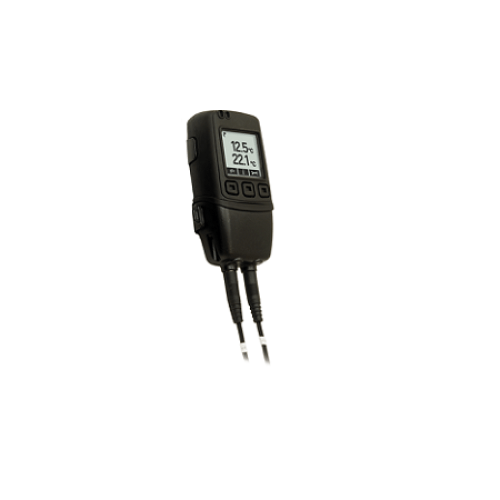

The EL-GFX-DTP is a standalone USB data logger that measures and stores over 250,000 temperature readings from two thermistor probes over a -40 to +125 C (-40 to +257 F) range at a resolution of 0.1 C. Comes supplied with 2 x 1m long thermistor probes and temperature calibration certificate.

Read more

$489.00 AUD + GST
 $537.90 AUD Inc. GST
The data logger features a dot-matrix LCD and three face-buttons to navigate through an on-screen menu. This menu provides the user with access to real-time trend analysis, data summaries and the ability to start, stop and restart the data logger without the need to connect the data logger to the host-PC. Users can reset the maximum/minimum reading using the on-screen menu; this introduces an "event marker" into the data which can later be viewed in the graphing software ("Mark Events" option) and the data file after download.

Using the Windows control software (available as a free download from www.easylogusb.com) the user can quickly set up the logger name, sample rate, alarm settings and start mode (immediate start, push to start, delayed start or temperature/humidity triggered start). This software can later be used to download the stored data which can be graphed, printed and exported to other applications.

Set up and data download of our EasyLog data loggers is enabled by our EL-WIN-USB software. compatible with 32-bit and 64-bit versions of Windows 7, 8 and 10.

INCLUDED IN THE BOX

Battery - x 2 BAT 3V6 1/2AA (typically allow logging for up to 4 months)

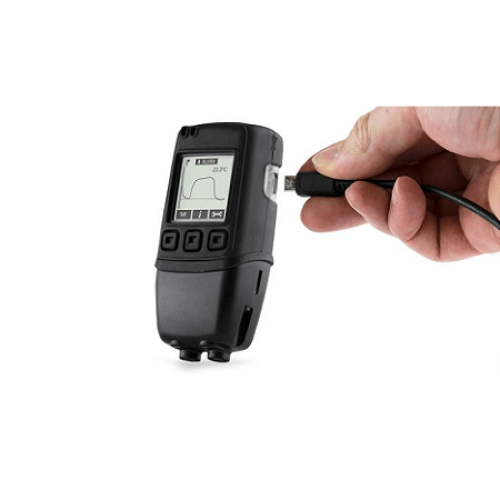

USB cable - CABLE USB A-MICRO B
Magnetic mounting bracket - EL-GFX WALL BRACKET

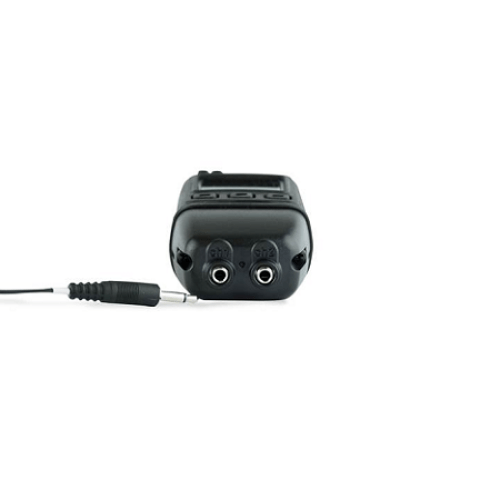

Standard Thermistor probe - x2 EL-PROBE2-1.0M-TP
Features:

* Dual channel -40 to +125C (-40 to +257F) probe measurement range
* Logging rates between 2 seconds and 1 hour
* Immediate, delayed, push-button or temperature triggered start mode
* Graphic LCD shows real-time readings, graph and current status
* Stores over 250,000 readings per channel
* Includes temperature calibration certificate

Specifications



* Supplied probe measurement range: -40 (-40) to +125 (+257) C (F)
* Operating temperature range: -10 (-14) to +40 (+104) C (F)
* Internal resolution: 0.1 (0.2)C (F)
* Accuracy (logger error): +-0.1 (+-0.2) C (F)
* Logging rate: Every 2s/Every 1hr
