Dual Channel Temperature Probe Logger, Graphic LCD - EL-GFX-DTP

ORDER ME IN
Product code: IC-EL-GFX-DTP

Backorder Now, once ordered your item will dispatch before the 26th of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).

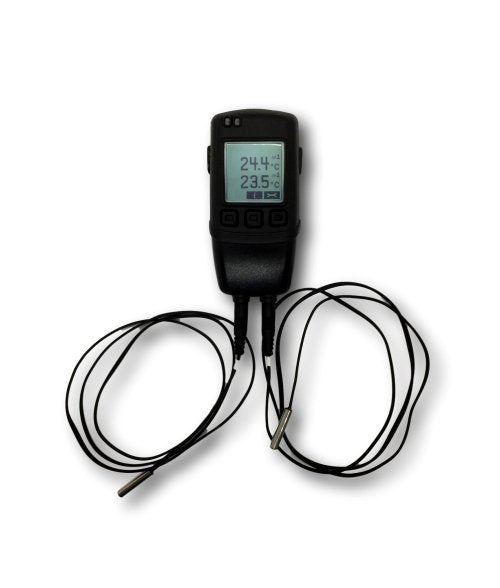

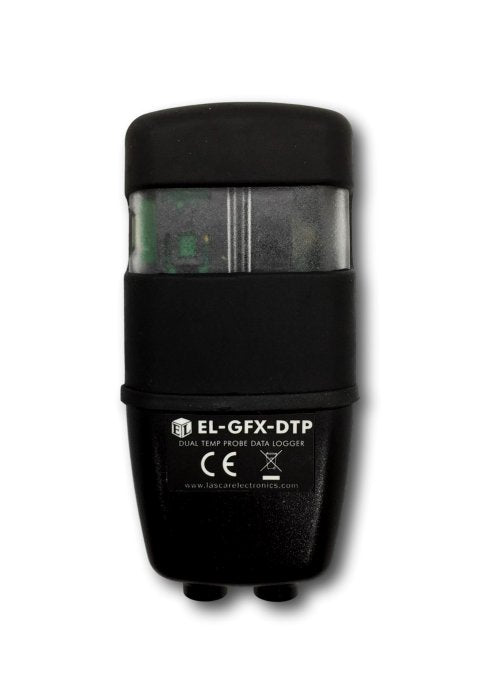

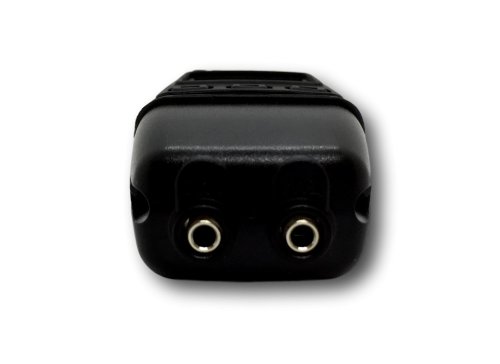

The EL-GFX-DTP is a standalone USB data logger that measures and stores over 250,000 temperature readings from two thermistor probes over a -40 to +125 C (-40 to +257 F) range at a resolution of 0.1 C. Comes supplied with 2 x 1m long thermistor probes.

Read more

$347.00 AUD + GST
 $381.70 AUD Inc. GST

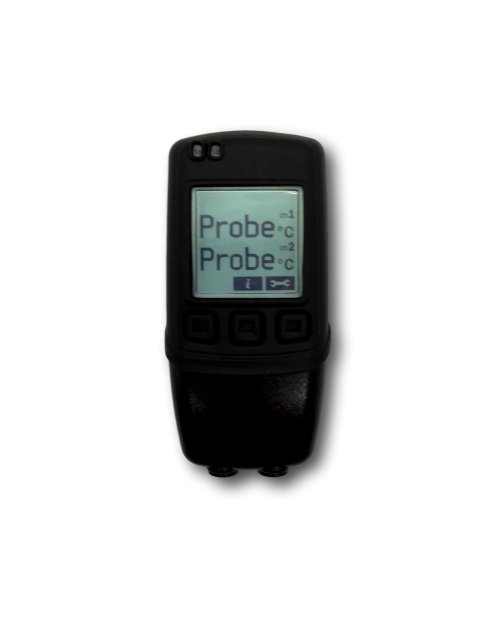

The data logger features a dot-matrix LCD and three face-buttons to navigate through an on-screen menu. This menu provides the user with access to real-time trend analysis, data summaries and the ability to start, stop and restart the data logger without the need to connect the data logger to the host-PC. Users can reset the maximum/minimum reading using the on-screen menu; this introduces an "event marker" into the data which can later be viewed in the graphing software ("Mark Events" option) and the data file after download.

Using the Windows EL-WIN-USB control software (available as a free download) the user can quickly set up the logger name, sample rate, alarm settings and start mode (immediate start, push to start, delayed start or temperature/humidity triggered start). This software can later be used to download the stored data which can be graphed, printed and exported to other applications.

The software is compatible with 32-bit and 64-bit versions of Windows 7, 8 and 10.

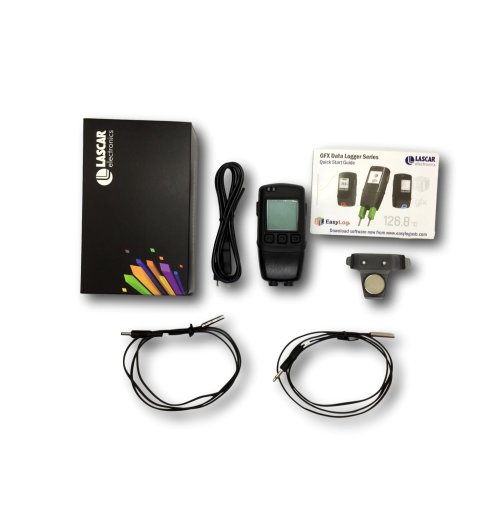

INCLUDED IN THE BOX

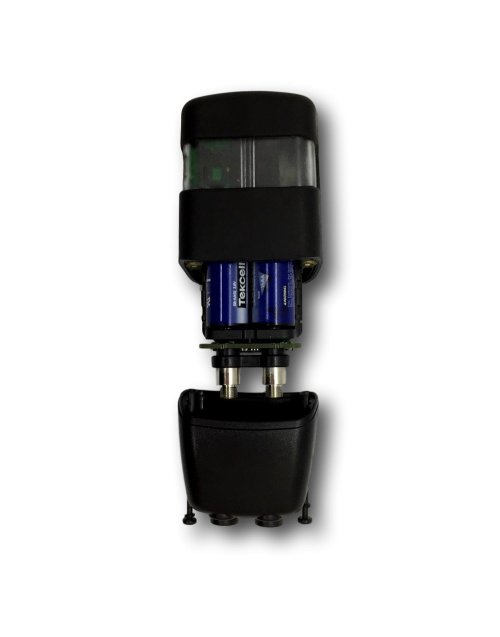

Battery - x 2 BAT 3V6 1/2AA (typically allow logging for up to 4 months)
USB cable - CABLE USB A-MICRO B
Magnetic mounting bracket - EL-GFX WALL BRACKET
Standard Thermistor probe - x2 EL-PROBE2-1.0M-TP
Features:

* Dual channel -40 to +125C (-40 to +257F) probe measurement range
* Logging rates between 2 seconds and 1 hour
* Immediate, delayed, push-button or temperature triggered start mode

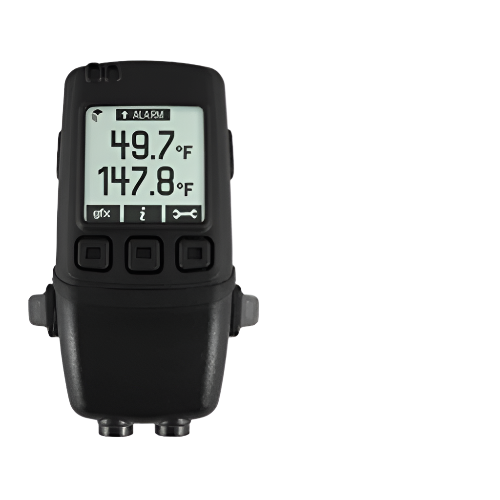

* Graphic LCD shows real-time readings, graph and current status
* Stores over 250,000 readings per channel
* Calibration certificate available

Specifications

:

* Supplied probe measurement range: -40 (-40) to +125 (+257) C (F)
* Operating temperature range: -10 (+14) to +40 (+104) C (F)
* Internal resolution: 0.1 (0.2)C (F)
* Accuracy (logger error): +-0.1 (+-0.2) C (F)
* Logging rate: Every 2s/Every 1hr
