DST milli-T - Data Storage Tag milli Temperature

ORDER ME IN
Product code: DST-milli-T

Backorder Now, once ordered your item will dispatch before the 04th of June 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).

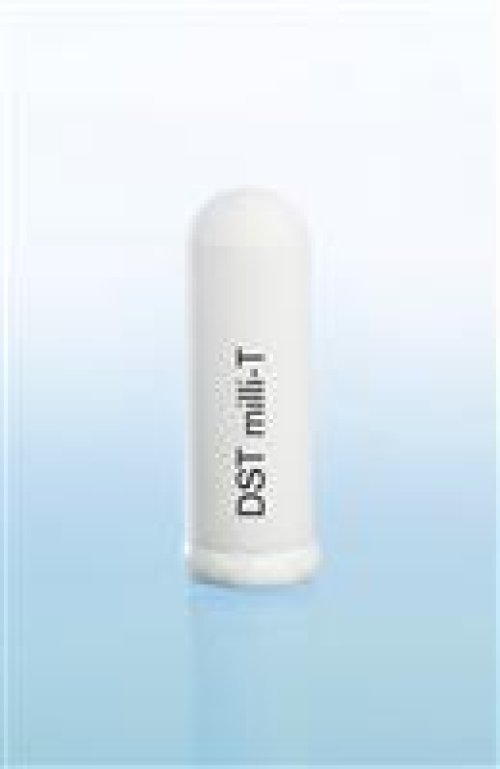

The DST milli-T is a miniature sumbersible data logger that measures and records temperature.
Regular price $780.00 AUD + GST
$858.00 AUD Inc. GST

Overview
Dimensions
(diameter x length): 12.5mm x 38.4mm
Sensor: Temperature
Standard temperature range: -1C to +40C
Temperature accuracy: +/-0.1C
Memory size: 43,000 measurements
Battery life: 5 years
Housing material: Alumina (implantable, biocompatible ceramic material)

Description
The DST milli-T is a miniature sumbersible data logger that measures and records temperature. Recorded data is stored in the loggers internal memory with a real time reference for each measurement.

The DST milli-T is supported by the SeaStar and Mercury softwares and the Communication Box which serves as an interface between the logger and a PC. Communication between the logger and the Communication Box is wireless.

In the software, the user sets the start time, start date and sampling interval before starting the recorder. Up to seven different intervals can be set for the same measurement sequence. This is especially useful when more frequent measurements are needed at a certain time period.

After recovering the DST recorded data is uploaded in the supporting software where results are displayed both in graphic and tabular form. After retrieving the data, the DST can be re-programmed and reused as long as the battery lasts.
A set of Communication Box and SeaStar or Mercury software needs to be purchased with the first order.

Star-Oddi also offers a protective housing for the DST which protects the logger when used in harsh environments and gives more attachment points.

Examples of Application
DST milli-T is ideal for implanting in animals (land or aquatic) for monitoring temperature fluctuations. The tag can also be attached externally in aquatic animals, providing information on preferred environmental temperatures. The DST milli-T can be used as a stand-alone logger for temperature measurements underwater, soil or air. The temperature loggers can for example be attached to moorings, deloyment lines or strings to form a thermistor chain underwater.

The DST milli-T is suitable for studies in e.g.:

  • (Marine) animal tagging
  • Oceanography
  • Limnology
  • Hydrology
  • Ecosystems research
  • Temperature measurements in liquids, vials etc.
  • Pharmaceutical research studies
  • Packaging industry
  • Transportation, tracing temperature conditions of shipments
  • Temperature measurements in air or soil

Technical Specifications

Sensors

Temperature

Size (diameter x length)

12.5 mm x 38.4 mm

Housing material

Alumina (Ceramic)

Weight (in air/in water)

in air: 9.2g in water: 5g

Memory type

Non-volatile EEPROM

Memory capacity bytes

65,375 bytes / temperature 1.5 bytes

Memory extension option

1,048,064 bytes (FLASH memory)

Memory management

Custom programming

Data resolution

12 bits

Temperature resolution

0.032C (0.058F)

Temperature accuracy

+/-0.1C (0.18F)

Temperature range

-1C to +40C (30F to 104F)**

Temperature response time

Time constant (63%) reached in 12 sec.

Pressure tolerance

Up to 900 m (customer defined)

Data retention

25 years

Clock

Real time clock Accuracy +/-1 min/month

Sampling interval

In second(s), minute(s), or hour(s)

Number of different sampling intervals

1 to 7

Communications

Communication box, RS-232C 9 pin serial or USB

Attachment hole

0.9 mm (in diameter)

Corrosive resistance

Oil, water, salt, antifreeze, brake fluid, diesel and gasoline

Battery life

5 years*
* For sampling interval of 10 minutes. ** Outside ranges available upon request Specifications may change without notice.
