DST centi-T - Data Storage Tag centi-Temperature

ORDER ME IN
Product code: DST-centi-T

Backorder Now, once ordered your item will dispatch before the 03rd of June 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).

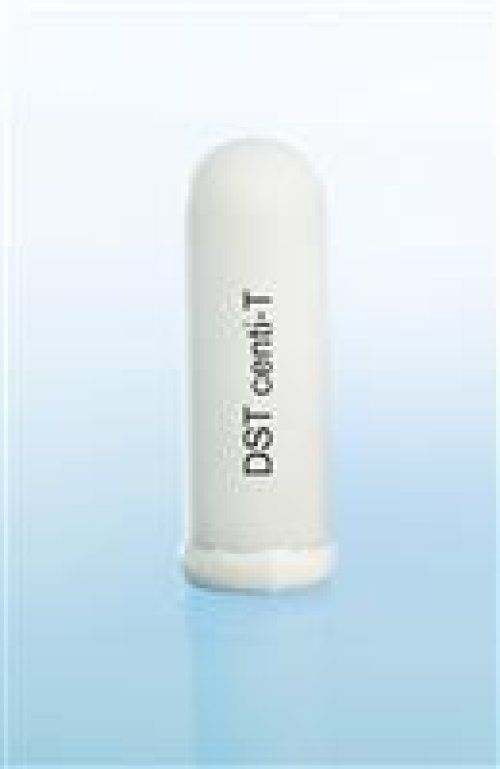

The DST centi-T is a small submersible data logger with a temperature sensor.
Regular price $629.40 AUD + GST
$692.34 AUD Inc. GST

Overview
Dimensions
(diameter x length): 15mm x 46mm
Sensor: Temperature
Standard temperature range: -1C to +40C
Temperature accuracy: +/-0.1C
Memory size: 174,000 measurements (optional 523,800)
Battery life: 7 years
Housing material: Alumina (implantable, biocompatible ceramic material)

Description
The DST centi-T is a small submersible data logger with a temperature sensor. Recorded data is stored in its internal memory with a real-time clock reference for each measurement.

The DST centi-T is supported by the SeaStar software and the Communication Box which serves as an interface between the logger and a PC. Communication between the logger and the Communication Box is wireless.

In SeaStar, the user sets the start time, start date and sampling interval before starting the recorder. Up to seven different intervals can be set for the same measurement sequence. This is especially useful when more frequent measurements are needed at a certain time period.

After recovering the DST recorded data is uploaded via to SeaStar where results are displayed both in graphic and tabular form. After retrieving the data, the DST can be re-programmed and reused as long as the battery lasts.
A set of Communication Box and SeaStar software needs to be purchased with the first order.

Star-Oddi also offers protective logger housings for use at fixed locations or harsh environments.

Examples of Applications
DST centi-T is mostly used as a stand-alone logger for sampling temperature in underwater environments, attached to deployment lines, moorings or other gear. It can also be used for measuring temperature in soil or air. Another usage is measuring temperature values in animals. The DST centi-T can be implanted in animals.

The DST centi-T is suitable for studies in e.g.:

  • Temperature fluctuations in animals
  • Oceanography
  • Marine biology
  • Hydrology
  • Agricultural research projects
  • Aquaculture studies
  • Pharmaceutical research studies
  • Any other field where temperature recording is required.

Technical Specifications

Sensors

Temperature

Size (diameter x length)

15mm x 46mm

Housing material

Alumina (Ceramic)

Weight (in air/in water)

in air: 19g in water: 12g

Memory type

Non-volatile EEPROM

Memory capacity

174,000 measurements

Memory capacity bytes

261,819 bytes / temperature 1.5 bytes

Memory extension option

786,099 bytes (EEPROM memory)

Memory management

Custom programming

Data resolution

12 bits

Temperature resolution

0.032C (0.058F)

Temperature accuracy

+/-0.1C (0.18F)

Temperature range

-1C to +40C (30F to 104F)**

Temperature response time

Time constant (63%) reached in 20 sec.

Pressure tolerance

Up to 3500m (customer specified)

Data retention

25years

Clock

Real time clock Accuracy +/- 1 min/month

Sampling interval

In second(s), minute(s), or hour(s)

Number of different sampling intervals

1 to 7

Communications

Communication Box, RS-232C 9 pin serial or USB

Attachment hole

0.9 mm (in diameter)

Battery life

7 years*
* For sampling interval of 10 minutes. ** Outside ranges available upon request. Specifications may change without notice.
