Field Piece

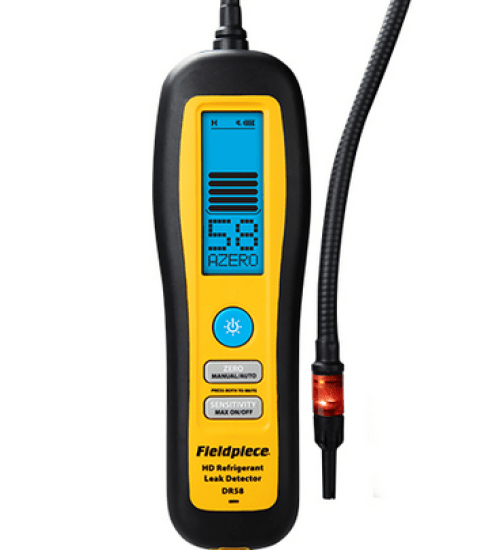

DR58 Heated Diode Refrigerant Leak Detector

1 AVAILABLE
Availability Info (?)

Order now and the extra items will likely dispatch before the 7th Nov 2025. Call 1300 737 871 (NZ 0800 737 871) to confirm.

Product code: DR58

Sensitive, portable and durable heated diode refrigerant leak detector.

-Sensitivity better than 0.03 oz/yr (1g/a).

-Bright, LCD screen with easy-to-see bar graphs and numeric readings.

-Detects all HFC, CFC, HCFC, HFO and blends.

Read more

$569.30 AUD + GST
 $626.23 AUD Inc. GST
Sniffing leaks at less than 0.03 oz/yr (1g/a), the DR58 detects all HFC, CFC, HCFC, HFO and blended refrigerants with superior sensitivity at detecting R410A refrigerant. On the DR58s new, bright backlit LCD screen youll see easy-to-read bar graphs, numeric readings and customizable dual alarms. No more guessing about whats leaking. Also, it can both automatically and manually zero to refrigerant gas concentrations giving you total control.
The DR58 boasts an 18-hour battery life thatll last longer than you will on the job site. Yes, its built to perform. Soap bubble solutions can take several minutes to form visible bubbles and messy UV dyes can take several hours to travel through a running system.
Features:
- Sensitivity better than 0.03 oz/yr (1g/a)
- Bright, LCD screen with easy-to-see bar graphs and numeric readings
- 18-hour USB rechargeable lithium-ion battery
- Detects all HFC, CFC, HCFC, HFO and blends
- Flashing lighted tip, multiple alarms, and numerical leak size indicator
- Dual audible and visual alarms turn the beep on or off when you want
- Manual or automatic zeroing
- Great performance on R410A
- Ruggedized and IP54-certified body

Specifications

- Sensor Type: Heated diode
- Sensor Life: 300 hours typical
- Sensitivity Levels: High, medium, low (selectable)
- Maximum Sensitivity: 0.03 oz/yr (1g/a), stationary; 0.1 oz/yr (3g/a), in motion
- Detection Feedback: Red tip LED, LCD bar graph, LCD digits, beeper
- Refrigerants: HFC, HCFC, CFC, HFOs, and blends
- Response Time: <1 seconds typical
- Recovery Time: <10 seconds typical
- Battery Type: 3.7 VDC (nominal) 2600mAh, non-replaceable
- Charge Time: 6 hours typical with included charger.
- Battery Life: 18 hours typical, backlight off
- Auto Power Off: 10 minutes without detection or button press
- Operating Environment: 32F to 104F (0C to 40C); < 75% RH (non-condensing)
- Storage Temperature: -4F to 140F (-20C to 60C); < 80% RH
- Weight: 14 oz (400g)
- Water Resistance: Designed to IP54
