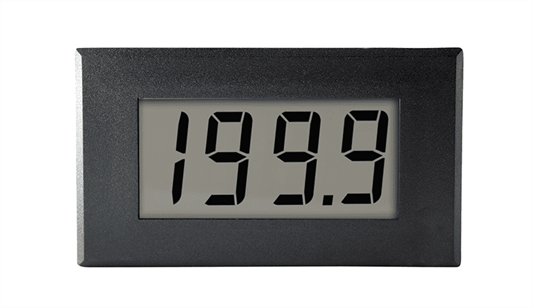

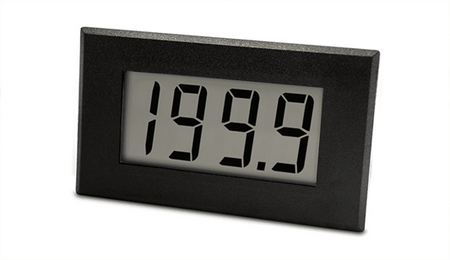

Large 4-20mA Loop Powered LCD Meter with LED Backlighting - DPM 942-BL
Order Me In, Once ordered this item will likely dispatch before the 12th of March 2026, call 1300 737 871 (NZ 0800 737 871) to confirm.

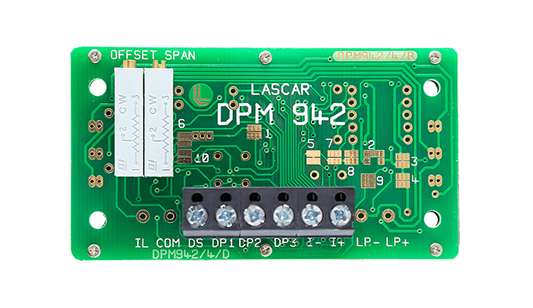

This large loop powered indicator features a 3½ digit LCD with 19mm (0.75″) digit height and LED backlighting. Calibration is by two multi-turn potentiometers and connection to the current loop...
$227.00 AUD Inc. GST
This large loop powered indicator features a 3½ digit LCD with 19mm (0.75″) digit height and LED backlighting. Calibration is by two multi-turn potentiometers and connection to the current loop is via two screw terminals. The DPM 942-BL is a low cost, popular part, normally stocked in high quantity and suitable for new designs.
Specifications
- Accuracy (overall error): 0.05 0.1 % (±1 count)
- Operating temperature: 0 to 50 °C (32 to 122 °F)
- Sample rate: 3 samples/sec
- Loop Volt Drop: 3.9 to 4.8 V d.c.
- Supply Current: 4-20 mA
