Compact 3½ Digit LCD Voltmeter - DPM 2AS-BL
Order Me In, Once ordered this item will likely dispatch before the 13th of March 2026, call 1300 737 871 (NZ 0800 737 871) to confirm.

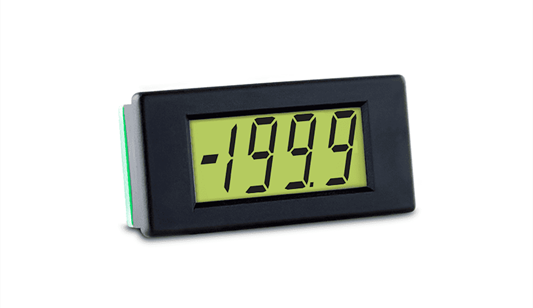

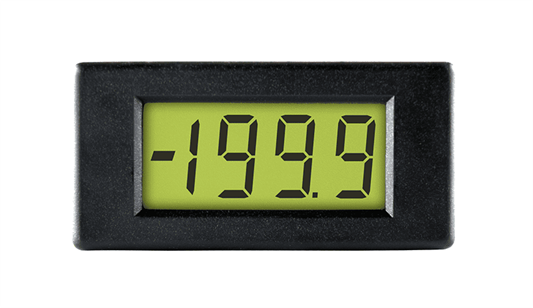

This compact panel meter features a 3½ digit LCD with 8.25mm (0.32″) digit height, one-piece snap-in housing and LED backlighting. With 200mV d.c. full scale reading, auto-zero, auto-polarity and user...
$106.00 AUD Inc. GST
This compact panel meter features a 3½ digit LCD with 8.25mm (0.32″) digit height, one-piece snap-in housing and LED backlighting. With 200mV d.c. full scale reading, auto-zero, auto-polarity and user selectable decimal points, this meter can be used in 3.0 to 7.5V or 6.0 to 15.0V operation.
Specifications
- Accuracy (overall error): 0.1% (typ.) ±1 count
- Operating temperature: 0 to 50 °C (32 to 122 °F)
- Sample rate: 2.5 samples/sec
- Supply voltage (9V mode): (V+ to V-) 6 to 15 V
- Supply voltage (5V mode): (V+ to GND) 3 to 7.5
- Supply current (9V mode): (V+ to V-) 175 μA
- Supply current (5V mode): (V+ to GND) 350 μA
