Checkline

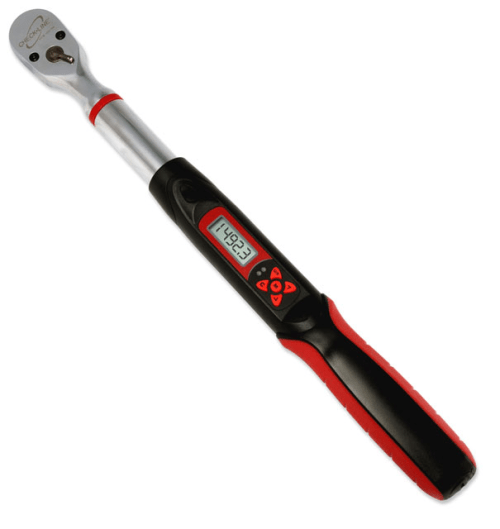

Digital Torque Wrench (145 N-m, 3/8" Drive)

ORDER ME IN
Product code: IC-DTW-1200i

Order Me In, once ordered this item will likely dispatch before the 24th of September 2025, call 1300 737 871 (NZ 0800 737 871) to confirm.

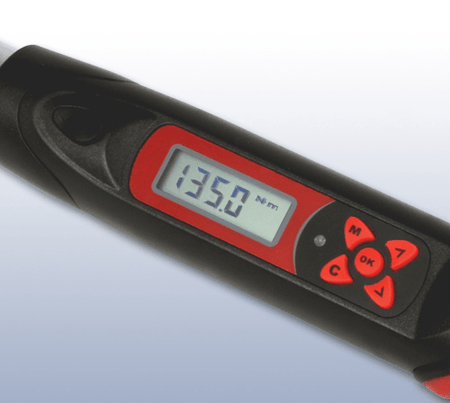

The new Check-Line DTW Electronic Torque Wrenches are designed for simple and precise measurement of industrial, automotive, aerospace and many other applications. The DTW displays Real-Time and Peak torque on a large LCD display in ft-lb, in-lb or N-m, user selectable.

Read more | Need help? 3 Hour Business Reply

$539.58 AUD + GST
 $593.54 AUD Inc. GST
The new Check-Line DTW Electronic Torque Wrenches are designed for simple and precise measurement of industrial, automotive, aerospace and many other applications. The DTW displays Real-Time and Peak torque on a large LCD display in ft-lb, in-lb or N-m, user selectable.
The DTW features a target set point that indicates a desired torque value with a bright LED and audible beep.
2 Year Warranty (1 Year Manufacturer Warranty + Bonus 1 Year Instrument Choice Warranty)
Features:
- Displays in-lbs, ft-lbs & N-m (User selectable)
- CW and CCW operation
- Peak or Real-Time (track) mode (User Selectable)
- Buzzer and LED indicator for the pre-settable target torque
- 50 data point memory
- Auto shutdown after 5 minutes of non use
- Includes Calibration Certificate (Click for sample)
- CE Certified

Specifications


- Accuracy: CW: +/- 2.5% of indicated, CCW: +/- 3.5% of indicated, From 20 - 100% of capacity
- Resolution: 0.1 N-m / 1 in-lb / 0.1 ft-lb
- Sampling Frequency: 500 Hz (500 samples/sec)
- Display Update Rate: 4 Hz (4 times/sec)
- Memory: 50 Readings for recall on display, no output capability
- Operation Mode: Peak hold/ Track
- Unit Selection: ft-lb, in-lb, N-m
- Head Type: Lever type Ratchet
- Gear Teeth: 36
- Battery: 2x AA
- Battery Life: 110 Continuous Hours, 1 Year Standby
- Operating Temperature: -10 C to 60 C
- Storage Temperature:-20 C to 70 C
- Humidity: Up to 90% non-condensing
