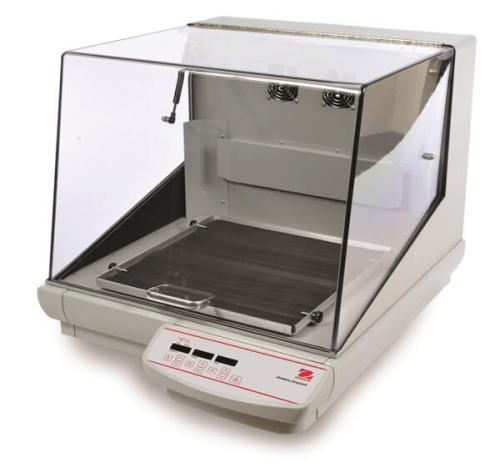

Digital Incubating/Refrigerating Heavy Duty Orbital Shaker - ISHD23CDG

ORDER ME IN
Product code: IC-ISHD23CDG

Incubating heavy duty, orbital shaker. Maximum weight capacity of 22.7 kg at 125 rpm, 4.53 kg at 500 rpm.  15 °C below ambient to 65 °C. Offers exceptional temperature uniformity and are designed for a variety of shaking and incubating applications.

Read more

Features:
- Applications: Cell Cultures, Solubility Studies, Bacterial Suspensions, Extraction Procedures
- Display: Independent LED displays for temperature, speed and time
- Communication: RS232
- Construction: Aluminum and Cycoloy
- Design Features: Temperature calibration feature, overload protection, overshoot protection (temperature), load sensor, PID temperature controller, Triple Eccentric Drive system
Safety Features:
- Overload Protection: Audible and visual signals will activate when system detects an obstruction or overload of the tray.
- Speed Ramping Feature: Slowly increases speed to desired set-point to avoid splashing.
- Audible Alarm: In timed mode, alarm will sound when the time reaches zero.
- Caution Hot Indicator: Symbol illuminates when the temperature of the air in the chamber reaches 40C and remains lit until temperature cools down.
- Spill-Resistant Design: Channels fluids away from internal components.
- Polycarbonate Lid: Clear lid permits viewing of samples without disturbing internal temperature. Opaque lid prohibits light exposure to light sensitive samples.

Specifications

- Motion: Orbital, 25 mm
- Capacity: 22.7 kg at 125 rpm, 4.53 kg at 500 rpm
- Temperature Range: 15C below Ambient 65C
- Uniformity: 0.5C at 37C
- Speed Range: 15 rpm to 500 rpm
- Tray Size (LxW): 457 mm x 457 mm (18 in x 18 in)
- Calibration: Temperature calibration
- Communication: RS232
- Control: Digital
- Dimensions (HxLxW): (596 mm x 815 mm x 675 mm (23.5 in x 32.1 in x 26.6 in)
- Drive System: Triple Eccentric; Brushless DC Motor
- Inner Dimensions (HxHxLxLxWxW): 432 mm x 523 mm x 629 mm (17 in x 20.6 in x 24.8 in)
- Net Weight: 35.9 kg (79.11 lb)
- Power: 120V, 5A, 50/60Hz
- Power Consumption: 800 W
- Safety Certification: TUV
- Speed Accuracy: Above 100rpm +/- 1%, Below 100rpm /- 1 rpm
- Speed Range: 15 rpm to 500 rpm
- Timer: 1 second to 160 hours
- Tray Construction: Aluminum
- Working Environment: 15C to 32C, 80%RH, non-condensing (59F to 90F, 80%RH, non-condensing)
