Digital EC probe for Edge - IC-HI763100
Backorder Now, once ordered your item will dispatch before the 23rd of June 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).

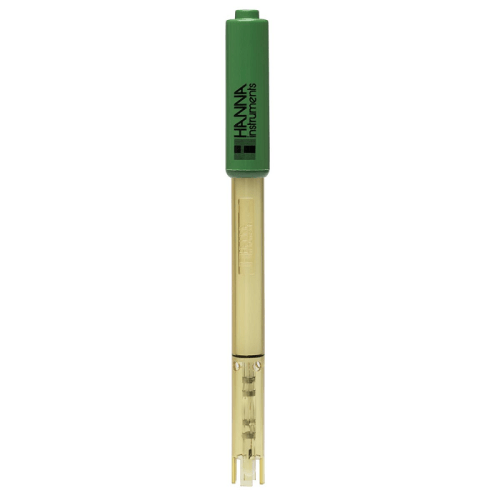

The HI 763100 is a digital conductivity electrode with a built-in temperature sensor.
- The HI 763100 is a potentiometric probe with platinum sensors making it suitable for measuring high or low conductivity ranges.
- Has a builtin microchip that stores calibration data.
- For Hanna Edge pH/EC/DO meters.
Regular price
$827.31 AUD
+ GST
$910.05 AUD Inc. GST
$910.05 AUD Inc. GST
The HI 763100 is a digital conductivity electrode with a built-in temperature sensor. Compared to the amperometric design of other conductivity probes, the HI 763100 is potentiometric probe with platinum sensors which allows for the possibility to measure high or low conductivity ranges using one probe. This electrode features an integrated microchip which stores calibration data, electrode type, and serial number. The HI 763100 is designed for use with Hannas edge pH/EC/DO meter.
The built-in microchip stores sensor type, serial number and calibration information including date, time, offset, slope, probe condition and buffers used. This information is automatically retrieved by edge once the electrode is plugged in. The ability to transfer information allows for hot swapping of probes without having to recalibrate. All pH measurements are performed within the electrode and transferred digitally to the meter. This overcomes any noise issues associated with the traditional high impedance analog measuring system. Electrical noise can be generated from a built in temperature sensor and while working in a humid environment.
The four ring potentiometric measuring system allows measurement of a broad range of samples while minimizing the effects of polarization. The two outer rings apply and alternating voltage and induce a current loop in the solution, while the two inner rings measure the voltage drop induced by the current loops. This allows for a range of readings from very high to very low without changing electrodes.
The probe is surrounded by a chemically resistant plastic sleeve to maintain control external interferences from the sample. It also allows the current loop to be generated in a controlled area.
HI763100 Features
- Digital, microprocessor based - no high impedance signal to the meter
- Potentiometric measuring system- suitable over a wide range of conductivities
- Built-in temperature sensor - no need for an additional temperature probe
- 3.5mm digital plug easy to plug in, no alignment necessary
- PEI body highly durable and well-suited for field applications
Specifications
Measurement Range
|
EC
|
Body Material
|
PEI
|
Tip / Shape
|
Platinum/4-ring
|
Temperature Operating Range
|
-5 to 100C (23 to 212F)
|
Body Length/Overall Length
|
120mm
|
Temperature Sensor
|
yes
|
Cable
|
1 m (3.3')
|
Amplifier
|
no
|
Notes
|
Insulator
|
Compatible Meters
|
edge multiparameter
|
