Digital Dissolved Oxygen Probe for HI98199 - IC-HI764103
Digital Dissolved Oxygen Probe for HI98199 - IC-HI764103
ORDER ME IN
Backorder Now, once ordered your item will dispatch before the 19th of June 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).

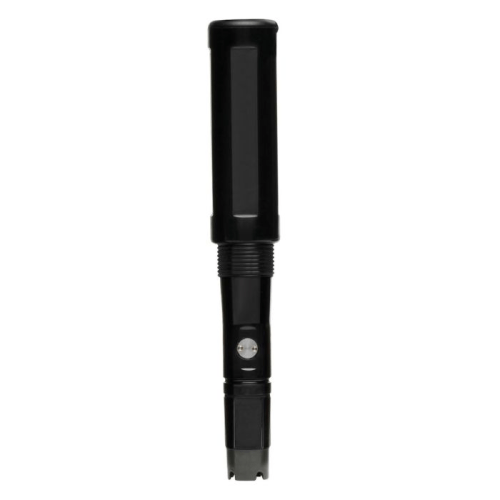

The HI764103 is a digital dissolved oxygen probe with a built-in temperature sensor for the Hanna HI98199 portable meter.
- Contains a built-in microchip that stores sensor type, serial number, and calibration information that is automatically detected by the HI98199.
- Features a silver cathode with a zinc anode, an integrated temperature sensor, and easily replaceable HDPE membrane caps.
- No warm-up time.
Regular price
$691.49 AUD
+ GST
$760.64 AUD Inc. GST
$760.64 AUD Inc. GST
The HI764103 is a digital dissolved oxygen probe with a built-in temperature sensor. This galvanic probe contains a built-in microchip that stores sensor type, serial number, and calibration information that is automatically detected by the HI98199 portable meter. The sensor features a silver cathode with a zinc anode, an integrated temperature sensor, and easily replaceable HDPE membrane caps.
The built-in microchip stores sensor type, serial number and calibration information including date, time, and calibration points. This information is automatically retrieved by HI98199 once the probe is plugged in. The ability to transfer information allows for hot swapping of probes without recalibrating. All DO measurements are performed within the probe and transferred digitally to the meter.
The galvanic technology is a passive from of measurement is that the probe generates a voltage spontaneously based on the dissolved oxygen concentration that passes through the membrane and reacts with the fill solution. There is no warm up time with galvanic probes since the reaction is taken place continuously.
With screw-on caps, the DO HDPE membrane is easy to replace for faster maintenance. There is also a built-in temperature sensor for temperature compensation.
Specifications
Product Name
|
Digital dissolved oxygen probe for HI98199
|
Quote Required
|
No
|
Body Material
|
ABS
|
Temperature Sensor
|
built-in
|
Cable
|
4 meter (13.3')
|
Connector Type
|
quick connect DIN
|
Recommended Use
|
wastewater, water, aquaculture, beverage
|
Notes
|
to only be used with HI98199
|
