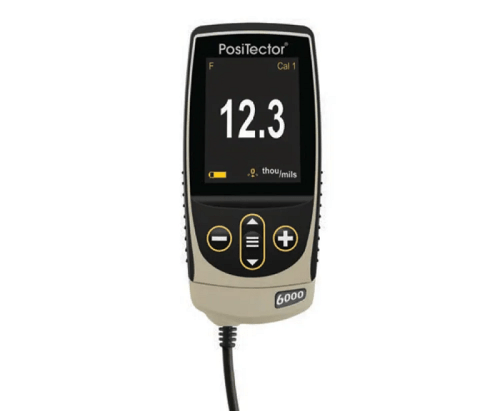

Defelsko PosiTector 6000 F0S3 Advanced Coating Thickness Gauge
ORDER ME IN
Order Me In, Once ordered this item will likely dispatch before the 18th of November 2025, call 1300 737 871 (NZ 0800 737 871) to confirm.
The rugged, fully electronic Advanced PosiTector 6000 Paint Thickness Gage uses magnetic principles to measure paint thickness on ferrous metals accurately and quickly from 0 to 1150 um. With Wifi and Bluetooth technology and increased storage space (up to 250,000 readings).
- Built specifically for measuring on small parts, hard-to-reach areas, or close to edges.
- Easy to operate and provides quick measurements (60+ readings per minute).
- Statistics mode continually displays/updates average, standard deviation, min/max and number of readings while measuring.
Regular price
$2,564.00 AUD
+ GST
$2,820.40 AUD Inc. GST
$2,820.40 AUD Inc. GST
The Defelsko PosiTector 6000 F0S1 Advanced Coating Thickness Gauge has a straight cabled microprobe for small parts or hard to reach areas. Measures coatings on any ferrous metal from 0 to 1150 um.
Includes advanced PosiTector gauge body and F integral probe. Advanced model includes USB for data download, Storage for 250000 readings and touch colour screen. Also Certificate of Calibration showing traceability to NIST or PTB included (Long Form).
Advanced PosiTector meters have Bluetooth, WiFi, and advanced measuring modes (Normal, Statistics and Limited Average Count) depending on the needs of the user.
3 Year Warranty (2 Year Manufacturer Warranty + Bonus 1 Year Instrument Choice Warranty)
F0S3-G Features
- Can be used in any application that involves measuring non-magnetic coatings on steel, iron and other ferrous substrates
- Fast measurement speed60+ readings per minute. Enhanced FAST mode90+ readings per minute for quick inspection
- Ready to measure; no adjustment required for most applications
- Large 2.8 inch impact resistant color screen with redesigned keypad for quick menu navigation
- On-gauge help explains menu items at the touch of a button
- Statistics mode continually displays/updates average, standard deviation, min/max and number of readings while measuring
- Screen Capturesave 100 screen images for record keeping and review
- HiLo alarm audibly and visibly alerts when measurements exceed user-specified limits
- Weatherproof, dustproof, and water-resistant with IP65-rated enclosure
- Storage of 250,000 readings in up to 1,000 batches and sub-batches
- Prompted Batch Mode: create pre-defined batches with on-screen text and image prompts for each reading
- 3 Scan Modes: increase measurement speed to 180+ readings per minute: Normal, Statistics and Limited Average Count
- Touchscreen keyboard for quickly renaming batches, adding notes, and more
- Multiple stored calibration adjustments for measuring on a variety of substrate conditions
- Calibration Adjustment Reporting feature documents calibration adjustments into PosiSoft software reports
- SSPC-PA 2, ISO 19840, and IMO PSPC 90/10 modes help users comply with standards by prompting for min/max specifications, displaying the necessary readings, and automatically calculating statistics with a pass/fail result
- WiFi technology wirelessly synchronizes with PosiSoft.net and downloads software updates
- Bluetooth 4.0 Technology for data transfer to a mobile device running the PosiTector App or optional portable printer. BLE API available for integration into third-party software.
- Integrate with third-party software, drones, ROVs, PLCs, and robotic devices using several industry-standard communication protocols
- Connect a Bluetooth barcode scanner or keyboard to instantly annotate readings and batches
Standard package includes:
Dry Film Thickness Probe, PosiTector Gauge Body (Advanced or Standard, not included with Probe Only), 5 x Plastic shims (25/50/125/250/500um) Protective rubber holster, Wrist strap, 3 AAA Batteries, Instructions, Convenient carrying case, Protective lens shield, Long form certificate of calibration traceable to NIST or PTB, USB cable and PosiSoft software
Specifications
|
Typical Applications
|
Any application that involves measuring non-magnetic coatings on steel, iron and other ferrous substrates
|
|
Measurement Range
|
0 to 1150 um / 0 to 45 mils
|
|
Accuracy
|
+/- (0.5 um + 1%) for 0 to 100 um; +/- (2 um + 3%) more than 100 um; +/- (0.02 mils + 1%) for 0 to 4 mils; +/- (0.1 mils + 3%) for more than 4 mils
|
