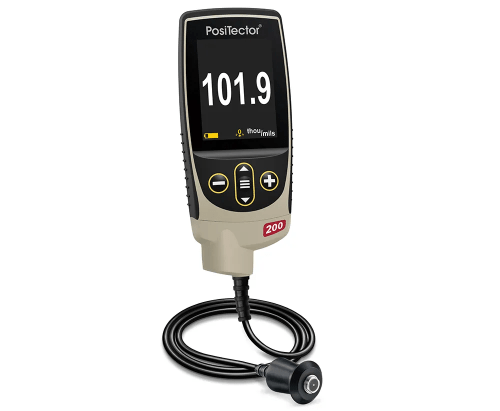

Defelsko PosiTector 200 C1 Standard Coating Thickness Gauge

2 AVAILABLE
Availability Info (?)

Order now and the extra items will likely dispatch before the 4th Oct 2025. Call 1300 737 871 (NZ 0800 737 871) to confirm.

Product code: 200C1-G
The Defelsko PosiTector 200 C1 Standard Coating Thickness Gauge measures the thickness of coatings over non metals including plastic, timber, composites and more.

  • - Non-destructively measures coating thickness over plastic, carbon fibre, timber and more using proven ultrasound technology.
  • - Includes 200C type C probe for measuring coatings on carbon fibre, plastics, plasterboard and other non metals from 50 - 3800 um.
  • - Certificate of Calibration showing traceability to NIST or PTB included (Long Form).

Read more

$4,361.56 AUD + GST
 $4,797.72 AUD Inc. GST
The Defelsko PosiTector 200 C1 Standard Coating Thickness Gauge measures the thickness of coatings over non metals including plastic, timber, composites and more.
Includes Standard PosiTector gauge body and 200 C Ultrasonic cabled probe. 200C type probe for measuring coatings on concrete, fibreglass and other construction materials from 50 - 3800 um
Standard model includes USB for data download, Storage for 1000 readings and colour screen and Certificate of Calibration showing traceability to NIST or PTB included (Long Form).
Measures dry film thickness on non-metal surfaces such as plastic, carbon fibre, composites, timber. Can also measure the thickness of automotive paint over bumbers, plastic and composite panels. Can also be used to measure coatings on plasterboard / drywall and even printed circuit boards (PCBs).
3 Year Warranty (2 Year Manufacturer Warranty + Bonus 1 Year Instrument Choice Warranty)
200C1-G Features
- Continually displays/updates average, standard deviation, min/max and number of readings while measuring
- Max Thick Mode displays the deepest ultrasonic echo eliminating the need to adjust the Lo Rangeideal for ignoring unwanted surface echos
- Ready to measure: no adjustment required for most applications
- Larger 2.8 inch impact resistant color touchscreen with redesigned keypad for quick menu navigation
- Up to 30% longer battery life
- On-gage help explains menu items at the touch of a button
- RESET feature instantly restores factory settings
- Weatherproof, dustproof, and water-resistant with IP65-rated enclosure
- Ergonomic design with durable rubberized grip
- Shock-absorbing protective rubber holster for added impact resistance
- USB port for fast, simple connection to a PC and to supply continuous power. USB cable included.
- Two year warranty on gage body AND probe
- Responsive transducers provide fast, accurate readings
- PosiSoft USB Drivestored readings and graphs can be accessed using universal PC/Mac web browsers or file explorers. No software required.
- Certificate of Calibration showing traceability to NIST or PTB included
- Proven non-destructive technique conforms to ASTM D6132 and ISO 2808
- PosiTector body accepts all PosiTector 200, 6000, DPM, IRT, RTR, SPG, SST, SHD, BHI, and UTG probes easily converting from a coating thickness gage to a dew point meter, surface profile gage, soluble salt tester, hardness tester, or ultrasonic wall thickness gage

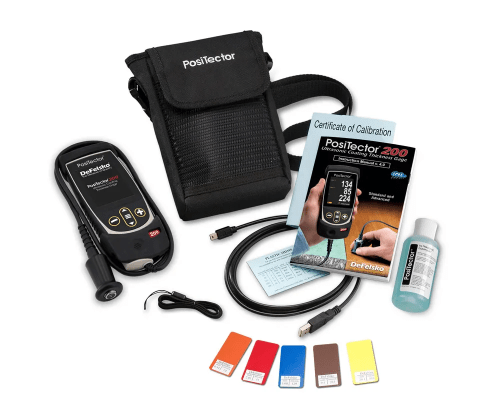

Standard package includes:
Includes meter, ultrasonic gel, precision plastic shims, protective rubber holster, wrist strap, 3 AAA alkaline batteries, instructions, nylon carrying case with shoulder strap, protective lens shield, Long Form Certificate of Calibration traceable to NIST or PTB, USB cable, and PosiSoft Software.


Specifications

Typical Applications
Coatings on concrete, fiberglass, etc.
Measurement Range
50 to 3,800 um / 2 to 150 mils
Coating Thickness
up to 3.8 mm
Accuracy
+/- (2 um + 3% of reading); +/- (0.1mils + 3% of reading)
Minimum Layer Thickness
50 um / 2 mils
