Dc Voltage Data Logger With 10 Year Battery Life -8-24V

ORDER ME IN
Product code: Volt101A-15V

Backorder Now, once ordered your item will dispatch before the 11th of June 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).

Stand Alone, Battery Powered, Low Level, DC Voltage Data Logger with 10 Year Battery Life, -8 to 24 VDC.

Read more

$586.98 AUD + GST
 $645.68 AUD Inc. GST

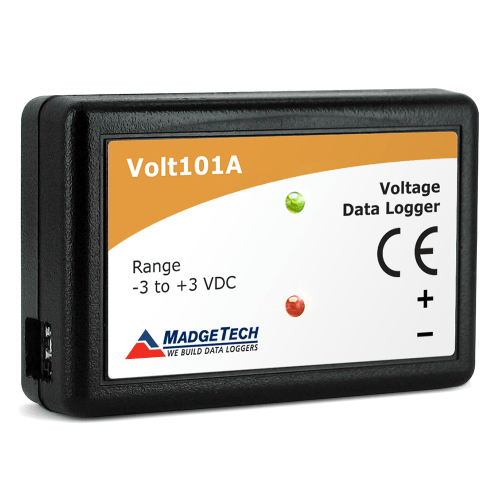

The Volt101A is one of MadgeTechs newest data loggers. It is part of a new series of low cost, state-of-the-art data logging devices. MadgeTech has taken the lead in offering the most advanced, low cost, battery powered data loggers in the world today.

The Volt101A offers a 10 year battery life, 4Hz reading rate, a multiple start/stop function, ultra-high speed download capability, 1 million reading storage capacity, optional memory wrap, battery life indicator, optional password protection, programmable high-low alarms and more.

Using the MadgeTech Software, starting, stopping and downloading from the Volt101A is simple and easy. Graphical, tabular and summary data is provided for analysis and data can in multiple units , using the Engineering Units function. The data can also be automatically exported to Excel for further calculations.

As the leader in low power data logger technology, MadgeTech continuously improves its products and develops solutions to meet ever-changing challenges. The Volt101A was designed with our customers in mind. MadgeTech offers free firmware upgrades for the life of the product so that data loggers already deployed in the field can grow with new technological developments. Units do not need to be returned to the factory for upgrades. The user can do this automatically from any PC.

Download Software and Cable
This unit requires the IFC200 for using the data logger

 Specifications

Voltage

Voltage Range

 -8 to 24VDC

Voltage Resolution

 -8 to 24VDC: 0.5mVDC

Voltage Calibrated Accuracy

 0.05%


General

Memory

 2,064,384 readings

Reading Rate

 4 readings every second to 1 every 24 hours

Baud Rate

 115,200

LED Indicators

 Red & Green

Battery Life

 10 years typical at a 15 minute reading rate

Material

 ABS plastic

Dimensions

 1.4" x 2.5" x 0.6" (36mm x 64mm x 16mm)

Operating Environment

 -40~+80C, 0~95%RH non-condensing

Required Interface Package

 IFC200

Approvals

 CE


Product Tables

Model

 -8 to 24V

Range

 -8 to 24 VDC

Accuracy

0.05%

Resolution

 0.5mVDC
