dBAir Environmental System 1/3 Octaves - Class 1 - IC-NK106

ORDER ME IN
Product code: IC-NK106

Backorder Now, once ordered your item will dispatch before the 12th of June 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).

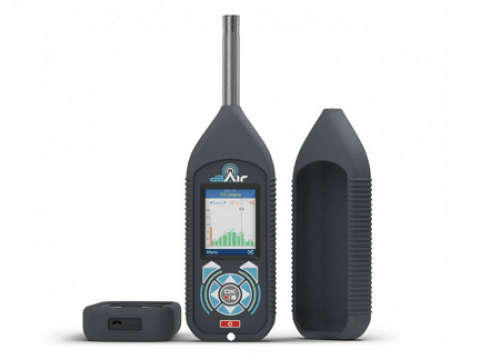

For high accuracy handheld outdoor assessments, employ this 1/3 Octave Band Analysis dBAir Environmental Assessment System. With a Class 1 Microphone and wireless data transfer, your highly accurate measurements will be waiting for you in your Castle Cloud Software account as soon as you log in.

Read more

$7,689.50 AUD + GST
 $8,458.45 AUD Inc. GST
For high accuracy handheld outdoor assessments, employ this 1/3 Octave Band Analysis dBAir Environmental Assessment System. With a Class 1 Microphone and wireless data transfer, your highly accurate measurements will be waiting for you in your Castle Cloud Software account as soon as you log in. Dedicated measurement templates come as a standard in this system, providing you with extra reassurance that your assessments are on point.
Features:
- Hand-held environmental measurements
- Tonal Noise Assessment to 1/3 Octave
- Boundary noise checking
- BS4142 checks
- Construction noise
- Compliance testing
- Includes GA607 Class 1 Acoustic Calibrator
The Castle Cloud
The Castle dBAir uses the revolutionary new Castle Cloud Software. Hosted online, all you need to access it's entire software capabilities is an internet browser.
- Data Wirelessly Uploads from the dBAir to the Castle Cloud
- Data can still be downloaded using a cable if required
- Secure Data Storage and Automatic Back-ups
- Simple and slick interface allowing even first time users to capitalise on The Castle Cloud's vast features
- Automatic updates mean no downloads ever required.

Specifications

- Applicable Standards: IEC 61672-1:2013 IEC 61260-1:2014 (Where Octave Bands Fitted) IEC 61252:1993 amendment 1:2000 (Where Exposure Fitted)
- Microphone: Class 1:Type 1 Pre-Polarised one-half inch, (50mV/Pa) Condenser Microphone -26 dB +/- 2 dB re 1V/Pa
- Measurement Ranges: Linear Operating Range: 95dB
- Noise Floor: Typical "A" Weighting Frequency Weightings Measurement 1: A, C or Z Measurement 2: A, C or Z
- Frequency Range: 1 Hz - 20 kHz (electrical characteristics) Class 1: 12.5 Hz - 20 kHz (including microphone) Class 2: 16Hz - 16kHz (including microphone)
- Time Weighting: Measurement 1: Slow, Fast, Impulse Measurement 2: Slow, Fast, Impulse
- Display: 2.4 inch Full Colour TFT 240x320 pixels
- Dual Measurements: Simultaneous dual measurement with independent time and frequency weightings
- Octave Band Analysis: Where fitted 1/1 or 1/3 octave band analysis on measurement 1 only.
- Measurement parameters: LSPL, LE, LEQ, LMAX, LMIN, Peak, Ltm3, Ltm5, Lday, Lnight, Ldn, Lden, NA, 10 user-definable Ln values (pre-set to: L1, L2, L5, L10, L50, L90, L95, L98, L99) plus LAF* for Noise act assessment. 1/1 or 1/3 Octaves: LSPL, LE, LEQ, LMAX, LMAX, Ln's, Peak. 1/3 Octaves.
Includes:
- GA141EO dBAir Environmental Octave (1/1, 1/3) Class 1
- GA611 dBCal 3-level Acoustic Calibrator
- CCPRO3 Pro Account for Castle Cloud - 5 Users, 5 Instruments (3 Year)
- KA017 Protective System Carry Case (dBAir)
- dB001 dBAir Rubber Case
