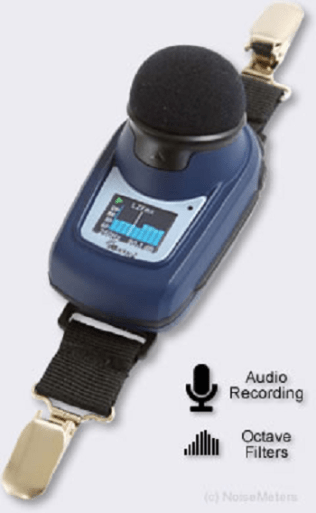

Dbadge2Pro, Handbook, Download Utility And Airwave App
Order Me In, Once ordered this item will likely dispatch before the 21st of November 2025, call 1300 737 871 (NZ 0800 737 871) to confirm.
$5,775.00 AUD Inc. GST
Transmit sound level measurements through Bluetooth® 4.0 wireless connectivity to increase productivity—no need to stop working to download readings! Dose, status, level alerts and more can be accessed through the free Airwave™ app and sent directly to your Apple or Android enabled device. The dBadge2 noise dosimeters capture every possible noise exposure related parameter in a single measurement run, and make it available for subsequent download and analysis. Email summary data, photographs, and even notes for review or inclusion in reports.
Ensure the correct hearing protection is chosen for each application and location. The measurements taken are in accordance with CFR 1910.95, ISO 9612:2009, and UK Guidance document L108. The LCD displays current noise levels in color-coded format for easy interpretation of alarm conditions at a glance. Use the preset alarm limits to adhere to OSHA, ISO, MSHA, and ACGIH guidelines, or set your own.
Each personal noise dosimeter comes with two mounting clips, one at the top and one at the bottom, for secure shoulder attachment and features a reliable and robust 1/2" diameter microphone with windscreen. Order a kit to get started and add additional units as needed to cover an entire fleet!
Features
- Bluetooth 4.0 wireless connectivity
- Audio Notes feature - The dBadge2 PLUS can record up to 15 seconds of voice notes at the start of the measurement.
- Audio Recording - Automatic recording trigger and user settings.
- Airwave App for mobile devices such as phones and tablets
- Octave band filters - Octave Bands split the audible spectrum into bands to provide frequency analysis. Ideal for very high level sounds or tonal noise.
- Multiple 'simulated' dosimeters
- Full colour display
- Motion sensor
- 1 second time history profiling
- Pause function
- Recording of audio events (optional)
- Octave band frequency analysis (optional)
- Updated & Simplified Casella Insight Plug-in with advanced noise analysis features
Specifications
Acoustic:
- Standards: ANSI S1.25:1991 R2007, IEC 61252 Ed 1.1 (2002-3)
- Linear Operating Range: 55 to 140.3 dB(A) RMS
- Dynamic Range: 96dB
- Peak Measurement Range: 90 to 143.3 dB (C or Z weighted)
- Sound Exposure Range: 0.0- 6,100.0 PaHours/ 0.00 22,000,000.00 PaSec/0.0-100,000.0% Dose
- Frequency Weightings: A, C and Z
- Time Weightings: Fast, Slow and Impulse
- Exchange Rate: Q=3 or Q=5
- Threshold: 70 to 90 dB in 1 dB steps (set using Insight software)
- Criterion Level: 70 to 90 dB in 1 dB steps (set using Insight software)
- Stabilization Time: <3 seconds after power up
Audio recording:
- Trigger events/sources: LAF, LAS, LCpk, LZpk
- Audio recording storage (Notes): 15 seconds for each measurement run
- Audio recording storage (Events): 10 seconds with 3 second pre-trigger
- Sampling Rate: 8kHz, 16bit
Octave band filters:
- Each parameter stored every second: TWA (8hr), Projected TWA (8hr), LAeq, LCeq, LCpk, LZpk, LAFmax, LASmax, Motion Index (0 or 1)
- Bands: 31.5Hz to 8kHz/A or Z weighted Leq and LMax (Fast or Slow)
Memory:
- Maximum Run Duration: 24 hours
- Maximum number of Runs: 100
- Storage Capacity: Internal USD Flash memory - 300 hours of run data (including 1 second profile data)
Technical:
- Battery: Internal NiMH, 800mAH (last up to 35 hours)
- PC Interface: USB 2.0 Full speed 12Mbps via Docking Station
- Bluetooth Connectivity: Bluetooth 4.0 (Low Energy or Smart)a
- TX Power: 0 dBm to -23 dBm
- Receiver sensitivity: -93 dBm
- Range: Typically 25m line-of-sight
- Display: 96 x 64 dots, full color OLED with adjustable contrast
- User Controls: Two buttons. Remote control via Airwave application
