Cyanide Half-Cell Ion Selective Electrode, Solid State

ORDER ME IN
Product code: IC-HI4009

Backorder Now, once ordered your item will dispatch before the 06th of June 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).

The HI4009 is a solid state, half-cell ion selective electrode (ISE) for the determination of cyanide (CN-) in solution. It is ideal for a variety of applications in plating, wastewater, and agriculture.

  • - Solid state sensor
  • - Detection from 0.026 to 260 mg/L CN-
  • - For use with HI5315 reference half-cell

Read more

$1,347.99 AUD + GST
 $1,482.79 AUD Inc. GST

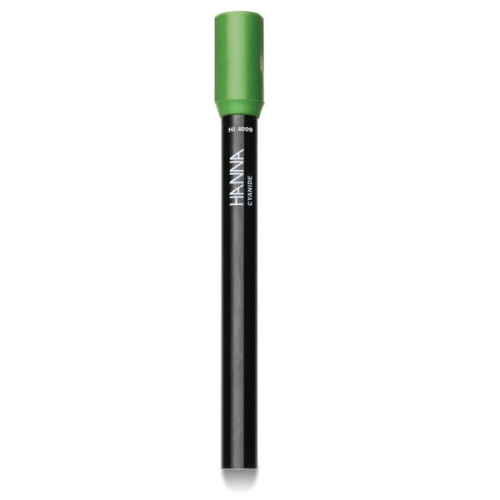

The HI4009 cyanide selective electrode is a potentiometric half-cell sensor housed within an epoxy body. The internal elements are isolated from the sample by a compressed silver halide sensing membrane. This solid state sensor requires a separate reference electrode to complete the measurement system.
Hannas solid state half-cell ISEs are designed for use with the HI5315 reference half-cell. The reference half-cell features a cone style junction. The skirted cone geometry of the reference forms the liquid junction with the test solution at the tip of the junction cone, producing a highly stable reference potential and consistent flow rates of electrolyte into the solution. A simple press of the top portion of the ISE makes it easy to empty the electrolyte fill solution and replace when necessary.
For the HI4009 to measure cyanide accurately, it is important that the ionic strength of the standards and sample be adjusted to a high and constant value with the cyanide ionic strength adjuster (ISA) solution. The alkaline ISA ensures that the activity coefficient is constant so the concentration of free cyanide ions can be measured. Measuring all solutions with a constant ionic strength reduces the margin of error between measurements. The HI4009 cyanide solid state ISE can measure from 1M (0.026 mg/L) to 0.01M (260 mg/L).
HI4009 Features
- Fixed Sensing Modules - Solid state half-cell ISEs are electrodes that detect free ions in a solution. The highly insoluble, compressed sensing pellet is attached to the HI4009 cyanide half-cell by a fixed sensing module for ease of use.
- Durable Epoxy Body - The probe body of the cyanide half-cell ISE is composed of durable epoxy resin.
- BNC Connection - The HI4009 has a universal BNC connector for easy connection to any benchtop meter with a female BNC probe input.

Specifications

Description
solid state; half-cell
Measurement Range
Cyanide (CN-) 0.01M to 110-6M, 260 to 0.026 mg/L (ppm)
Temperature Range
0 to 80 C
Body Material
epoxy
Optimum pH Range
> pH 11
Body Length/Overall Length
120 mm
Outer Diameter
12 mm
Cable
coaxial; 1 m (3.3)
Connector Type
BNC
Notes
Approximate Slope -56 mV
