Cupric Half-Cell Ion Selective Electrode, Solid State - IC-HI4008

ORDER ME IN
Product code: IC-HI4008

Backorder Now, once ordered your item will dispatch before the 06th of June 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).

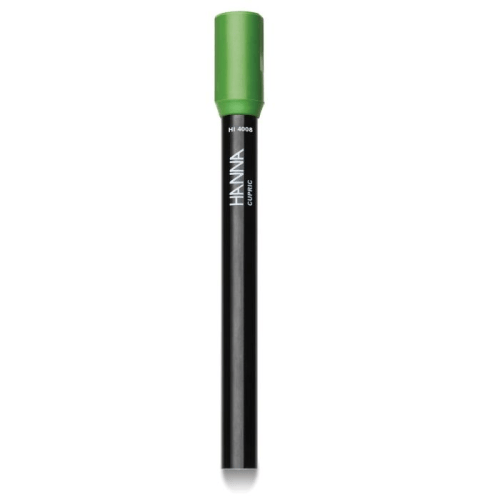

The HI4008 is a solid state, half-cell ion selective electrode (ISE) for the determination of cupric ions (Cu2+) in solution. It is ideal for a variety of applications in plating, wastewater, and industrial processes.

  • - Solid state sensor
  • - Detection from 0.065 to 6,355 mg/L Cu2+
  • - For use with HI5315 reference half-cell

Read more

$1,759.59 AUD + GST
 $1,935.55 AUD Inc. GST
The HI4008 cupric ion selective electrode is a potentiometric half-cell sensor housed within an epoxy body. The internal elements are isolated from the sample by a compressed cupric sulfide/silver sulfide sensing membrane. This solid state sensor requires a separate reference electrode to complete the measurement system.
Hannas solid state half-cell ISEs are designed for use with the HI5315 reference half-cell. The reference half-cell features a cone style junction. The skirted cone geometry of the reference forms the liquid junction with the test solution at the tip of the junction cone, producing a highly stable reference potential and consistent flow rates of electrolyte into the solution. A simple press of the top portion of the ISE makes it easy to empty the electrolyte fill solution and replace when necessary.
For the HI4008 to measure cupric ions accurately, it is important that the ionic strength of the standards and sample be adjusted to a high and constant value with the HI4000-00 ionic strength adjuster (ISA) solution. The ISA ensures that the activity coefficient is constant so the concentration of free cupric ions can be measured. Measuring all solutions with a constant ionic strength reduces the margin of error between measurements. The HI4008 cupric solid state ISE can measure from 1M (0.065 mg/L) to 0.1M (6,355 mg/L).
HI4008 Features
- Fixed Sensing Modules - Solid state half-cell ISEs are electrodes that detect free ions in a solution. The highly insoluble, compressed sensing pellet is attached to the HI4008 cupric half-cell by a fixed sensing module for ease of use.
- Durable Epoxy Body - The probe body of the cupric half-cell ISE is composed of durable epoxy resin.
- BNC Connection - The HI4008 has a universal BNC connector for easy connection to any benchtop meter with a female BNC probe input.

Specifications

Description
solid state; half-cell
Measurement Range
Curpic (Cu2+) 0.1M to 110-6M, 6,355 to 0.065 mg/L (ppm)
Temperature Range
0 to 80 C
Body Material
epoxy
Optimum pH Range
pH 3 to 7
Body Length/Overall Length
120 mm
Outer Diameter
12 mm
Cable
coaxial; 1 m (3.3)
Connector Type
BNC
Notes
Approximate Slope +27 mV
