USB Charge Conditioner - IC-USBCC

3 AVAILABLE
Availability Info (?)

Order now and the extra items will likely dispatch before the 10th Oct 2025. Call 1300 737 871 (NZ 0800 737 871) to confirm.

Product code: IC-USBCC

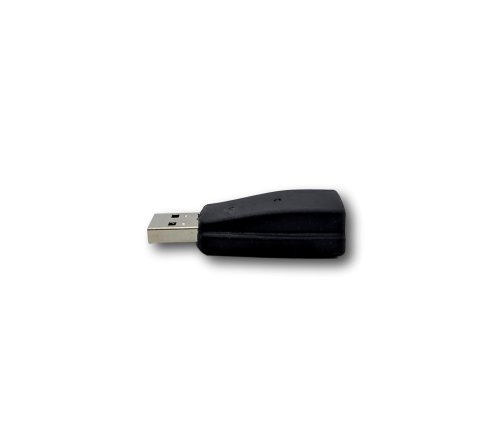

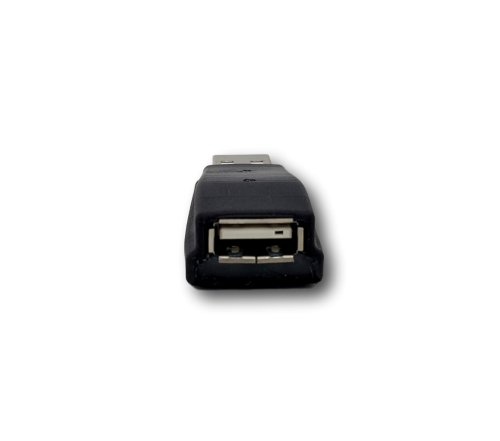

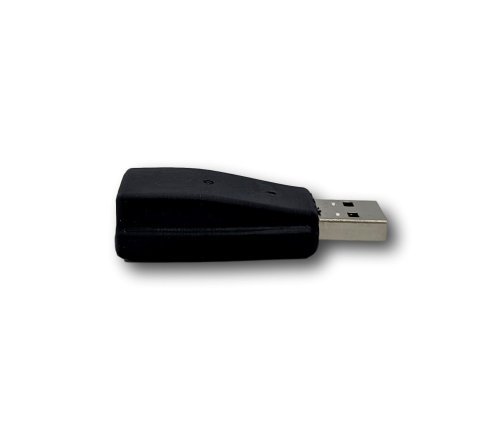

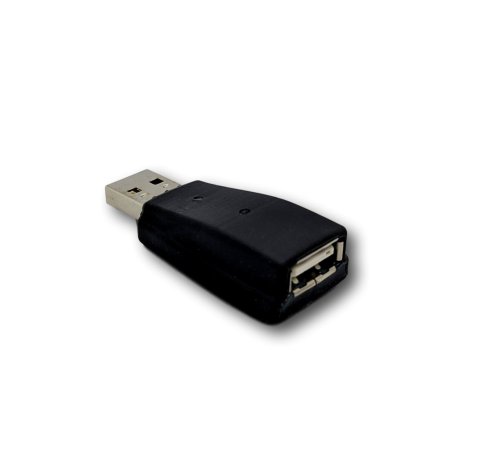

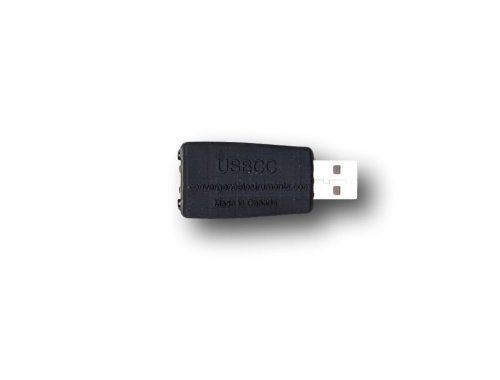

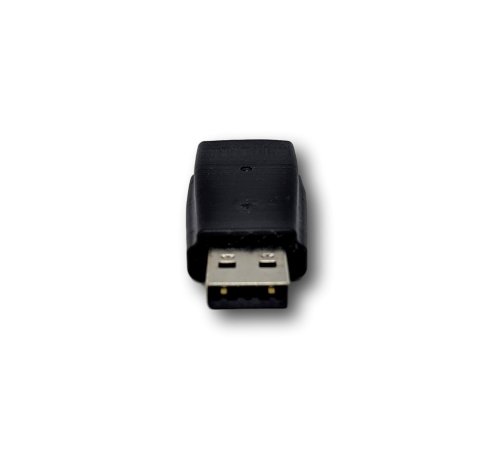

USB Charge Conditioner connects in-line between the output of the USB power source and the USB cable going to the instrument. It should be connected as close to the instrument as possible.

Read more

$129.00 AUD + GST
 $141.90 AUD Inc. GST

Functions:

- USB VBus Conditioning: Opens the VBus connection in case VBus is below the 4.5 USB-specified minimum.
- USB VBus Overvoltage Protection: Opens the VBus connection in case VBus is above 6V.
- USB VBus Reverse Voltage Protection: Opens the VBus connection in case VBus is negative.
- USB Signaling Pair Transient Suppression: Clamps USB pair transients to ground.
Applications:
- USB Charge Conditioner may be very useful in any circumstance where an RT-series instrument is connected to a questionable USB charger, including home-made USB charge sources. It will protect the instrument against VBus over-voltage as well as reverse-voltage.
- USB Charge Conditioner may be very useful in circumstances where the instrument is charged over a long stretch of USB cable, especially outdoors. It will protect the USB pair against high-voltage transients.

Specifications

- Over-Voltage Protection Limits: 6V to 40V
- Under-Voltage Protection Limits: 0V to 4.2V
- Reverse Voltage Protection Limits: 0V to -40V
- Max Protection Delay: 2 us
- USB-Pair Transient Suppression: IEC61000-4-2 Direct Discharge: 8 kV, IEC61000-4-2 Air Discharge: 15 kV, ESD - Pulse Withstand: >1000
- Max Supply Current: 250 uA
