Checkline

Combination Contact & Non-Contact Tachometer - IC-DT-205LR

ORDER ME IN
Product code: IC-DT-205LR

Order Me In, Once ordered this item will likely dispatch before the 28th of January 2026, call 1300 737 871 (NZ 0800 737 871) to confirm.

Combination contact and Non-contact tachometer with LCD display and 6" circumference measuring wheel.

Read more

$779.16 AUD + GST
 $857.08 AUD Inc. GST

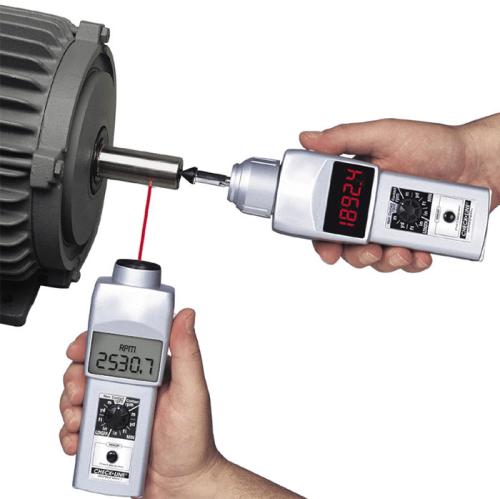

The DT-205LR combine the best features found in both contact and non-contact tachometers for the accurate measurement of rpm, surface speed and length. The screw-in contact adapter makes it quick & easy to convert from non-contact to contact operation.
Features
- Includes NIST Traceable calibration Certificate
- High-precision laser measures from distances up to 14 feet
- LCD Version for use in sunlight and for longest battery life
- Includes 6" circumference surface speed wheel
- Built-in memory for last, maximum, minimum and 10 separate readings
- NSN: 6680-01-378-6490

Specifications

- Measuring Range (Non-Contact): 6 to 99,999 rpm
- Measuring Range (Contact): 0.8 to 25,000 rpm
- Accuracy: 6 to 8,299 rpm: +/- 1 rpm/8,300 to 24,999 rpm: +/- 2 rpm/25,000 to 99,999 rpm: +/- 6 rpm, max.
- Resolution (Non-Contact Mode): 1 RPM
- Resolution (Contact Mode): 0.1 RPM
- Display: LCD, 5 digit 0.47" (12mm) high
- Measurement Units (per minute): Revolutions, Inches, Feet, Yards, Meters
- Measurement Units (Total): Revolutions, Inches, Feet, Yards, Centimeter, Meters
- Measuring Distance: 14 feet (4.2 m) maximum
- Detection: Laser Diode, Class II
- Memory: 13 readings are stored in memory and retained for 5 minutes (last, max., min., and 10 measurements)
- Over-Range Indicator: Flashing numerals
- Update Time: 1 second (typical)
- Batteries: 2 - 1.5 V AA
- Battery Life: Approx 40 hrs
- Low Voltage Indicator: Flashing "LO BAT" display
- Operating Temp: 32 to 113 F (0 to 45 C)
- Construction: Die-cast aluminum housing
- Weight: 0.8 pounds (365 grams)
- Dimensions: 6.6" L x 2.4" W x 1.8" H (167mm x 61mm x 45.7)
