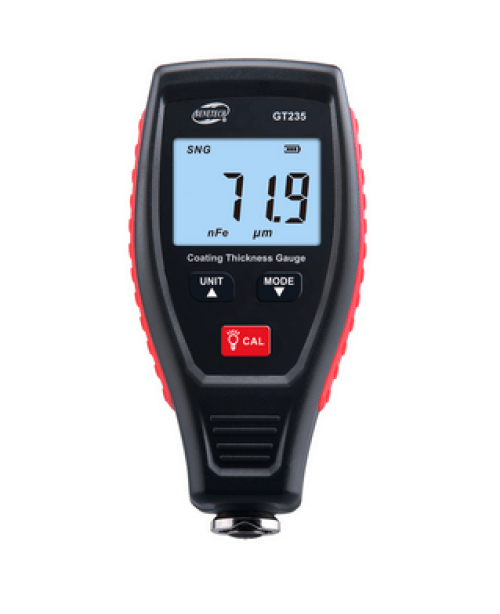

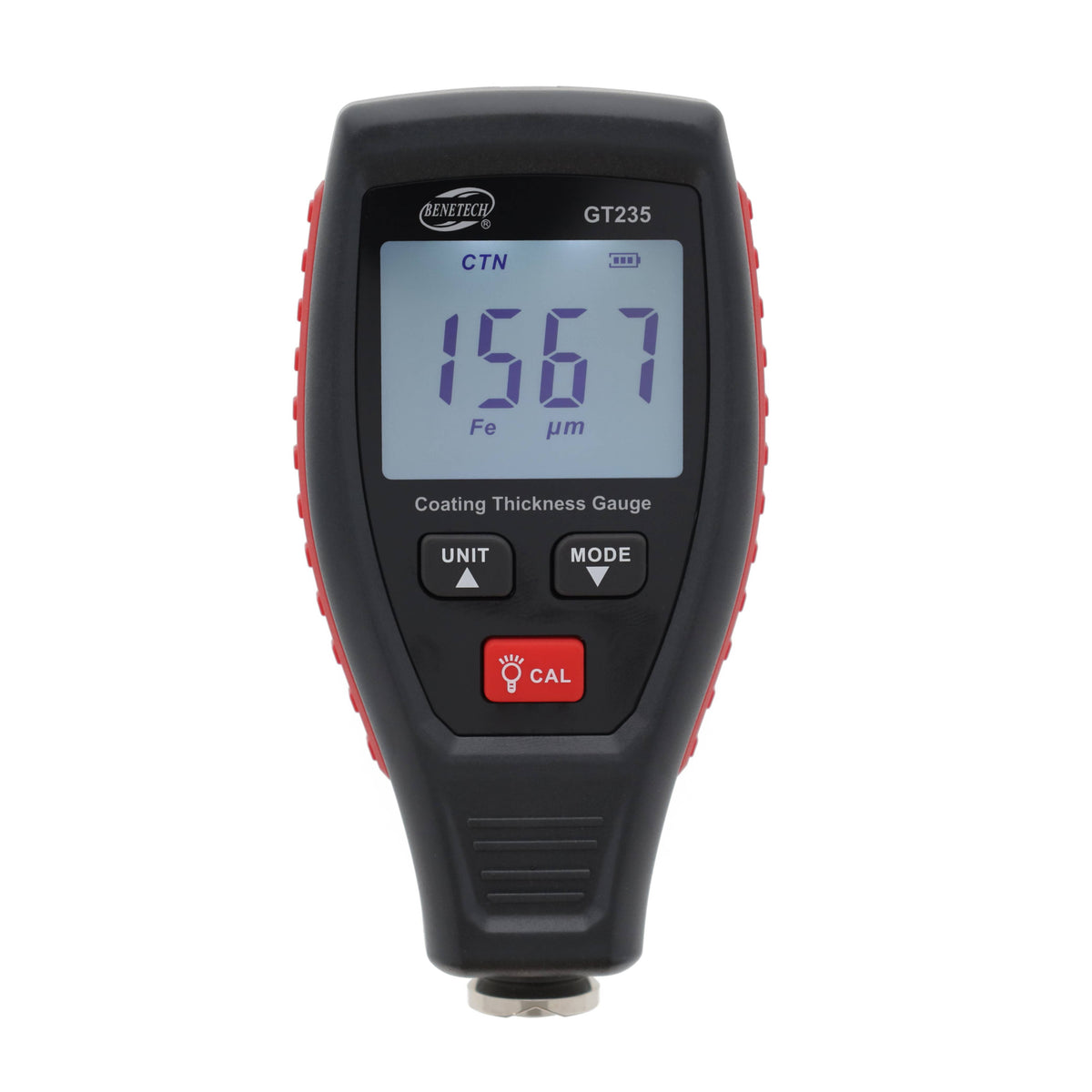

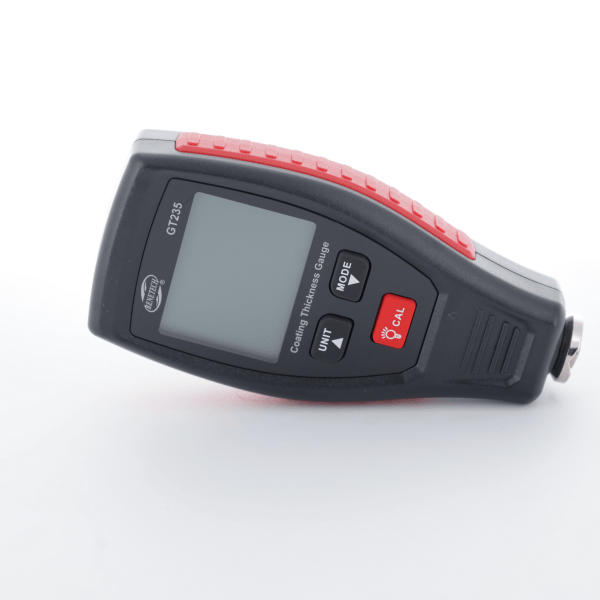

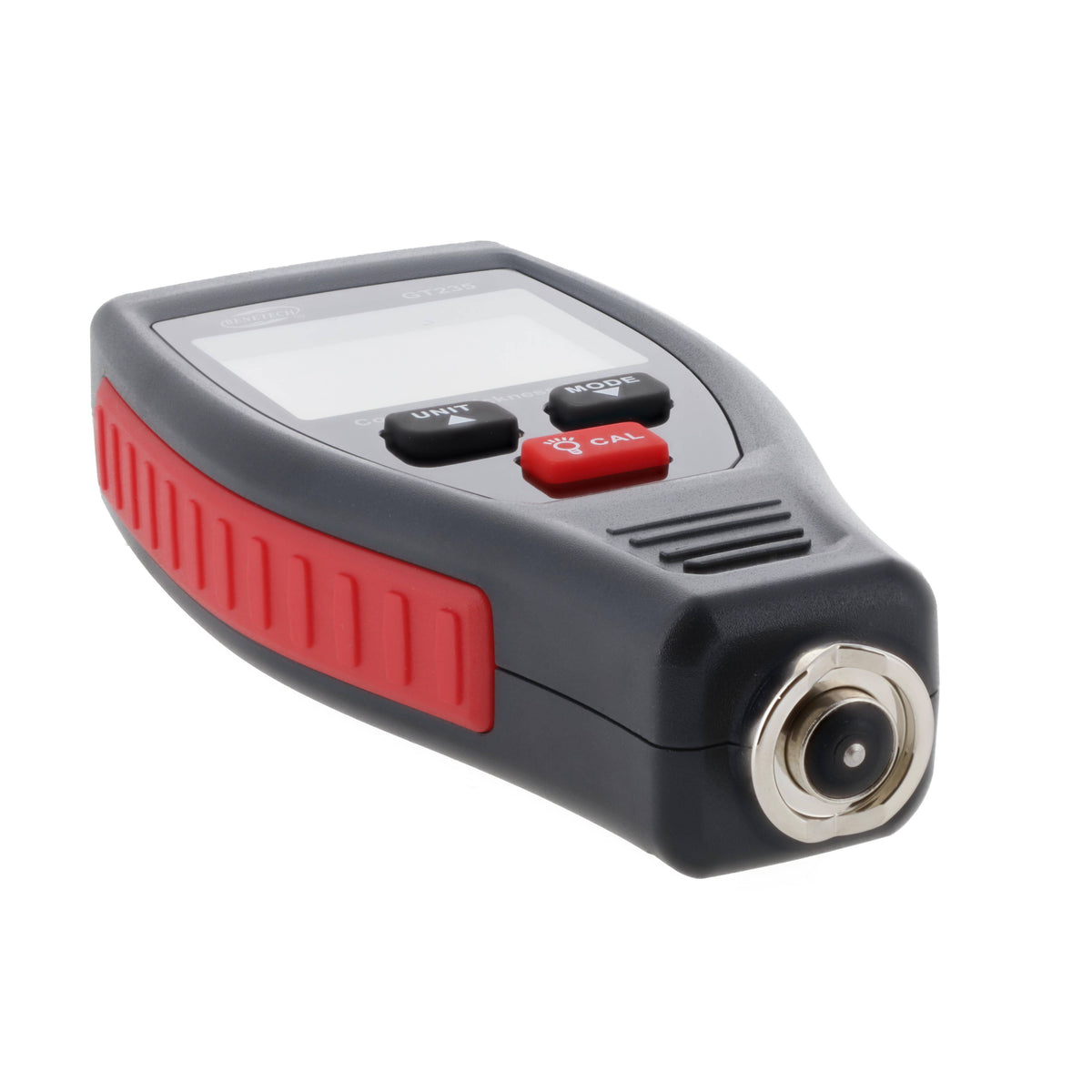

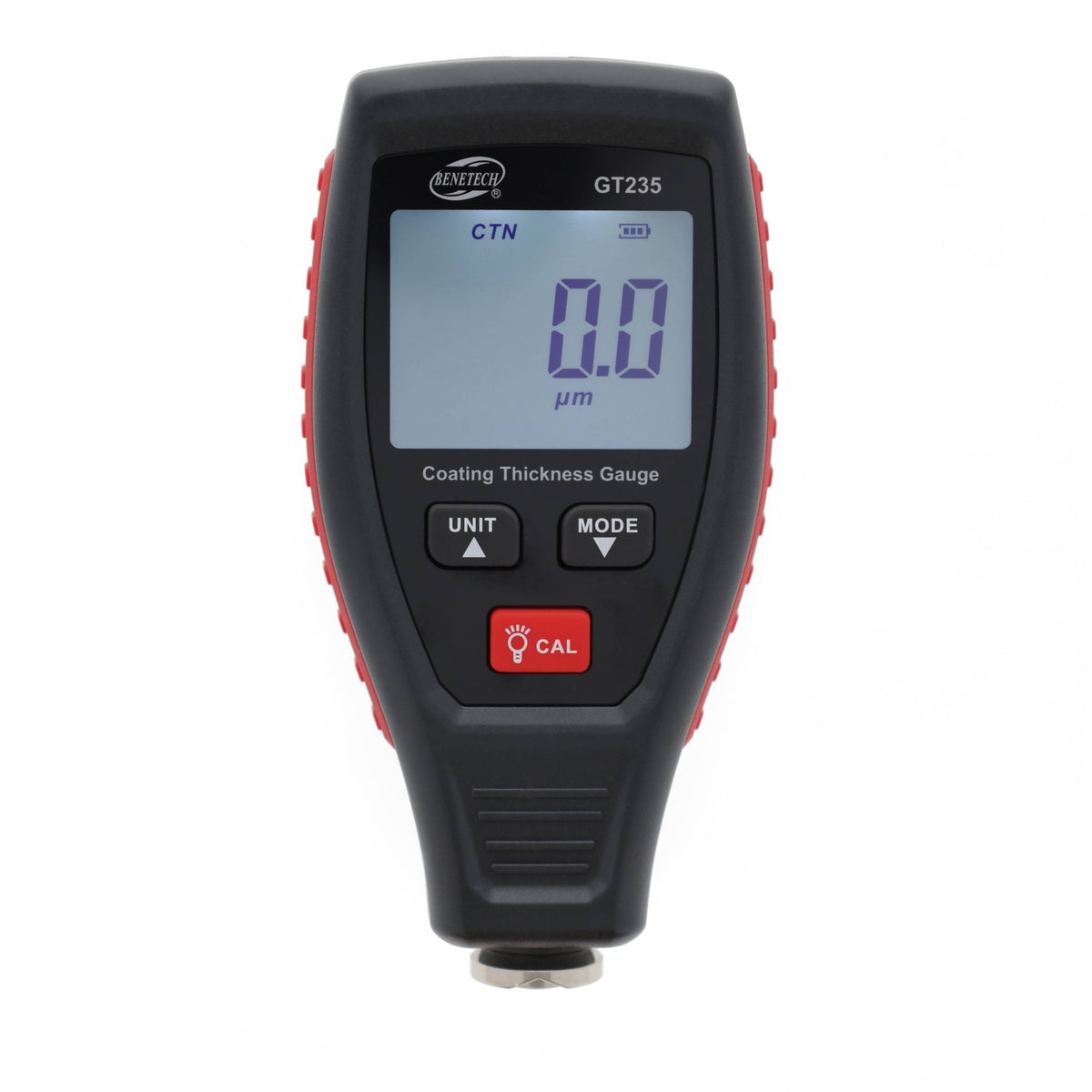

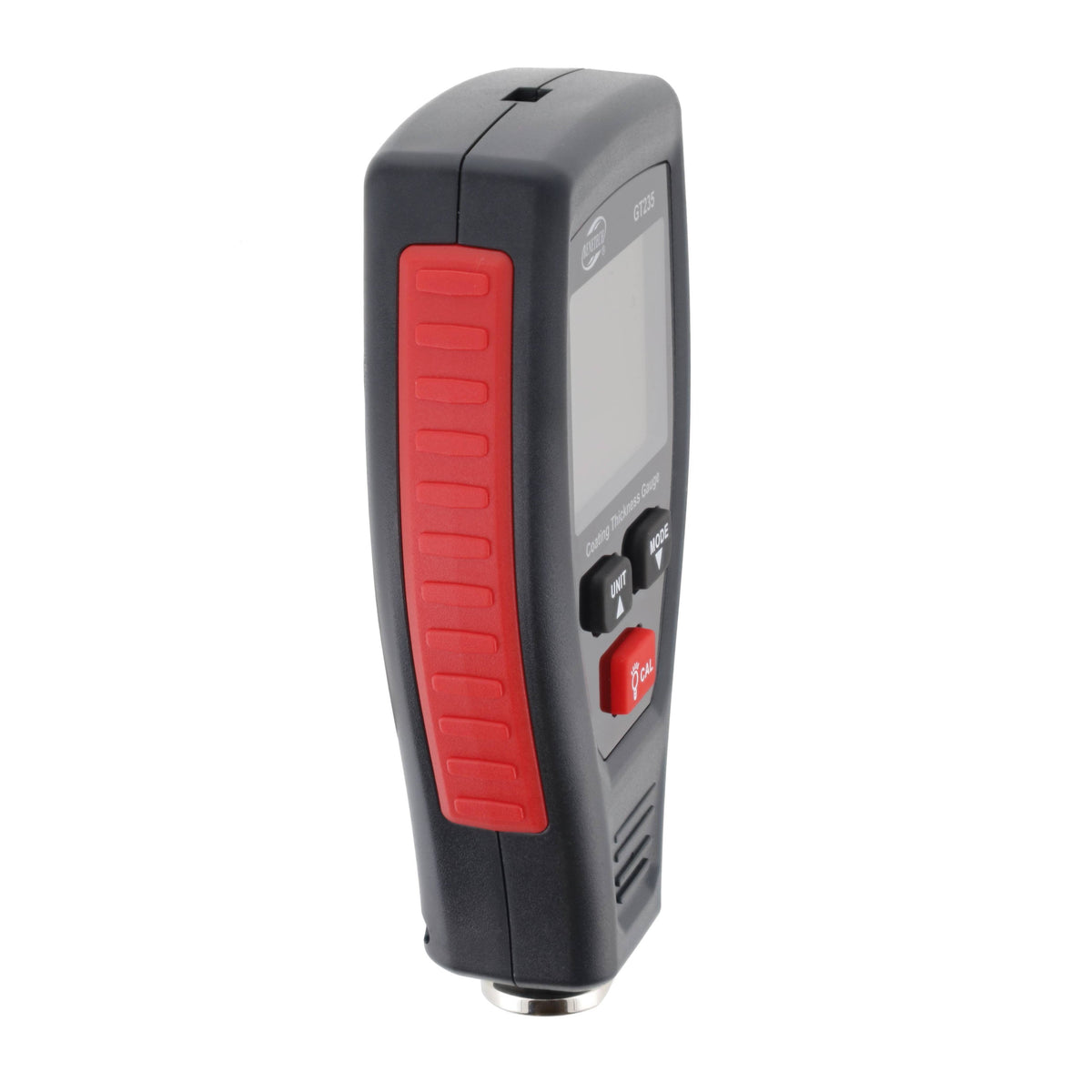

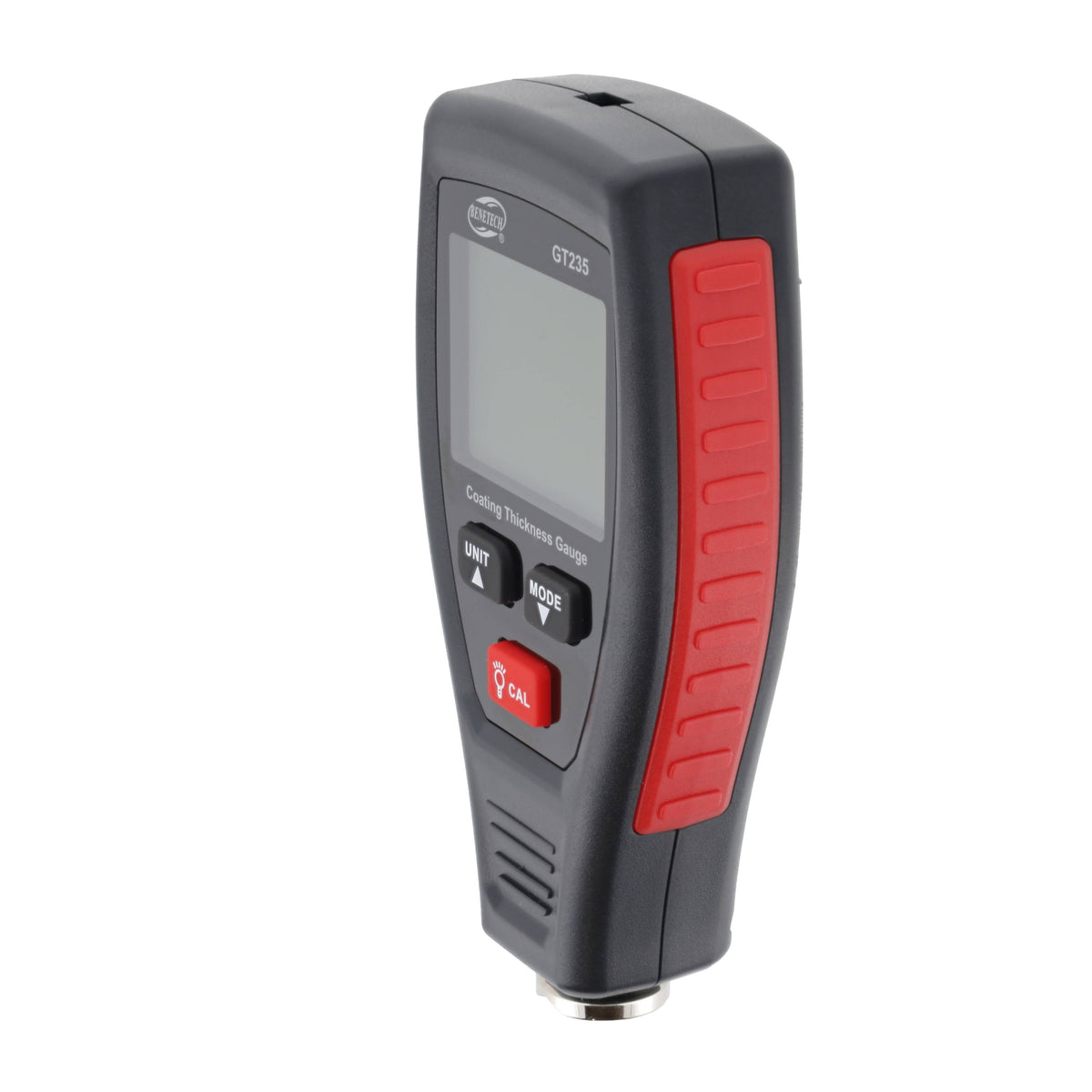

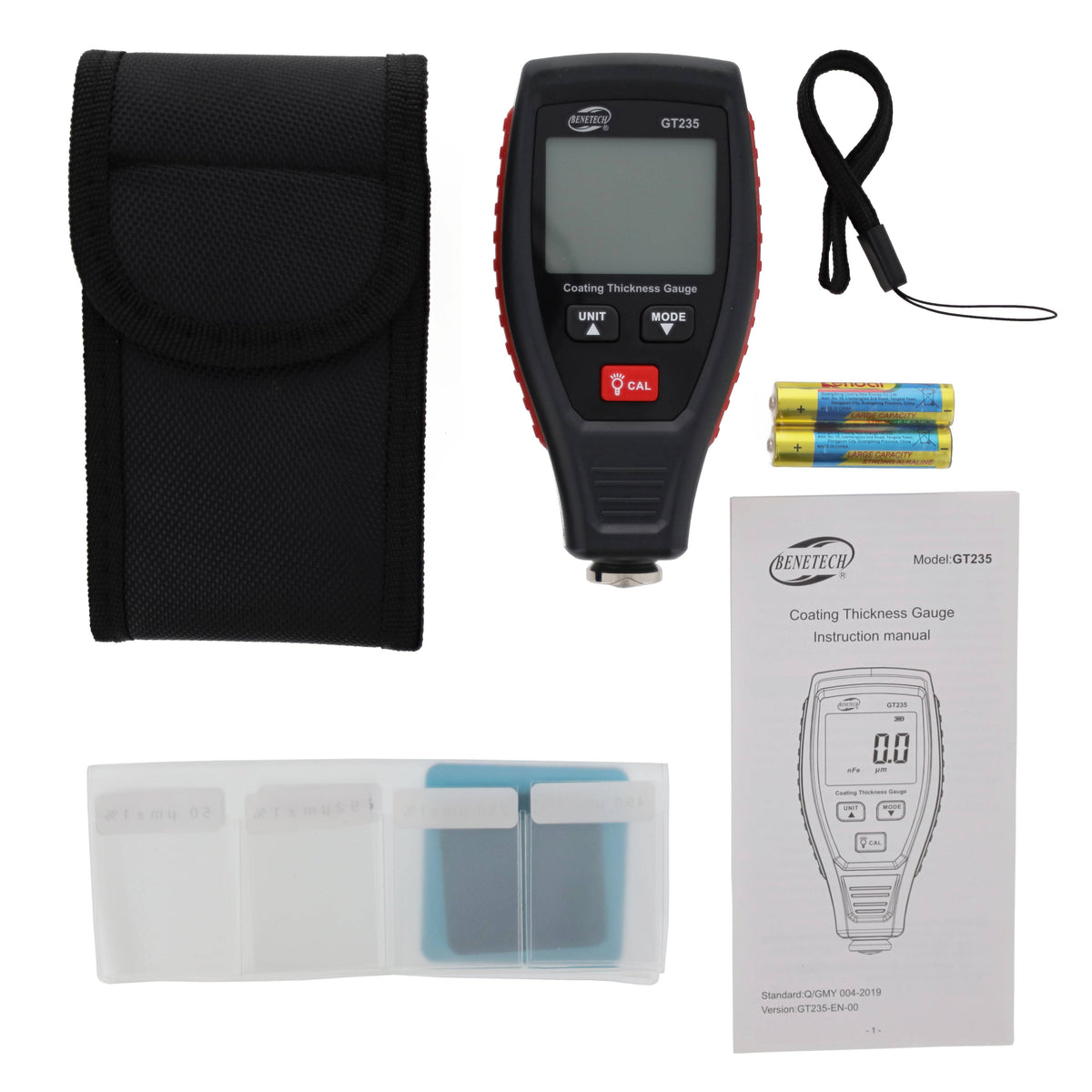

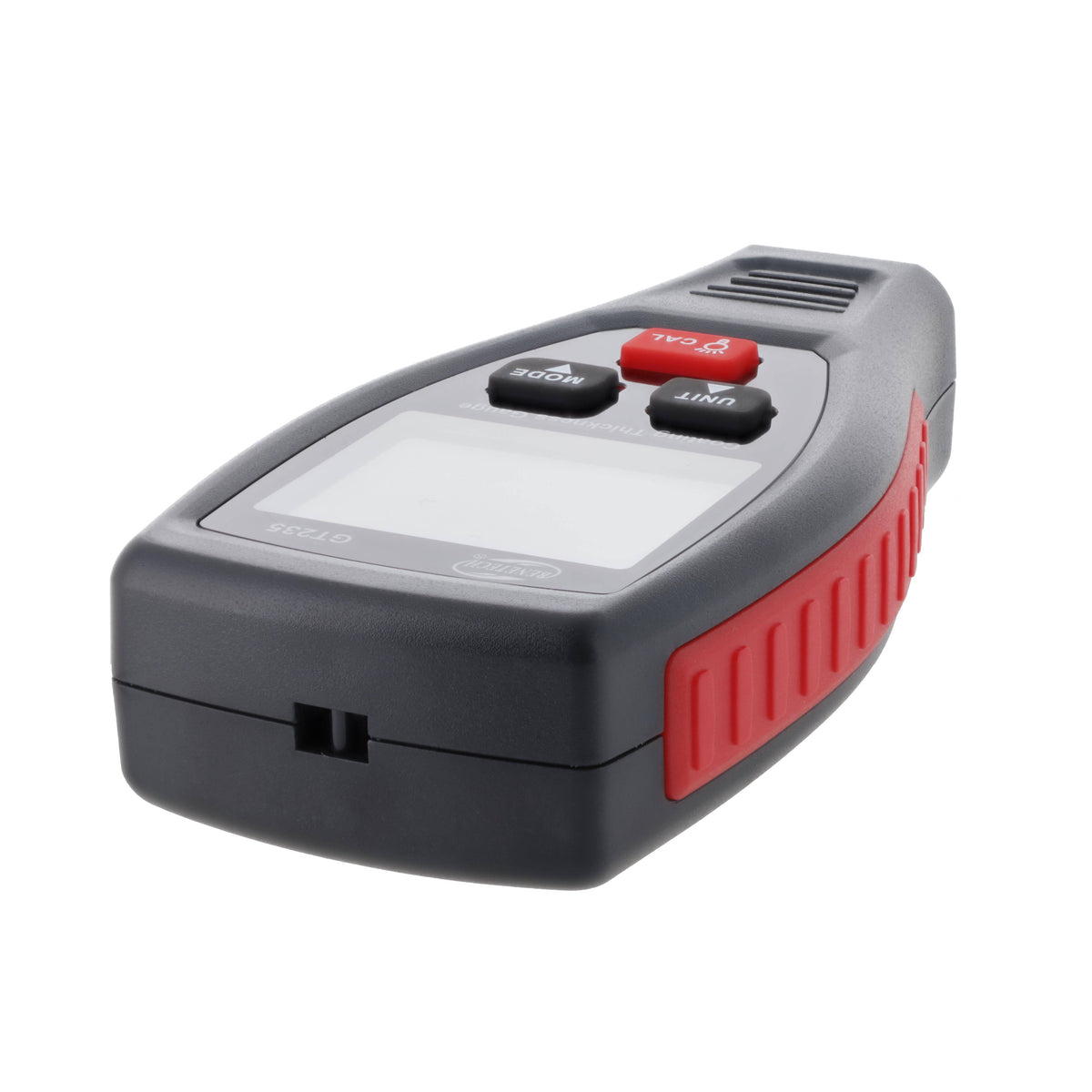

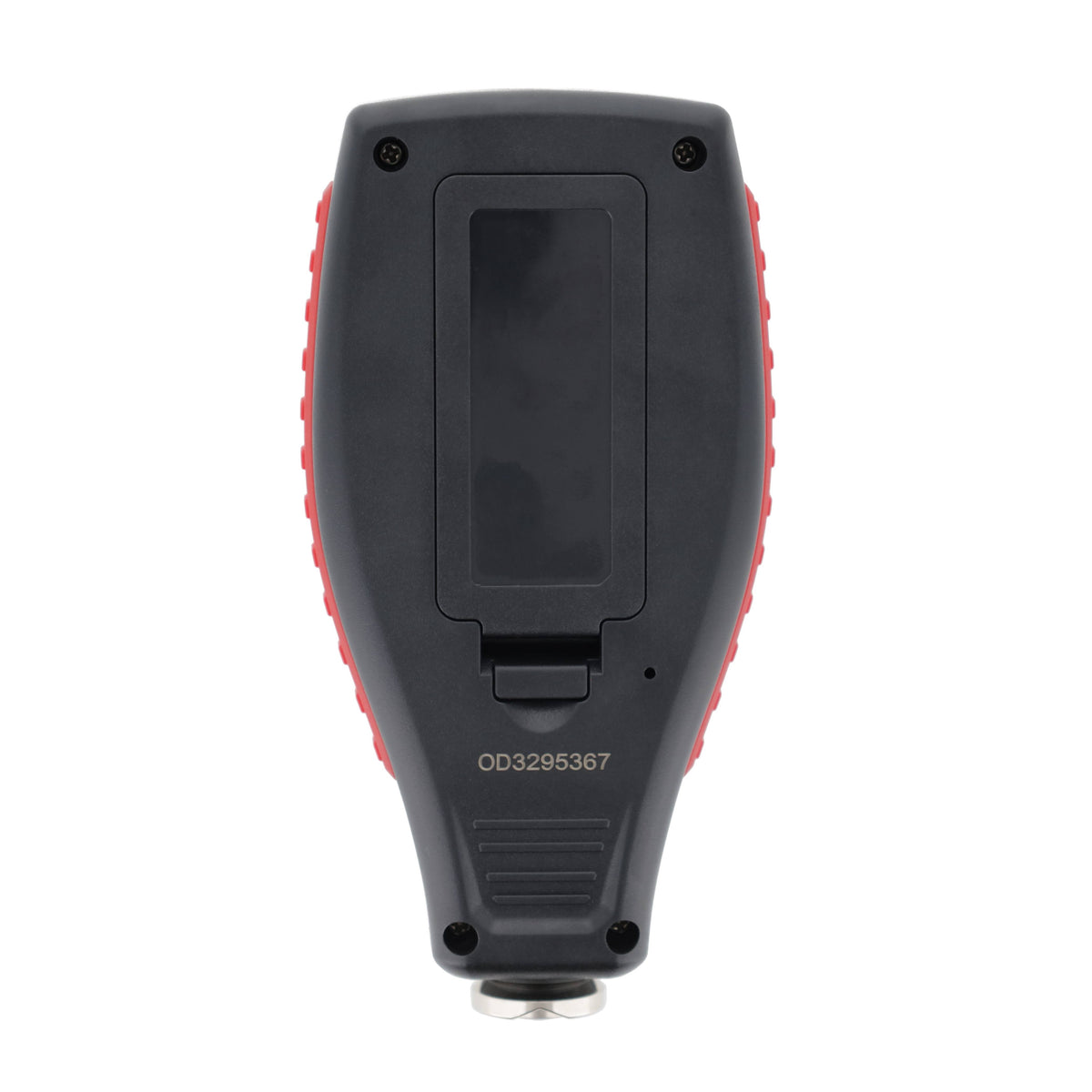

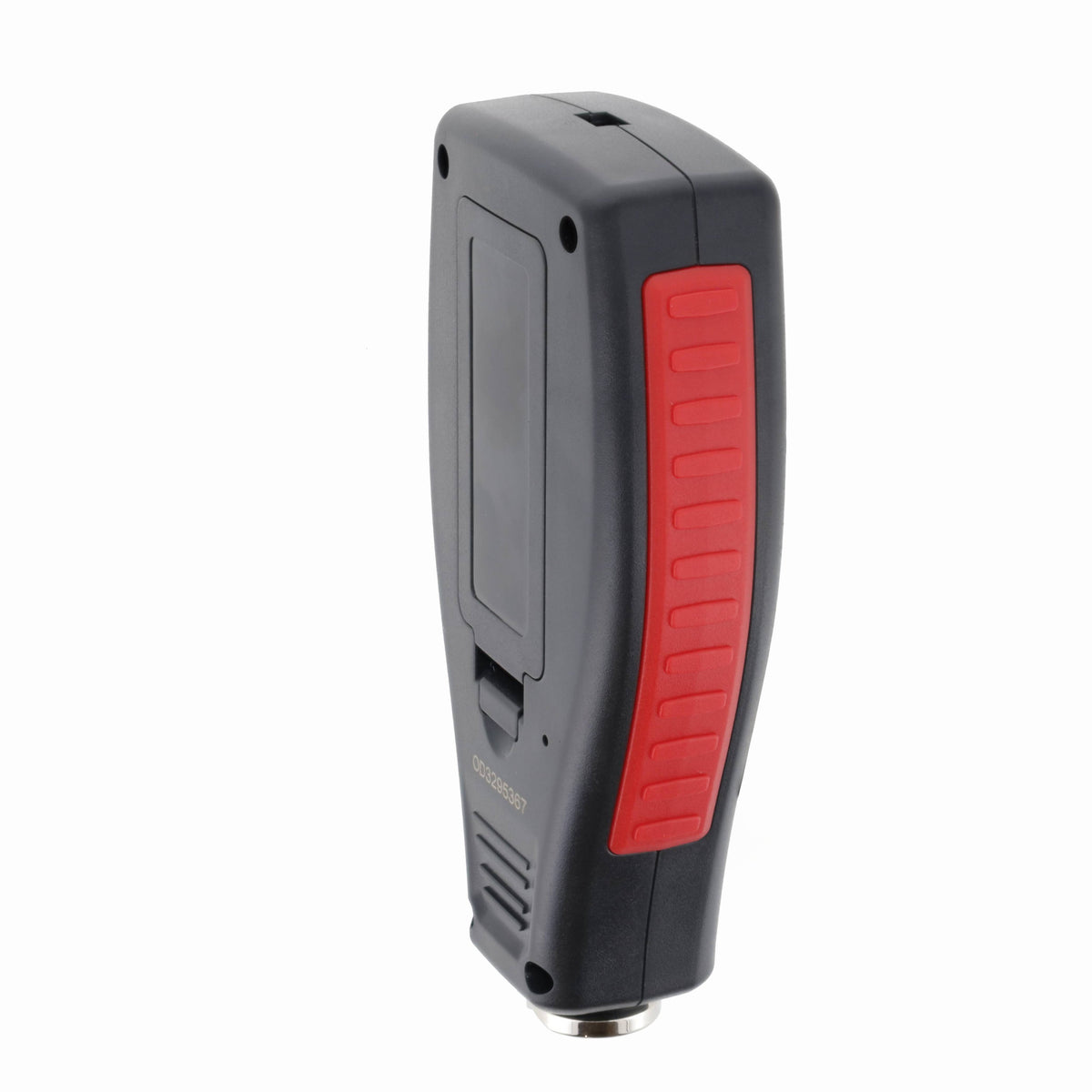

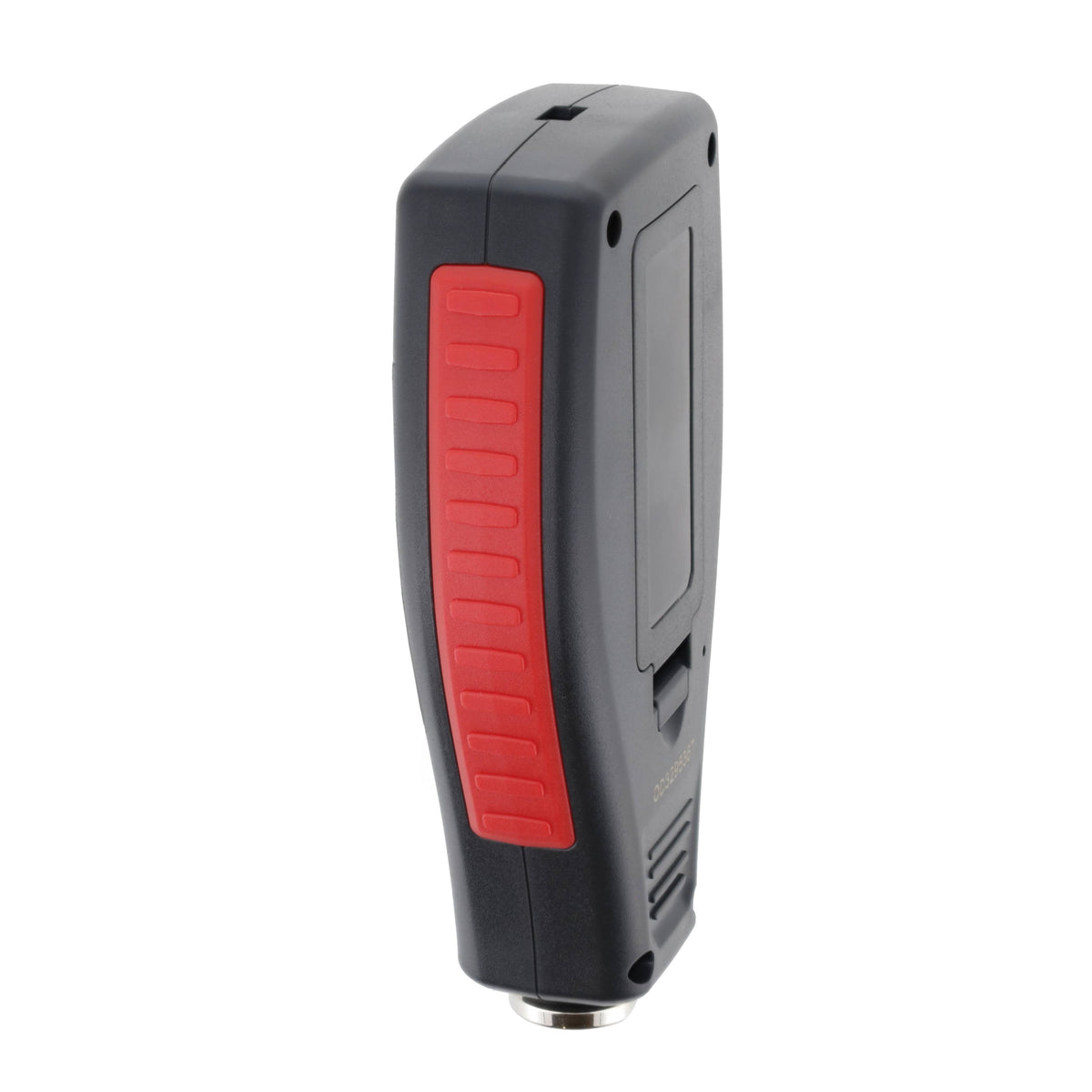

Coating Thickness Gauge of Non-Metallic and Non-Magnetic coating

ORDER ME IN
Product code: GT235

Order Me In, Once ordered this item will likely dispatch before the 19th of November 2025, call 1300 737 871 (NZ 0800 737 871) to confirm.

This device can make a quick and effective measurement of the thickness of non- metallic and non-magnetic coating.

-Measuring the thickness of non-magnetic coating on the magnetic metal substrate.

-Measuring the thickness of non-metallic coating on the non-magnetic metal substrate.

Read more

$159.60 AUD + GST
 $175.56 AUD Inc. GST
Features:
- Measures the thickness of non-magnetic coating on the magnetic metal substrate.
- Measures the thickness of the non-metallic coating on the non-magnetic metal substrate.
- Automatically identifying the non-magnetic metal substrate and magnetic metal substrate.
- Single measurement, continuous measurement and differential measurement available.
- Zero-point calibration, Offset Calibration and basic calibration available.
- Metric and imperial units of measurement optional.
- LCD backlight.
- Automatic shutdown.

Specifications

- Measurement ranges: 0 to 1800m/70.8mil/1.8mm
- Resolution: (0.1um(<100um),1um(100um))/0.1mil/0.001mm
- Measuring error: 150um, 5m >150 um, (3%H+1um
- Minimum diameter of magnetic substrate: 12mm
- Minimum thickness of magnetic substrate: 0.5mm
- Minimum curvature radius of convex magnetic substrate: 2mm
- Minimum curvature radius of concave magnetic substrate: 11mm
- Minimum diameter of non-magnetic substrate: 50mm
- Minimum thickness of non-magnetic substrate 0. 5mm
- Operating temperature range: -20 to 40 (It is recommended to calibrate it again when use in different environments, especially for large temperature difference)
- Operating humidity: 10 to 95%RH
- Power supply: 2*1.5V AAA batteries
- Overall dimensions: 62 x 27 x 121.5 mm
- Weight: 105.03g
