Ubibot

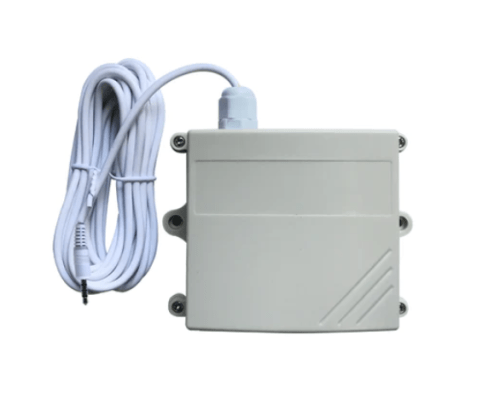

CO2 Probe-3M-R-Audio External Carbon Dioxide Probe

ORDER ME IN
Product code: UB-CO2-P1

Order Me In, Once ordered this item will likely dispatch before the 21st of October 2025, call 1300 737 871 (NZ 0800 737 871) to confirm.

5V RS485 CO2 Probe for SP1 & all GS1 series; Audio plug;  3 meters.

  • Monitoring Range: 0 to 40000ppm.
  • Accuracy: +/- 30ppm+3% in 400 to 10000ppm monitoring range.

Read more

$149.50 AUD + GST
 $164.45 AUD Inc. GST
UbiBot CO2 Probe is an industrial-grade probe that can measure CO2 concentration levels in a range of 0-10000 ppm, with accuracy of (30 ppm + 3%). It features super stability and anti-interference ability, strong product protection performance, and first-grade lightning protection. This probe can be used in the agricultural industry and in places like laboratories, pharmacies, workshops, warehouses, museums, offices, and wherever carbon dioxide concentration levels need to be monitored.
By integrating UbiBot CO2 Probe with GS1 and SP1 device, you don't need to watch the readings all the time. All the data collected by the probe over time can be stored on our cloud platform and accessed from the UbiBot App and the Web Console. The custom alerts will notify you of any sudden change or extreme conditions via App notifications, emails, SMS text messages, voice call, and HTTP. Our cloud platform works with IFTTT (if this then that), which supports automation with your other electronic appliances, such as fans, ventilation system, etc.
The CO2 data, as well as other data on our system, comes with free data export, long term storage, and data forwarding options.
Features:
- CO2 concentration monitoring
- RS485 ModBus Protocol makes sure data transmission is accurate and stable
- Can be calibrated with UbiBot Probe Calibration Tool
- Measuring Range: 0 to 10000 ppm
- Accuracy: CO2: (30 ppm + 3%) Accuracy (max) 0.1 ppm
- Working with GS1 series and SP1

Specifications

- Measuring range: 0 to 10000 ppm
- Accuracy (CO2): 30 ppm + 3% Accuracy (max) 0.1 ppm
- Connector: 3.5 mm audio plug
- Output interface: RS485
- Communication protocol: Modbus
- Material: ABS
- Dimensions: 65 x 46 x 29 mm
- Cable length: 3 meters
- Working voltage: DC 5-12 V
- Standby current: less than or equal to 20 mA
