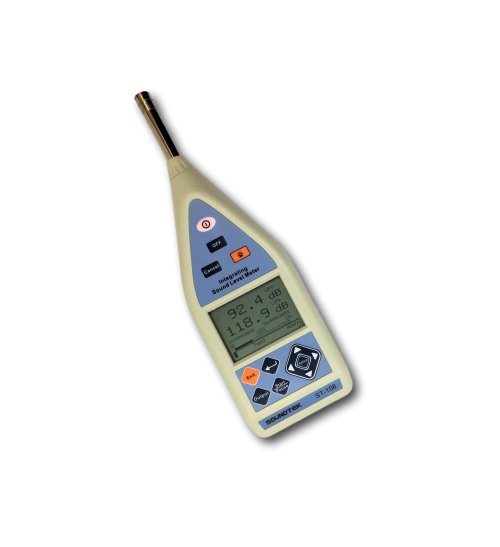

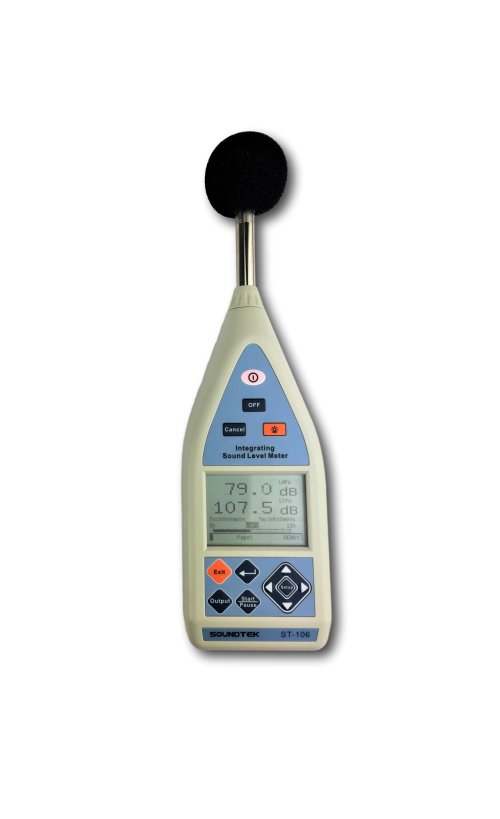

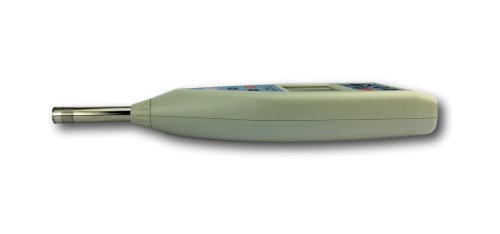

Class 1 Integrating Sound Level Meter

ORDER ME IN
Product code: IC-ST-106

Backorder Now, once ordered your item will dispatch before the 29th of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).

Class 1 Integrating Sound Meter for environmental and work place noise monitoring.

Read more

$2,559.40 AUD + GST
 $2,815.34 AUD Inc. GST

Features:

- Measuring Functions: Lxyp, (Lxyi), Lxeq, 1s, Lxeq, T, LAE, E, Cpeak+, Cpeak-, Lafmax, LAFmin, LAFeqT, LASeqT, LAleqT, Laeq (20Hz to 200Hz).
- Simultaneously measures A, C, Z, and F, S, Impulse.
- Fast, Slow, Impulse, PeakC+, PeakC- response time.
- Sampling Frequency 20.8's (48kHz).
- Wide frequency range: 10Hz to 20kHz.
- Wide measurement range: 25dB to 140dB.
- Wide dynamic range: 90dB.
- A, C, D, frequency weighting.
- USB interface, data recordings:128 records.

Specifications

- Measurement range: 30dB to 130dB(A), 35dB to 130dB(C) and 40dB to 130dB(Z)
- Display: LCD with Green Yellow Backlight (240 x 160 dots) Real time clock, Year, Month, Minute
- Display refresh rate: 1 Hz for value; 10Hz for graph

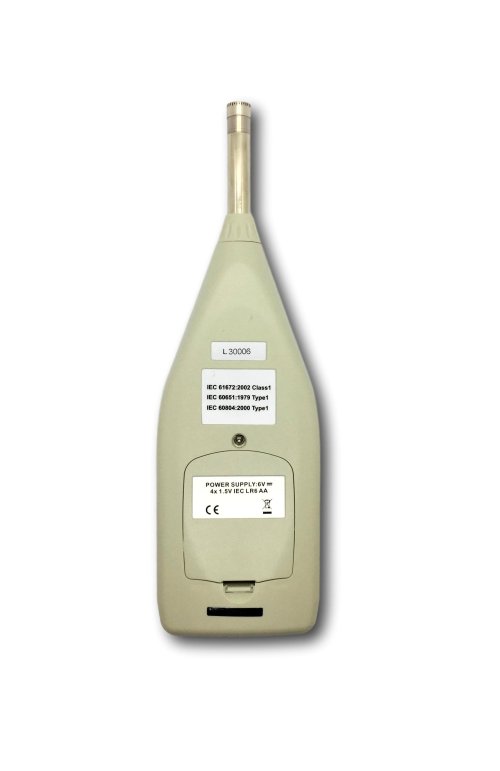

- Standards: IEC 61672 : 2002 Class 1, IEC 60651 : 1979 TYPE 1, IEC 606804 : 2000 TYPE 1

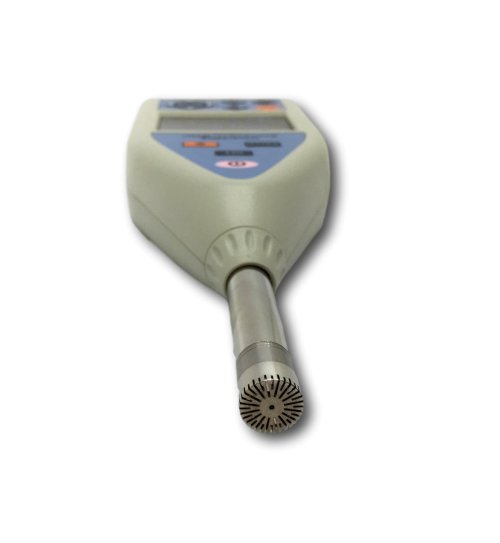

- Microphone: 1/2 pre-polarized condenser microphone build in preamplifier : 40mV/Pa, frequency range : 10Hz~16KHz, heat noise : 20dB(A)
- Integrate time setup Randomly, 10s, 1m, 5m, 10m, 20m, 30m, 1h, 2h, 4h, 8h
- Time Weighting: Fast, Slow, Impulse, Peak
- Frequency Range: 10Hz to 16KHz
- Frequency Weighting: A/C/Z
- Sampling Frequency: 20.8us (48KHz)

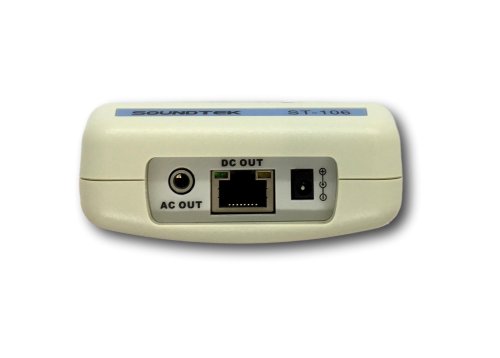

- Analog Output: AC 20mV/dB
- Starting Time: <10 Seconds
- Power Requirement: LR6 : 4 Alkaline batteries (8 hours)
- AC Adapter: Imput: 100V~240V, Output: 6V DCV
- Size: 285 (L) x 90(W) x 39(H) mm
- Weight: 500g (including Batteries)
