Center 324 Sound Meter Recording System - IC-Center324

ORDER ME IN
Product code: IC-Center324

Order Me In, Once ordered this item will likely dispatch before the 29th of October 2025, call 1300 737 871 (NZ 0800 737 871) to confirm.

Sound measuring recording system with PC software to synchronize sound and spl data for analysis. This data logger can collect the sound level data and it can record the actual sound to its MicroSD card, allowing the user to do both dB level over time and correlate this to actual sounds.

Read more

$693.00 AUD + GST
 $762.30 AUD Inc. GST

Features:

- Sound measuring recording system with PC software to synchronize sound and spl data for analysis.
- Micro SDHC for sound recording up to 32G
- Comply with UEC 61672-1 Class 2 Standard
- 128,000 storage memory
- Real-time clock with calendar
- Sound Recording function
- AC/DC Signal output
- USB Interface

Specifications

- Measurement range: 30 to 130 dB
- Level Range: 30-90 dB/50-110 dB/70-130 dB
- Dynamic range: 60 dB
- Accuracy: +/- 1 dB (ref. 94 dB@ 1KHz)
- Sampling rate: 2 times/sec
- Frequency Weighting: A/C
- Time weighting: Fast/Slow
- Frequency range: 20 Hz to 8 KHz
- Microphone: 1/2 inch condenser microphone
- Power source: 4x 1.5V AAA battery
- Battery life: 20 hours/ 5 hours when sound recording is on
- Operating condition: 0 to 40 C (<80%RH)
- Storage condition: -10 to 16 C (<70%RH)
- Dimensions: 264 (L) x 63 (W) x 29 (H) mm

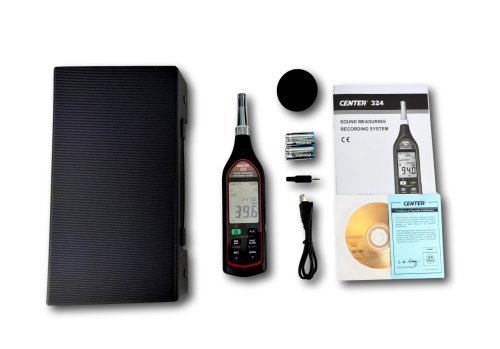

- Accessories: battery, widescreen, manual, tool box, windows software, USB cable and micro SDHC (T-Flash)
