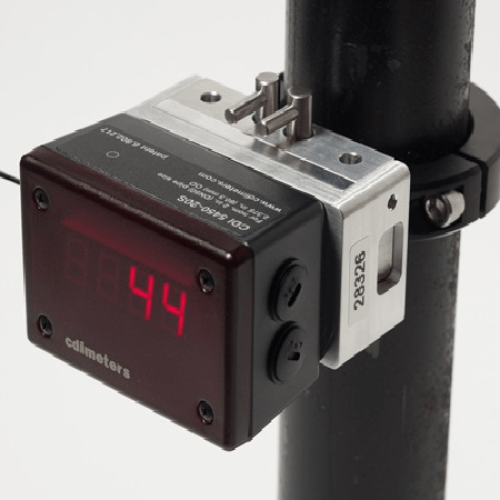

Cdi5450 Hot Tap Flowmeter For Steel Pipes (6")

ORDER ME IN
Product code: IC-5450-60S

Order Me In, once ordered this item will likely dispatch before the 15th of September 2025, call 1300 737 871 (NZ 0800 737 871) to confirm.

The CDI 5450 is a modified version of the 5400 model that allows installation under pressure. It incorporates two valves through which the probes pass and a muffler that collects chips from the drilling process.

Read more | Need help? 3 Hour Business Reply

$5,749.30 AUD + GST
 $6,324.23 AUD Inc. GST

The CDI 5450 is a modified version of the 5400 model that allows installation under pressure. It incorporates two valves through which the probes pass and a muffler that collects chips from the drilling process. It takes an equal amount of installation time as our standard meters and requires no shutdown of the compressed-air system.

Like all of our 5000-series meters, it measures flow by maintaining one probe warmer than the other. It deter-mines the mass flow rate from the amount of heat re-quired. The flow rate, in scfm or equivalent units, is shown on a large, four-digit display; a 4-20 mA output and a pulse output permit remote display, totalizing and data collection.
Features:
- No system shutdown required
- Installs in minutes
- Weather resistant and surge protected
- Milliamp output
- Pulse output convertible to threshold output
- User-configurable scaling, filtering and units of measure
- Optional wired or wireless output for networking
- Housing rotates to suit vertical or horizontal installation

Specifications

- Accuracy: 5 percent of reading plus 1 percent of range for flows from 10 percent to 100 percent of indicated range at air temperatures between 20 and 120 degrees Fahrenheit
- Fluids: Compressed air and Nitrogen
- Range: 5000 scfm
- Operating pressure: 130 psig maximum on Sch. 40 steel
- Input power: 250 mA at 24 Vdc
- Output resistance: 600 Ohms max.
- Materials exposed to measured fluid: Stainless steel, gold, thermal epoxy and Viton (seal)
- Display: Four-digit LED display
- Response time: One second to 63 percent of change in value at flows above 30 percent of range
