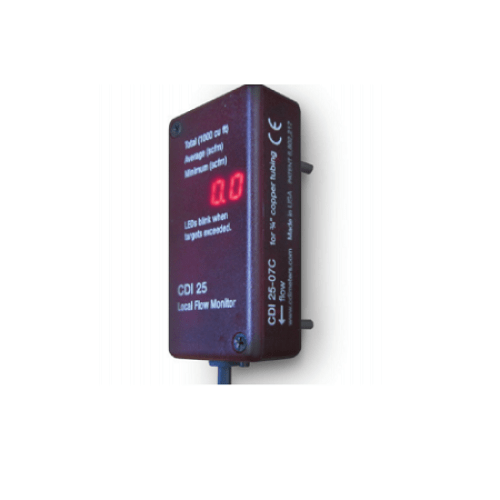

Cdi25 Point-Of-Use Flowmeters For Copper Pipes (0.75")

ORDER ME IN
Product code: IC-25-07C

Order Me In, once ordered this item will likely dispatch before the 15th of September 2025, call 1300 737 871 (NZ 0800 737 871) to confirm.

The CDI 25 is a low-cost measurement of air usage by individual pieces of industrial equipment. It indicates leak-age and excessive usage locally with blinking lights, thereby eliminating the need for central monitoring and enabling equipment operators and maintenance mechanics to observe and respond to developing problems..

Read more | Need help? 3 Hour Business Reply

$749.10 AUD + GST
 $824.01 AUD Inc. GST

The CDI 25 represents a price-performance break-through in compressed-air metering. It fills a need for low-cost measurement of air usage by individual pieces of industrial equipment. It indicates leak-age and excessive usage locally with blinking lights, thereby eliminating the need for central monitoring and enabling equipment operators and maintenance mechanics to observe and respond to developing problems.

The CDI 25 is based on CDI proven technology, but it has been streamlined to reduce cost, reduce material usage and facilitate installation. The meter measures flow by maintaining one of its two probes warmer than the other; it calculates flow from the amount of heat required. Current flow, as well as minimum, average and totalized flows can be seen on a four-digit display.
Features:
- Low cost permits monitoring of loads throughout an industrial plant
- Alarm functions indicate when leakage has developed or usage has become excessive
- Totalizing function allocates usage and cost
- Complete flowmeter in one package

Specifications

- Accuracy: 5 percent of reading plus 1 percent of range for flows from 10 percent to 100 percent of indicated range at air temperatures between 20 and 120 degrees Fahrenheit.
- Fluids: Compressed Air, Nitrogen
- Range: 150 scfm
- Operating Pressure (steel and copper): 200 psig maximum
- Input power: 250 mA at 24 Vdc
- Output resistance: 600 Ohms max.
- Exposed Materials: Stainless steel, gold, thermal epoxy and Viton (seal)
- Display: Four-digit LED display
- Response time: One second to 63 percent of change in value at flows above 30 percent of range
