Casella | See more Other Meters | See more Vibration Meters

Casella Havex Kit - IC-HAVEX.KIT

ORDER ME IN
Product code: IC-HAVEX.KIT

Order Me In, once ordered this item will likely dispatch before the 01st of November 2025, call 1300 737 871 (NZ 0800 737 871) to confirm.

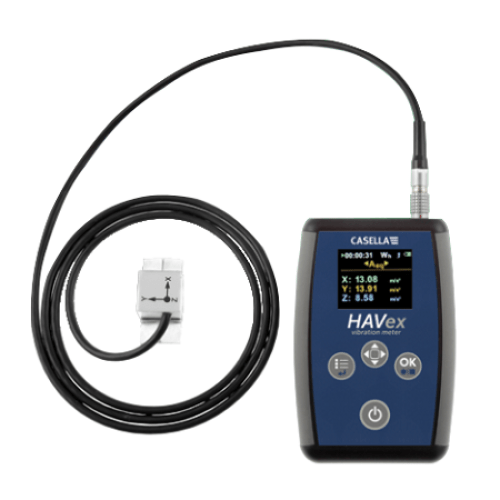

The HAVex (hand arm vibration meter) conforms to ISO 8041 standards (2005 Human Response to Vibration (Measuring Instrumentation). This meter enables you to measure the vibration levels of the tools your employees use to ensure they are not over-exposed to hand arm vibration during their daily routine. The kit includes all you need to use the HAVex meter in your work place.

Read more | Need help? 3 Hour Business Reply

$12,000.00 AUD + GST
 $13,200.00 AUD Inc. GST

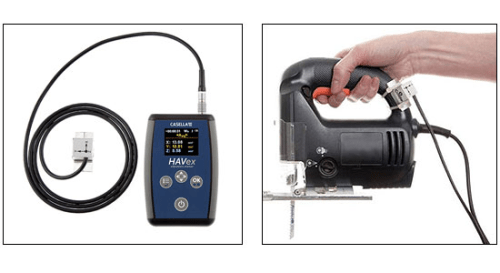

The HAVex provides you with the actual level of vibration (as opposed to manufacturers figures alone) of a particular tool. This data can be used to calculate actual exposure time into HSE Exposure Points.

Designed with only 3 operational buttons, take measurements with the HAVex hand arm vibration meter (HAVS) with ease and view in real time on the large colour display. The HAVex also has a rechargeable battery so it's ready for use when you are.

The HAVex also stores data which can be downloaded via the VibDataLite Vibration Analysis Software, allowing you to keep a permanent record for compliance purposes. The VibData Lite software is completely free and is supplied with the meter.

Features
- Simple operation
- Robust accelerometer & cable
- Colour display
- Stores over 900 measurements
- Large measurement range
- Rechargeable battery
- Easily view, export & report data

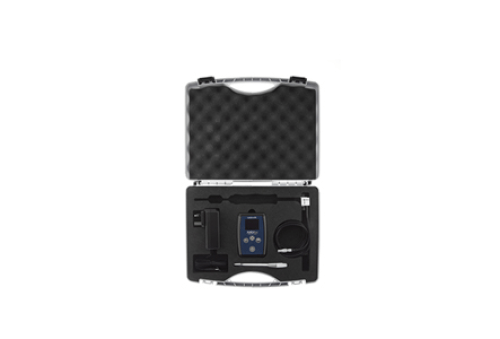

- Supplied as a kit with everything you need to begin measuring

Applications:
- Hand Arm Vibration Exposure Measurements
- Risk assessment
- Power tool condition and maintenance database
- ISO 5349 : 2001 Mechanical Vibration Guidelines for Measurement
- ANSI S2.70 (2006) guide for the measurement and evaluation of human exposure to vibration transmitted to the hand


Specifications

Performance Conforms to ISO 8041 : 2005 Human
Response to Vibration Measuring Instrumentation

Level Ranges:

Low: 0.05-200m/s2, 0.005-20.4g
High: 0.5-2000m/s2, 0.05-204g
Parameters: Acceleration: Arms, Aeq, Amax, Peak, Vector Sum, Exposure Points
Frequency Weighting: WH - Hand Arm Filter
Memory: Flash memory storing up to 992 recordings
Display: Full colour, graphic OLED 160 x 128
Batteries: NiMH re-chargeable (typically 10 hours continuous use)
Connections: AC Output: 4 pole 3.5 mm jack
Download: USB Micro B (cable incl.)
Recharge: DC socket (charger & cable
supplied)
Environmental: Temperature: -10 C to +50 C
Humidity: up to 90% RH non-condensing
