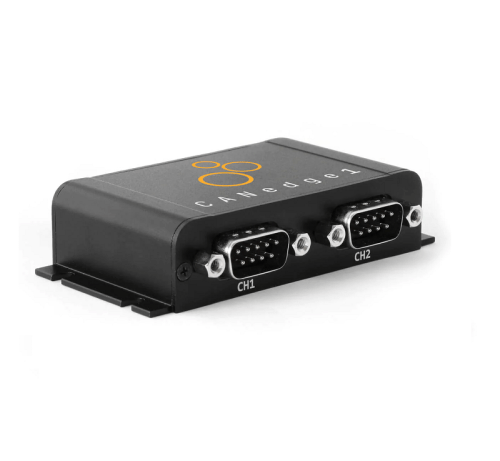

CANEDGE 1: 2x CAN BUS Data Logger
ORDER ME IN
Order Me In, Once ordered this item will likely dispatch before the 15th of November 2025, call 1300 737 871 (NZ 0800 737 871) to confirm.
The plug & play 2xCAN/LIN logger records timestamped CAN data (Classical/CAN FD) to the extractable 8 GB industrial SD card.
Regular price
$639.50 AUD
+ GST
$703.45 AUD Inc. GST
$703.45 AUD Inc. GST
The plug & play 2x CAN/LIN logger records timestamped CAN data (Classical/CAN FD) to the extractable 8 GB industrial SD card.
It's easy-to-use: Simply connect the device to your CAN bus to start logging raw CAN data. Next, extract the data and process it using 100% free open source software/API tools - incl. file format conversion, DBC decoding and plot visualization.
Ideal for recording CAN/LIN data over weeks, months or years - e.g. for diagnostics, OEM development or legal/warranty purposes.
2 Year Warranty (1 Year Manufacturer Warranty + Bonus 1 Year Instrument Choice Warranty)
CANEdge-1 Features
- Plug and play: Log data out-the-box. Standalone - no PC required. Power via CAN connector
- Pro specs: Extractable 8-32 GB SD. 2xCAN/LIN. CAN FD. Zero data loss. 50 s RTC. Error frames. MF4
- Compact: Only 8 x 5 x 2 CM. 100G. Aluminium enclosure. 4 LEDs. Configurable 5V power out (CH2)
- Configurable: Advanced filters. Transmit lists. Triggers. Cyclic logging. Silent mode
- Fast and Secure: Industrial SD card. Read data at 80 MB/s. Data encryption for GDPR/CCPA
- Interoperable: Free & open source software/API. MF4 to ASC/CSV. DBC support. Python. Dashboards
Specifications
|
CAN BUS Channels
|
2 x CAN channels (incl. CAN FD support)
|
|
Standard
|
ISO 11898: Compliant with CAN (up to 1 Mbit/s) and ISO & Bosch CAN FD (up to 4 Mbit/s payload rate)
|
|
Protocols
|
Log raw data fromCANbased protocols (J1939/FMS,CANopen,NMEA 2000,OBD2,CAN FD,UDS, ...)
|
|
Identifiers
|
Compliant with CAN specifications 2.0A (11-Bit ID) and 2.0B (29-Bit ID)
|
|
Bit-Rate Auto-Detect
|
Bit rate can be auto-detected or set manually
|
|
Retransmission
|
Configurable retransmission of frames that have lost arbitration or been disturbed by errors
|
|
Transceiver Protection
|
16 kV HBM ESD, 15 kV IEC ESD, 70 V bus fault, short circuit
|
|
LIN BUS Channels
|
2 x LIN channels
|
|
Publisher/Subscriber
|
Each LIN channel can be configured as a LIN subscriber/publisher with support for LIN data transmission
|
|
Custom length
|
Support for custom frame lengths
|
|
Standard
|
Compliant withLIN 2.0up to 20 Kbit/s (support for Classic & Enhanced checksum format)
|
|
Transceiver Protection
|
8 kV HBM ESD, 1.5 kV CDM, 58 V bus fault
|
|
SD Card
|
8 GB extractable Class 10 industrial micro SD (SDHC) included (optional 32GB) - read at 80 MB/s
|
|
Parallel CAN/LIN
|
Record data from up to 2 x CAN channels + 2 x LIN channels, simultaneously
|
|
Real-Time Clock
|
Yes - CAN frames are date & timestamped with 50 microsecond resolution (battery backup)
|
|
Log File Format
|
Log data in industry standard binaryMF4(easily convert to e.g. CSV, ASC, pandas, MATLAB, ...)
|
|
Data Compression
|
Configurable embedded log file zipping (~50-80% size reduction)
|
|
Silent Mode
|
Configurable silent mode: Restricted (acknowledge only) or monitoring (zero transmission)
|
|
Filters
|
128/64 regular/extended ID filters per channel (range, mask, acceptance, rejection, prescaling)
|
|
Prescaling
|
Prescale CAN frames to record e.g. by time (per X ms) or by data (e.g. if byte X or Y changes)
|
|
Transmit
|
Transmit lists of CAN frames per channel (single-shot/periodic) - e.g. for OBD2 requests
|
|
CAN Error Frames
|
Support for logging CAN error frames (bit-stuffing, form, CRC, bit, acknowledgement)
|
|
LIN Error Frames
|
Support for logging LIN error frames (checksum, receive, synchronization, transmission)
|
|
Remote Frames (RTR)
|
Support for logging/transmission of remote CAN frames (RTR)
|
|
Cyclic Logging
|
Optional cyclic logging mode (oldest log file is deleted when SD card is full)
|
|
Advanced Triggers
|
Control signallets you start/stop logging based on custom CAN IDs & data thresholds
|
|
CAN Heartbeat
|
Optionally transmit heartbeat CAN frame with device status, storage used & RTC time
|
|
File Split
|
Configurable log file split size (by size: 1-512 MB and/or by time period: 0-86400s)
|
|
Power Safe
|
100% power safe data logging - no file corruption when disconnected
|
|
Unique Device ID
|
Each device has a globally unique ID ensuring unique log file naming
|
|
Data Encryption
|
Log files can beencryptedat rest on the SD card for security/GDPR/CCPA purposes
|
|
SD Card
|
8 GB extractable Class 10 industrial micro SD (SDHC) included (optional 32GB) - read at 80 MB/s
|
|
Parallel CAN/LIN
|
Record data from up to 2 x CAN channels + 2 x LIN channels, simultaneously
|
|
Real-Time Clock
|
Yes - CAN frames are date & timestamped with 50 microsecond resolution (battery backup)
|
|
Log File Format
|
Log data in industry standard binaryMF4(easily convert to e.g. CSV, ASC, pandas, MATLAB, ...)
|
|
Data Compression
|
Configurable embedded log file zipping (~50-80% size reduction)
|
|
Silent Mode
|
Configurable silent mode: Restricted (acknowledge only) or monitoring (zero transmission)
|
|
Filters
|
128/64 regular/extended ID filters per channel (range, mask, acceptance, rejection, prescaling)
|
|
Prescaling
|
Prescale CAN frames to record e.g. by time (per X ms) or by data (e.g. if byte X or Y changes)
|
|
Transmit
|
Transmit lists of CAN frames per channel (single-shot/periodic) - e.g. for OBD2 requests
|
|
CAN Error Frames
|
Support for logging CAN error frames (bit-stuffing, form, CRC, bit, acknowledgement)
|
|
LIN Error Frames
|
Support for logging LIN error frames (checksum, receive, synchronization, transmission)
|
|
Remote Frames (RTR)
|
Support for logging/transmission of remote CAN frames (RTR)
|
|
Cyclic Logging
|
Optional cyclic logging mode (oldest log file is deleted when SD card is full)
|
|
Advanced Triggers
|
Control signallets you start/stop logging based on custom CAN IDs & data thresholds
|
|
CAN Heartbeat
|
Optionally transmit heartbeat CAN frame with device status, storage used & RTC time
|
|
File Split
|
Configurable log file split size (by size: 1-512 MB and/or by time period: 0-86400s)
|
|
Power Safe
|
100% power safe data logging - no file corruption when disconnected
|
|
Unique Device ID
|
Each device has a globally unique ID ensuring unique log file naming
|
|
Data Encryption
|
Log files can beencryptedat rest on the SD card for security/GDPR/CCPA purposes
|
|
Input Supply
|
+7V to +32V DC via the Channel 1 DB9 (e.g. via CAN connector power pin)
|
|
Power Consumption
|
Extremely low (~1 W) - no risk of battery drainage
|
|
Protection
|
Reverse voltage protection on CAN-bus supply
|
|
Enclosure & Weight
|
Compact aluminium enclosure: 75 x 47 x 20 mm (W x L x H excl. flanges). 100 grams
|
|
Flanges
|
Flanges with 4 x M3 screw holes (head diameter < 6 mm) - see also the CANedge 'mounting kit'
|
|
Connector
|
2 x Standard D-sub 9 (DB9) connectors (optional OBD2/J1939/... adapters)
|
|
Pin-Out
|
See the product manual for the DB9 connector pin-outs
|
|
Configurable Power Out
|
Channel 2 can be configured to supply 5V to external modules (e.g. the CANmodsensor-to-CANmodules)
|
|
LEDs
|
Logger status via 4 external LEDs: Power, CH1, CH2, Memory
|
|
Temperature
|
Operating temperature (parts): -25degC to +70degC
|
|
IP Rating
|
IP Rating 40
|
