Castle

Calibrator, Dual Level, Class 1 (Includes Ga690 Barometer)

DISCONTINUED
Product code: GA607

Unfortunately, the GA607 has been discontinued, check out our other Sound Level Calibrators for more options.

Calibrator, Dual Level, Class 1 (includes GA690 Barometer). Regular calibration of any sound level meter is called for in virtually all standards, legislation and codes of practice. A calibrator should be purchased with all instruments.

Read more

Unfortunately, the GA607 has been discontinued, check out our other Sound Level Calibrators for more options.

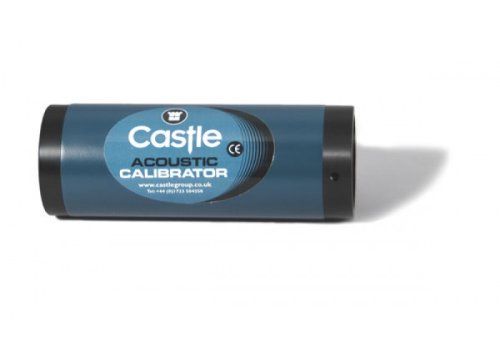

The GA607 meets the demanding standards of a class 1 calibrator. It features two calibration levels, 94dB and 104dB re 20Pa both at 1kHz. It is for use with microphones. Using the GA607, a sound level meter can be checked at two meter scale points and usually on two ranges.

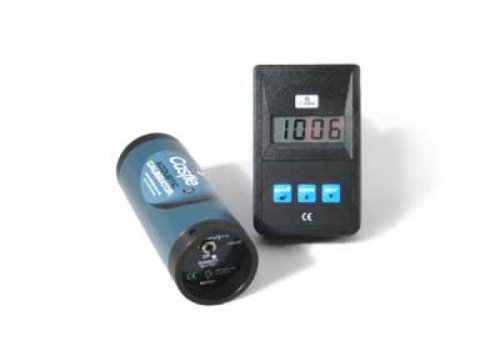

IEC 60942 states that for a calibrator to be used in the Class 1 category, it must be corrected for barometric pressure. The Castle GA690 barometer is supplied with the GA607 Class 1/C calibrator for just this purpose. With a simple readout on the clear display and a correction table printed on the reverse, this is a simple process.

Supplied with a manufacturers calibration certificate!

Applicable Standards:
IEC60942:2003 Sound Calibrators, Class 1/C.

Output:
94dB or 104dB relative to 20Pa

Nominal Sound Pressure level at 101.3kPa (760mm Hg) 23 & 50%RH
Tolerance: 0.3dB
Harmonic Distortion: < 3%

Temperature range:
-10C to 50C

Batteries:
2 x 3V CR2032 (Coin Cell)
Life: approx. 70 hours

Dimensions:
Cavity diameter: " microphone standard
Length: 140mm,
Diameter: 51mm
Weight: 230gms

GA690 Barometer Specifications (included in kit)
Measuring Range: 0 to 1300mbar (0 to 975mmHg)
Resolution: 1mbar, 1mmHg
Accuracy: 0.25% FS hysteresis and linearity
Battery: 9V Alkaline type 6LR61 (PP3)
Battery life: Greater than 2500 hours
Dimensions: 106 x 67 x 30mm (LxWxH)
Weight: 135g incl. battery
