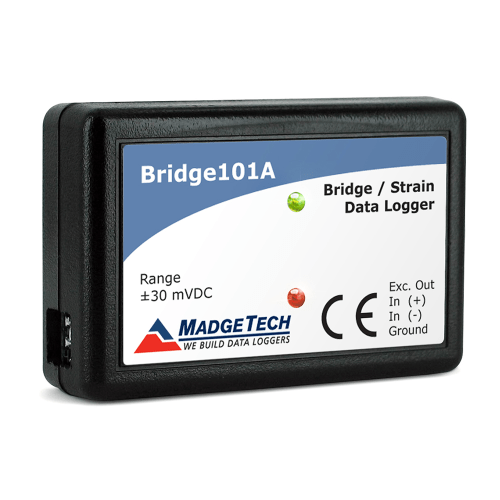

Bridge101A Strain Gauge Recorder (+/- 1200 mV) - IC-Bridge101A-1000

ORDER ME IN
Product code: IC-Bridge101A-1000

Backorder Now, once ordered your item will dispatch before the 18th of June 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).

The Bridge101A Data Logger measures and records voltage, typically used in conjunction with strain gauges, load cells or other low-level DC voltage sources. This device is designed to accurately measure and record the output of the gauge to determine parameter levels such as stress, torque, strain, and pressure on a structure or item over a period of time.

Read more

$1,443.75 AUD + GST
 $1,588.13 AUD Inc. GST

The Bridge101A Data Logger measures and records voltage, typically used in conjunction with strain gauges, load cells or other low-level DC voltage sources. This device is designed to accurately measure and record the output of the gauge to determine parameter levels such as stress, torque, strain, and pressure on a structure or item over a period of time.

The IC-Bridge101A-30 offers a reading rate of up to 4 Hz with memory capacity of 1,000,000 readings (memory wrap optional). The device can be configured to start at a specified date and time up to 24 months in advance and the push button start/stop feature allows the user to initiate or cease logging data in the field if desired.
Features:
- Multiple Start/Stop Function
- Ultra High Speed Download
- 1 Million Reading Storage Capacity
- Memory Wrap
- Battery Life Indicator
- Optional Password Protection
- Programmable Alarm
- Field Upgradeable

Specifications

:
- Measurement range: +/- 1200 mV
- Resolution: 1 uV
- Calibrated Accuracy: +/- 0.01% FSR; +/- 3 Microvolts
- Input Range: 0 to 2.5V
- Reference Voltage: 2.5 V
- Reading Rate: 4Hz to 1 every 24 hours
- Memory: 1,000,000 readings; software configurable memory wrap/330,000 readings in multiple start/stop
- Wrap Around: Yes
- Start Modes: Immediate start/Delay start up to 24 months/Multiple push button start/stop
- Stop Modes: Manual through software/Timed (specific date and time)
- Multiple Start/Stop Mode: Start and stop the device multiple times without having to download data or communicate with a PC.
- Real Time Recording: The device may be used with PC to monitor and record data in real time
Multiple Start/Stop Mode Activation:
- To start the device: Press and hold the pushbutton for 5 seconds, the green LED will flash during this time. The device has started logging.
- To stop the device: Press and hold the pushbutton for 5 seconds, the red LED will flash during this time. The device has stopped logging.
LED Functionality:
- Green LED blinks: 10 second rate to indicate logging 15 second rate to indicate delay start
- Red LED blinks: 10 second rate to indicate low battery and/or full memory 1 second rate to indicate an alarm condition
