Home > Battery Powered Xenon Stroboscope - DT-735
Checkline

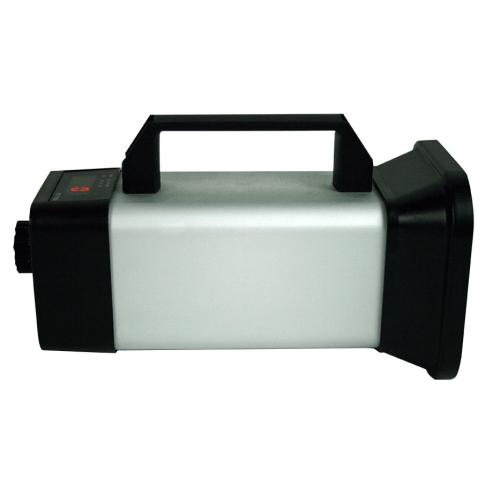

Battery Powered Xenon Stroboscope - DT-735

1 In Stock
Product code: DT-735

The DT-735 is a portable, highly stable, industrial- quality stroboscope for non-contact inspection and observation of moving parts by providing the user the illusion of stopped or slowed down equipment movement.

-Features accurate and fast-acting controls that allow users to adjust the flash rate, when needed, without having to stop the inspected machinery.

-Built with a rugged metal enclosure with top and bottom handles.

-Ideal for quality inspection and preventive maintenance of automated motion equipment.

Read more

$1,119.90 AUD + GST
 $1,231.89 AUD Inc. GST
The DT-735 is a portable, highly stable, industrial-quality stroboscope for non-contact inspection and observation of moving parts by providing the user the illusion of stopped or slowed down equipment movement.
Constructed with a rugged, metal enclosures, the DT-735s withstand harsh industrial usage. The internal rechargeable battery and included top and bottom handles aid in portability and usage flexibility. The control adjustment settings allow the flash rate to be readily altered by the user to visually inspect rotating or reciprocating machinery such as gear teeth, rotors, shafts, rewinders, printing presses, etc. all without stopping production.
Features:
- Bright LED Display Aids viewing in poorly lit areas
- Light Weight, compact design
- Easy adjustment with flash dial combined with x2/divide 2 and fine tuning +/- buttons enables precise flash setting
- Internal, fast-charge rechargeable battery supply
- Includes top and bottom handle to allow user operation preference

Specifications

- Flashing Range: 60 to 12,000 fpm (flashes per minute)
- Accuracy: +/- 0.01%
- Resolution: 0.1 from 60 to 9999; 1 from 6,001 to 12,000
- Display: 5 digits, 10 mm height
- Flashtube Power/Life: Xenon less than or equal to 45W / 50,000,000
- Flash Duration: 10 to 30 s automatically adjusts with flash rate
- External Trigger Input: 5V to 12V pulse signal (high level trigger) up to 50 mA
- Lux Rating: 20 cm Distance = 1550 lx at 1500 fpm, 2350 lx at 6000 fpm with 400 mm irradiation diameter. 50 cm Distance = 650 lx at 1500 fpm , 580 lx at 6000 fpm with 600 mm irradiation diameter
- Battery: Ni-MH
- Battery Life: 1.5 to 2 hours depending on settings
- Time to Charge Battery: 5 hours to full charge
- Power Requirement: 100 to 240 VAC 50/60 Hz
- Operating Temperature: 0 to 40 C
- Dimensions: 250 x 120 x 120 mm
- Product Weight: 1.25 kg
- Package Weight: 1.86 kg
- Warranty: 1 year
- Certification: CE
- Included Accessories: Upper and Lower Handle, AC converter charger with cable
