Backlit 200mVdc full scale, Bezel mounted display, RoHS - IC-DPM 125-BL
Backorder Now, once ordered your item will dispatch before the 29th of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).

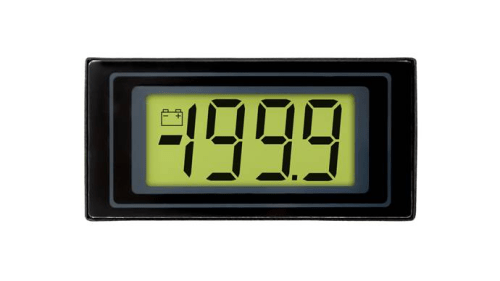

The DPM 125-BL is a 3 and a half digit LCD voltmeter with 12.5mm (0.5") digit height and LED backlighting. It features 200mV d.c. full scale reading, auto-zero and auto-polarity. The meter plugs directly into a SIL socket or can be panel mounted using the snap-in bezel and window. Connection to the meter is via two rows of 12 pins.
Regular price
$99.00 AUD
+ GST
$108.90 AUD Inc. GST
$108.90 AUD Inc. GST
Features:
200mV Full Scale Reading
Auto-zero, Auto-polarity
SIL Pin Connections
Snap-In Bezel
LED Backlighting
Specifications
Accuracy (overall error): 0.05 to 0.1% (1 count)
Linearity: 1count
Sample rate: 3 samples/sec
Operating temperature range: 0 to 50 C
Temperature stability: 100 ppm/C
Supply voltage (V+ to V-): 7.5 to 14 V d.c.
Supply current: 150 uA
Input leakage current (Vin = 0V): 1-10 pA
Back-light voltage: 7.5 to 10V d.c.
Back-light current: 30to 60 mA
