Tempmate B1 Miniature Temperature Data logger. Minimum order of 10 units.
Unfortunately, the Tempmate B5 has been discontinued, check out our other Temperature Loggers for more options.

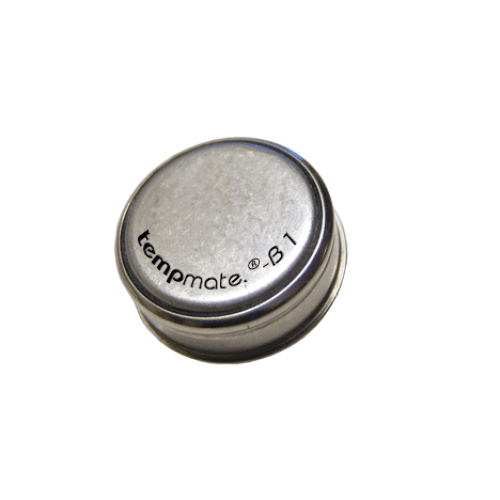

The tempmate. -B1 is a standalone 1-channel mini temperature data logger in button cell size, which can record up to 2,048 temperature measurements. The temperature range spans -40 C to +85 C, with an accuracy rate of +- 1 C. Thanks to its extremely compact construction (about the size of a watch battery), the logger is easy to use in the smallest of packages or environments.
The logger is connected to the PC via the separately available USB adapter, and is programmed, read and analysed with the aid of the user-friendly TempIT software. The TempIT-Lite software offers a graphical display and can be downloaded here, free of charge. For more comprehensive analysis, including table view, data export function (for example Excel or Word), MKT, F0, A0 and PU calculations.
Specifications
- Measurement range: -40 C to +85 C
- Accuracy: +- 1 C at -30 C to +70 C, otherwise +- 1.3 C
- Resolution: 0.5 C (8-bit)
- Storage capacity: 2,048 measurement points
- Protection class: IP55 (splashwaterproof); Housing for higher protection classes is available
- Power supply: Non-replaceable 3.0 V lithium battery
- Battery life: 10 years or 1 million measurements, depending on the sampling rate, resolution or ambient temperature.
- Measurement interval: 1 to 255 minutes (configurable)
- Start delay: Yes, up to 45 days at 1 min Resolution
- Housing material: Stainless steel
- Guarantee: 1 year
- Dimensions: Diameter = 17 mm x H = 6 mm
- Response time: approx 90 seconds in the air
- Weight: 4g
- EX zone suitability: Meets UL#913 (4th Edit), Intrinsically Safe Apparatus, approval under Entity Concept for use in Class I, Division I, Group A,
B, C and D Locations
- Clock accuracy: +- 2 minutes per month
- Recording modes: Circular buffer or stop when full
- Alarm thresholds: Min/max freely configurable
- Owner identification: Max 32 characters
- User identification: Max 64 characters
