Lambrecht

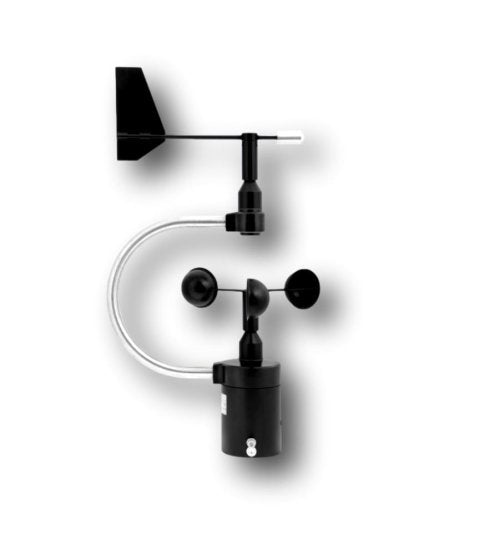

ARCO Serial Combined wind sensor (NMEA)

ORDER ME IN
Product code: IC-00.14581.010010

Backorder Now, once ordered your item will dispatch before the 11th of June 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).

The ARCO Serial Combined wind sensor (NMEA) is a very robust, compact and extremely reliable. Due to their shock and vibration proof construction the sensors ARCO-SERIAL are particularly qualified for use under severe environmental conditions. The housing and the measuring elements are made of seawater resistant aluminium alloys. The housing, the cup rotor and the wind vane are anodised.

  • Qualitatively ambitious and cost-effective solution
  • Reliable wind measurement, including under extreme weather conditions
  • Seawater resistant materials and surface finishes for long-life application, including under harsh conditions
  • Quick and easy pipe mounting, connection with just one cable

Read more

$3,369.90 AUD + GST
 $3,706.89 AUD Inc. GST
The sensors of the ARCO Serial are very robust, compact and extremely reliable. When developing these sensors particular consideration has been given to the fulfillment of meteorological requirements. The sensors embody the experience of more than 160 years of development and production of LAMBRECHT meteo wind sensors.
The system acquires the horizontal air flow and processes the measuring data to the meteorological parameters wind speed and wind direction.
The sensors and further system components are mounted in a splash water resistant and dustproof metal housing. Due to their shock and vibration proof construction the sensors of the ARCO SERIAL are particularly qualified for use under severe environmental conditions. The housing and the measuring elements are made of seawater resistant aluminium alloys. The housing, the cup rotor and the wind vane are anodized.

Specifications

- Measurement range wind direction: 0...360 degrees
- Meas. range wind speed: 0.3 ... 75 m/s
- Accuracy wind direction: +/- 1 degrees
- Accuracy wind speed: +/- 2 % FS at 0.3 ... 50 m/s
- Resolution wind direction: 1 degree
- Resolution wind speed: less than 0.1 m/s
- Output: serial RS 422, NMEA 0183 - Talker
- Range of application: temperature -30 ... +70 C wind speed 0...80 m/s 0...100 % r. h.
- Supply voltage: Sensor: (10...28 V DC), 24 V DC, 20 mA (at V DC) Heating: (20...28 V DC), 24 V DC, 800 mA
- Housing: made of anodized seawater resistent aluminium, stainless steel
