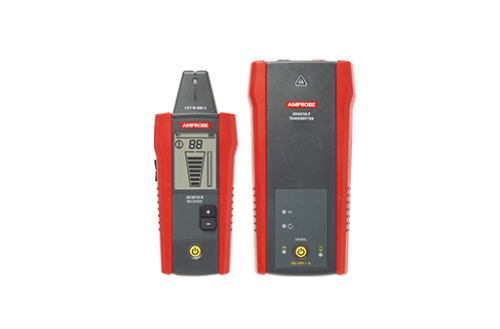

Amprobe AT-6010 Advanced Wire Tracer Kit

ORDER ME IN
Product code: IC-AT-6010

Order Me In, Once ordered this item will likely dispatch before the 09th of October 2025, call 1300 737 871 (NZ 0800 737 871) to confirm.

Easily and accurately locate wires, breakers, and fuses with the AT-6010 Advanced Wire Tracer. When the Transmitter is connected to the circuit (Energized or De-energized, up to 600 V AC/DC in Category I through Category III electrical environments), the Receiver easily detects the transmitted signal in the wires or cables behind walls, ceilings and floors.

Read more

$1,166.00 AUD + GST
 $1,282.60 AUD Inc. GST

Features:

- Traces wires in walls, ceilings, floors and corners
- Locates breakers and fuses
- Pinpoints shorts and opens
- High resolution 2.5 TFT LCD black & white display
- Simple one button Transmitter operation
- Two Transmitter signal modes: High Signal mode for normal circuits and Loop mode for closed loop de-energized circuits
- Two automatically selected frequency modes for reliable tracing on energized and de-energized circuits
- Comes with custom Amprobe soft carrying case, test leads and accessories
- Rated CAT III 600 V for work directly on an energized circuit without the need to take equipment offline
- Compatible with optional Signal Clamp (CT-400) clamp-on attachment



Specifications

- Measurement category: CAT III 600 V
- Operating voltage/current: 0 to 600 V
- Operating frequency: Energized: 6.25 kHz
- Hazardous voltage detection: > 30 V AC/DC
- Signal indications: LEDs
- Response time: Line voltage monitoring: 1 sec, Battery voltage monitoring: 5 sec
- Current output of signal (typical): Energized circuit: HI mode: 60 mA RMS/De-energized circuit: HI mode: 130 mA RMS Loop mode: 160 mA RMS
- Signal voltage output (nominal): De-energized circuit: HIGH: 33 V RMS, 140 Vp-p
- Display color: Operating mode LEDs: red/Battery status LED: red
- Booting time: < 2 sec
