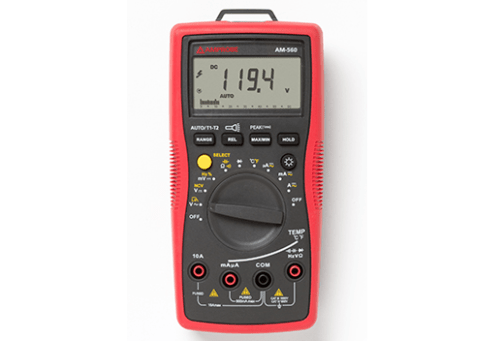

Amprobe AM-560 Advanced HVAC Multimeter

1 In Stock
Product code: IC-AM-560
The AM-560 autoranging digital multimeter is specifically designed for advanced HVAC applications. This HVAC multimeter offers a full set of professional digital multimeter features to measure a complete range of electrical parameters and key functions for HVAC applications.

Read more

$295.00 AUD + GST
 $324.50 AUD Inc. GST

Features:

- Measures AC/DC voltage up to 1000 V, AC/DC current, resistance, frequency, capacitance, temperature, and duty cycle
- Dual thermocouple takes simultaneous temperature readings on low and high side of an HVAC system
- Low pass filter accurately measures voltage on variable frequency drives
- Non-contact voltage detection enhances safety
- Audible continuity quickly identifies shorts and opens
- Diode test to verify diode polarity
- Data hold freezes the reading on the display for further analysis
- Peak hold (crest) captures and holds the peak value of a voltage or current surge
- MIN/MAX recording records min/max measurements over time to show voltage fluctuations
- Relative zero mode displays the difference between the actual reading and a stored reference value and may be used with any function or range
- CAT IV 600 V/CAT III 1000 V safety rated for high voltage environments

Specifications

- AC Voltage: 6.000 V, 60.00 V, 600.0 V, 1000 V, +/- (1.0 % rdg + 3 LSD) at 45 Hz to 400 Hz, 0 V to 600 V
- DC Voltage: 600.0 mV, 6.000 V, 60.00 V, 600.0 V, 1000 V, +/- (0.5% rdg + 2 LSD) at 6 V to 600 V ranges
- AC Current: 600.0 uA, 6000 uA, 60.00 mA, 500.0 mA, 10.00 A +/- (1.2% Rdg + 5 LSD) at 600 uA to 6000 uA ranges, 45 Hz to 400 Hz
- DC Current: 600.0 uA, 6000 uA, 60.00 mA, 500.0 mA, 10.00 A +/- (1.0% Rdg + 2 LSD) at 600 uA to 6000 uA ranges
- Frequency: 60.00 Hz, 600.0 Hz, 6.000 kHz, 60.00 kHz, 600.0 kHz, 6.000 MHz, 60.00 MHz, +/- (0.1% rdg + 3 LSD)
- Resistance: 600.0 ohms, 6.000 kiloohms, 60.00 kiloohms, 600.0 kiloohms, 6.000 megaohms, 60.00 megaohms, +/- (1.0% rdg + 2 LSD) at 6 kiloohms to 600 kiloohms ranges
- Capacitance: 60.00 nF, 600.0 nF, 6.000 uF, 60.00 uF, 600.0 uF, 6000 uF, 60.00 mF +/- (3.0% rdg + 5 LSD) at 600 nF to 60 uF ranges
- Temperature: -40 to 1000 C (-40 to 1832 F)
- Number of temperature inputs: Dual Thermocouple
- Duty cycle: 10.00% to 90.00% +/- (1.2% rdg + 30 LSD) at 5 Hz to 2 kHz
