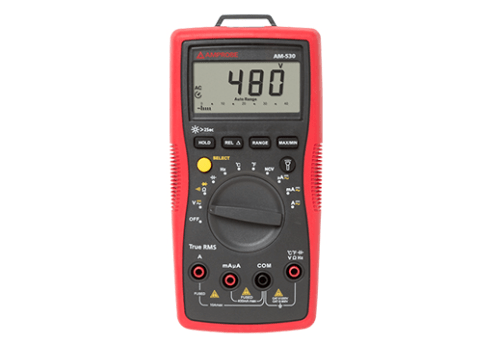

Amprobe AM-530 True-rms Electrical Contractor Multimeter

ORDER ME IN
Product code: IC-AM-530

Backorder Now, once ordered your item will dispatch before the 05th of June 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).

The Amprobe AM-530 autoranging digital multimeter is the multimeter of choice for professional electrical contractors. The AM-530 is a True-rms digital multimeter so it accurately measures voltage on systems affected by harmonics.

Read more

$231.00 AUD + GST
 $254.10 AUD Inc. GST

Features:

- True-rms technology improves accuracy in electrically noisy environments
- Measures AC/DC voltage up to 600 V, AC/DC current, resistance, frequency, capacitance, and temperature
- Non-contact voltage detection enhances safety
- Audible continuity quickly identifies shorts and opens
- Diode test to verify diode polarity
- Data hold freezes the reading on the display for further analysis
- MIN/MAX recording records min/max measurements over time to show voltage fluctuations
- Relative zero mode displays the difference between the actual reading and a stored reference value and may be used with any function or range
- Combines user friendly features such as, auto power-off to conserve battery life, low battery warning, a third hand test probe holder, built-in test leads storage, a built-in flashlight, and a Velcro strap to hang the meter
- Auto and manual-ranging delivers maximum flexibility
- Backlit LCD display with analog bar graph makes it easy to view results
- CAT III 600 V safety rated

Specifications

- True-rms: Yes
- AC Voltage: 400 mV, 4.000 V, 40.00 V, 400.0 V, 600 V +/- (1.0 % rdg + 3 LSD) at 45 Hz to 400 Hz, 4 V to 400 V ranges
- DC Voltage: 400 mV, 4.000 V, 40.00 V, 400.0 V, 600 V +/- (0.8% rdg + 1 LSD) at 4 V to 400 V ranges
- AC Current: 400.0 uA, 4000 uA, 40.00 mA, 400.0 mA, 4.000 A, 10.00 A +/- (1.2% rdg + 3 LSD) at 400 uA V to 400 mA ranges
- DC Current: 400.0 uA, 4000 uA, 40.00 mA, 400.0 mA, 4.000 A, 10.00 A +/- (1.2% rdg + 3 LSD) at 400 uA to 400 mA ranges, 45 Hz to 400 Hz
- Frequency: 10 Hz to 10 MHz +/- (0.1% rdg + 4 LSD)at 400 uA to 400 mA ranges
- Resistance: 400.0 ohms, 4.000 kiloohms, 40.00 kiloohms, 400.0 kiloohms, 4.000 megaohms, 40.00 megaohms +/- (1.0% rdg + 2 LSD) at 4 kiloohms to 400 kiloohms ranges
- Capacitance: 40.00 nF, 400.0 nF, 4.000 uF, 40.00 uF, 400.0 uF, 4000 uF +/- (3.0% rdg + 5 LSD)at 400 nF to 40 uF ranges
- Temperature: -40 to 1000 C (-40 to 1832 F) +/- (1.2% rdg + 3 C) at less than 0 to 100 C (+/- (1.8% rdg + 6 F) at less than 32 to 212 F)
- Number of temperature inputs: Single Thermocouple
