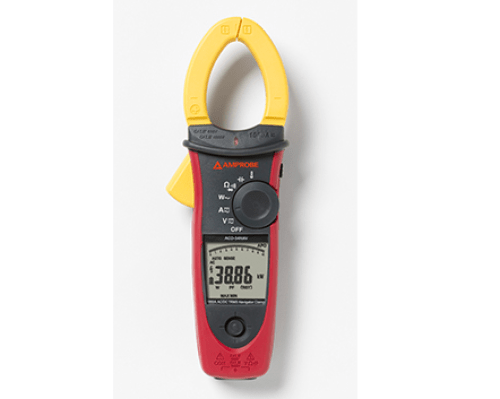

Amprobe ACDC-54NAV 1000 A AC/DC Navigator Clamp Meter with Temperature

ORDER ME IN
Product code: IC-ACDC-54NAV

Order Me In, Once ordered this item will likely dispatch before the 04th of October 2025, call 1300 737 871 (NZ 0800 737 871) to confirm.

The ACDC-54NAV clamp-on power meter offers AC/DC current measurements to 1000 A, AC/DC voltage to 1000 V, temperature capabilities, and wide jaws to handle large conductors up to 40 mm for high voltage industrial environments. This clamp-on multimeter offers a full range of power quality diagnostics including power and power factor, total harmonics distortion, individual harmonics, in-rush current, phase sequence, TRMS and low pass filter for industrial power monitoring and verifying system conditions.

Read more

$1,147.00 AUD + GST
 $1,261.70 AUD Inc. GST

Features:

- True-rms technology improves accuracy in noisy environments
- Measures AC/DC voltage to 1000 V, AC/DC current to 600 A, plus resistance, frequency, capacitance, power and power factor, total harmonics distortion (THD) and individual harmonics from 1 to 25
- Includes inrush current measurement and phase rotation indication for 3-phase motors
- Non-contact voltage detection enhances safety
- Low pass filter enables measuring voltage and frequency on variable frequency drives
- Continuity beeper quickly identifies shorts and opens
- Large backlit digital display with analog bar graph presents the full picture
- Min, max and smart data hold
- Peak hold identifies spikes and transients
- In-jaw flashlight automatically lights when jaws open to illuminate dark panels and junction boxes
- Auto power off conserves battery life
- Maximum jaw opening accommodates large conductors up to 1.45 (37 mm)
- Rubber overmold body absorbs shocks€”drop proof to 4 feet (1.2 m)
- CAT IV-rated AC/DC current clamp meter



Specifications

- AC Current: 100.00 A, 1000.0 A
- DC Current: 100.00 A, 1000.0 A
- AC Voltage: 100.00 V, 1000 V
- DC Voltage: 100.00 V, 1000 V
- Resistance: 1.0000 KO, 10.00 KO, 100.00 KO
- Frequency: 20.0 Hz to 10 KHz
- Capacitance: 400.0 uF, 4.000 mF
- THD (total harmonics distortion): 0.1% 100.0%
- Individual harmonics: 1 to 25
- Power: 10 kW 1000 kW
- Power factor: -1.00 to 1.00
- Accommodates conductors: Up to 1.60 (40 mm) in diameter
