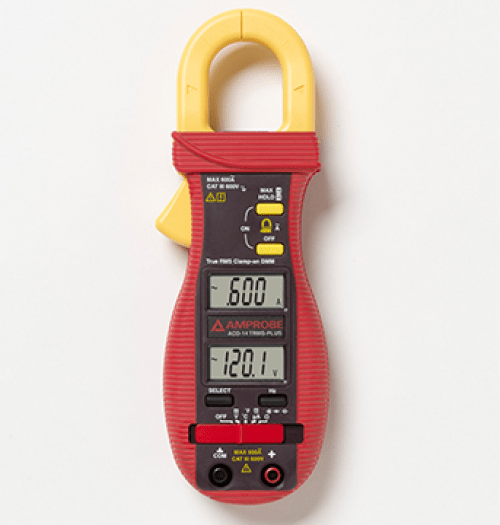

Amprobe ACD-14 TRMS-PLUS Dual Display Digital Clamp Multimeter
Order Me In, Once ordered this item will likely dispatch before the 04th of October 2025, call 1300 737 871 (NZ 0800 737 871) to confirm.
$558.80 AUD Inc. GST
Features:
- Dual displays permits simultaneous reading of amperage and voltage
- True-rms for precise measurement results
- New thin jaws, 5mm thinner than others to access tight measurement spaces
- Micro Amps measurement for testing flame sensors
- Capacitance to 3000 F
- Temperature with K-type thermocouple probe
- AC and DC Voltage to 600V
- Resistance to 40M
- AC Current to 600A
- Frequency measurement
- Diode test and continuity buzzer
- Hold and maximum reading functions
- In rush current
- Accommodates conductors up to 28 mm (1.1) in diameter
- Auto ranging
- Auto power off and low battery indication
- Rubber over-molded case
Specifications
- True-rms: Yes
- AC Voltage: 4.000 V, 40.00 V, 400.0 V, 600 V
- DC Voltage: 400.0 mV, 4.000 V, 40.00 V, 400.0 V, 600 V
- AC Current: 40.00 A, 400.0 A, 600 A
- Resistance: 400.0 O, 4.000 kO, 40.00 kO, 400.0 kO, 4.000 MO, 40.00 MO
- Capacitance: 500.0 nF, 5.000 uF, 50.00 uF, 500.0 uF, 3000 uF
- Frequency: 40 Hz to 400 Hz with Jaw, 10 Hz to 100 kHz with test leads
- Temperature: -20 to 537 C (-4 to 999)
- Accommodates conductors: up to 1.0 (25 mm) in diameter
- Display: 3-3/4 digits 4000 counts, dual LCD displays
- Update rate: 3 per second nominal
- Polarity: Automatic
- Operating temperature: 0 to 40 C (32 to 104 F)
- Power supply: Two 3V alkaline button batteries (ANSI/NEDA-5004LC, IEC-CR2032
