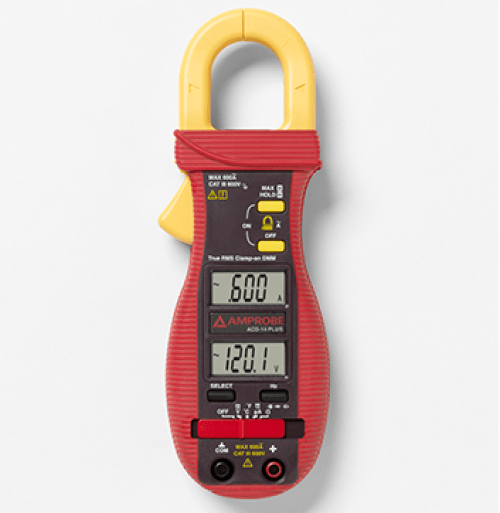

Amprobe ACD-14 PLUS Dual Display Clamp Multimeter with Temperature

ORDER ME IN
Product code: IC-ACD-14-PLUS

Order Me In, Once ordered this item will likely dispatch before the 04th of October 2025, call 1300 737 871 (NZ 0800 737 871) to confirm.

The ACD-14 PLUS clamp meter works as both an HVAC multimeter and electrical multimeter with a versatile set of features, including microamps, capacitance, frequency and temperature with included thermocouple. The dual displays show amps and volts simultaneously, useful for measuring voltage drop under load. The thinner jaws of this digital clamp multimeter enable access to tight measurement areas and still handles conductors up to 1? (25 mm).

Read more

$333.00 AUD + GST
 $366.30 AUD Inc. GST

Features:

- Dual displays permit simultaneous reading of amps and volts
- Measures AC Current to 600A and AC/DC Voltage to 600 V
- Measures frequency, capacitance to 3000 F, and resistance to 40M
- Measures temperature with K-type thermocouple probe
- Includes micro amps measurement for testing flame sensors
- Diode test quickly finds voltage drops
- Continuity beeper detects opens and shorts
- Auto ranging instantly selects correct range
- Hold and maximum reading functions
- New thin jaws, 5 mm thinner than standard digital clamp meters make it easier to access conductors in tight spaces
- Accommodates conductors up to 1.0 (25 mm) in diameter
- Auto power off and low battery indication helps you make the most of battery life
- Rubber, over-molded case absorbs shock



Specifications

- AC Voltage: 4.000 V, 40.00 V, 400.0 V, 600 V
- DC Voltage: 400.0 mV, 4.000 V, 40.00 V, 400.0 V, 600 V
- AC Current: 40.00 A, 400.0 A, 600 A
- Resistance: 400.0 O, 4.000 kO, 40.00 kO, 400.0 kO, 4.000 MO, 40.00 MO
- Capacitance: 500.0 nF, 5.000 uF, 50.00 uF, 500.0 uF, 3000 uF
- Frequency: 40 Hz to 400 Hz with Jaw, 10 Hz to 100 kHz with test leads
- Temperature: -20 to 537 C (-4 to 999)
- Accommodates conductors: up to 1.0 (25 mm) in diameter
- Display: 3-3/4 digits 4000 counts, dual LCD displays
- Update rate: 3 per second nominal
- Polarity: Automatic
- Operating temperature: 0 to 40 C (32 to 104 F)
- Power supply: Two 3V alkaline button batteries (ANSI/NEDA-5004LC, IEC-CR2032
