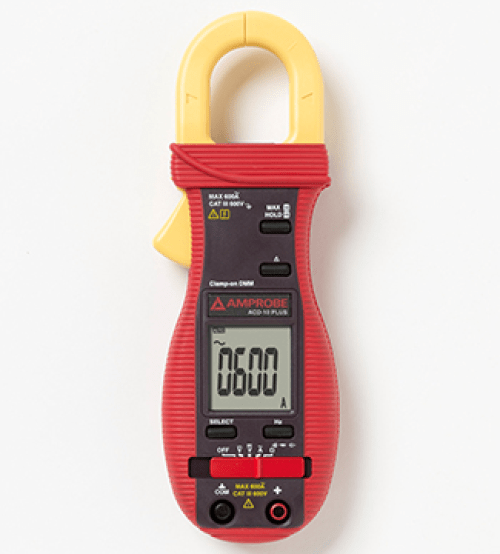

Amprobe ACD-10 PLUS 600A Clamp Multimeter
Order Me In, Once ordered this item will likely dispatch before the 04th of October 2025, call 1300 737 871 (NZ 0800 737 871) to confirm.
$366.30 AUD Inc. GST
Features:
- Measures AC and DC voltage to 600V and AC current to 600A to handle residential/commercial and small industrial applications
- Thin jaws, only 10mm (0.4) thick make it easier to maneuver between tightly packed conductors
- Measures frequency, resistance, and capacitance
- Features continuity beeper to quickly find opens and shorts
- Accommodates conductors up to 1.0 (25mm) in diameter
- Auto ranging saves time by instantly selecting correct range
- Auto power off to conserve battery life
- Rubber over-molded case absorbs shock
- Includes test leads, battery (installed), soft carrying pouch, and users manual
Specifications
- AC Voltage: 4.000 V, 40.00 V, 400.0 V, 600 V
- DC Voltage: 400.0 mV, 4.000 V, 40.00 V, 400.0 V, 600 V
- AC Current: 40.00 A, 400.0 A, 600 A
- Resistance: 400.0 , 4.000 , 40.00 , 400.0 , 4.000 M, 40.00 M
- Capacitance: 500.0 nF, 5.000 F, 50.00 CF, 500.0 F, 3000 F
- Frequency: 40 Hz to 400 Hz with Jaw, 10 Hz to 100 kHz with test leads
- Display: 3-3/4 digits 4000 counts LCD display
- Update rate: 3 per second nominal
- Polarity: Automatic
- Operating temperature: 0 to 40 C; less than 80% RH for temperature up to 31 C decreasing linearly to 50% RH at 40 C
- Altitude: Operating below 2000m; Indoor use
- Storage temperature: -20 to 60 C, less than 80% RH (with battery removed)
- Temperature coefficient: nominal 0.15 x (specified accuracy)/C at(0 to 18 C or 28 to 40 C)
- Low battery: Below approx. 2.4V
- Power supply: 3V coin battery IEC-CR2032
- Power consumption: 2.8 mA typical except that 3.3 mA typical for ACA function
- APO timing: Idle for 30 minutes
- APO consumption: 5 uA typical
- Jaw opening conductor diameter: max 26 mm
- Special features: 30ms Max Hold; Data Hold; Relative Zero mode
