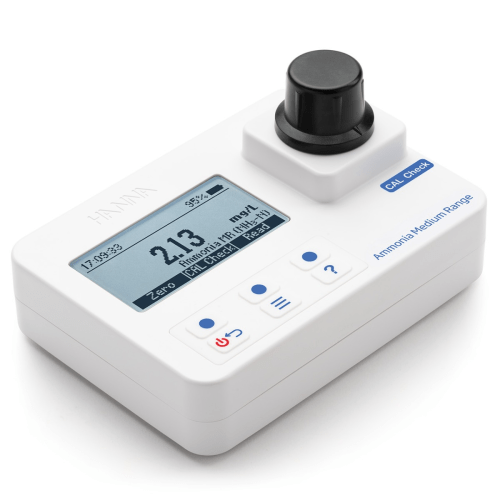

Ammonia Medium-Range Portable Photometer Kit with CAL Check - IC-HI97715
Order Me In, Once ordered this item will likely dispatch before the 18th of September 2025, call 1300 737 871 (NZ 0800 737 871) to confirm.
$546.48 AUD Inc. GST
The HI97715 has an innovative optical system that offers superior performance in accuracy, repeatability, and the short amount of time it takes to perform a measurement. This compact, waterproof meter is extremely user friendly with a tutorial mode that walks the user graphically, step by step, in performing a measurement. The use of a backlit dot matrix LED allows the use of virtual keys which makes the operation of the meter very intuitive including selecting different units of measure, reviewing GLP data, recalling the last 50 measurements, and customizing the meter to user preferences.
HI97715 is completely waterproof including the cuvette holder that is designed with ridges to protect the optical path from getting scratched by the cuvette and a gasketed battery compartment that holds three common AA batteries. The compact design fits comfortable in the hand for use in the field or on a table for benchtop use. The LCD is 71 mm (2.75") by 37 mm (1.6") and is backlit for easy viewing under all conditions.
Features:
- Stable Light Source: The internal reference system of the HI97715 photometer compensates for any drifts due to power fluctuations or
ambient temperature changes. With a stable source of light the readings are fast and stable between your blank (zero) measurement and
sample measurement.
- Large Cuvette Size: The sample cell of the HI97715 fits a round, glass cuvette with a 25 mm path length. The relatively long path
length of the sample cuvette allows the light to pass through more of the sample solution, ensuring accurate measurements even in low
absorbance samples.
- High Efficiency Light Source: LED light sources offer superior performance compared to tungsten lamps. LEDs have a much higher luminous
efficiency, providing more light while using less power. They also produce little heat, which could otherwise affect electronic stability.
- Intuitive Dot Matrix Display: The HI97715 is designed with a backlit, graphic LCD. With virtual keys, a battery status indicator,
and error messages. Users will find the meter interface intuitive and easy to read. A dedicated help key provides information relating
to the current meter operation, and can be used at any stage in the setup or measurement process to show contextual help.
- High Quality Filters: Improved optical filters ensure greater wavelength accuracy and allow a brighter, stronger signal to be received.
The end result is higher measurement stability and less wavelength error.
- Auto-off Protection: The meter uses three common AA batteries that allow for about 800 measurements to be taken. The auto-off feature
automatically shuts off the meter after 15 minutes of inactivity in order conserve battery life.
- Greater Light Yield:A focusing lens collects all of the light that exits the cuvette, eliminating errors from imperfections and scratches
that may be present in the glass. The use of the convex lens reduces the need for indexing cuvettes.
- CAL Check Functionality: Hannas exclusive CAL Check feature allows for performance verification and calibration of the meter using
NIST traceable standards. Our CAL Check standard vials are developed to simulate a specific absorbance value at each wavelength to
verify the accuracy of subsequent readings.
Specifications
- Ammonia Range: 0.00 to 10.00 mg/L (as NH3-N)
- Ammonia Resolution: 0.01 mg/L
- Ammonia Accuracy: +/- 0.05 mg/L +/- 5% of reading
- Ammonia Method: adaptation of the ASTM Manual of Water and Environmental Technology, D1426 Nessler method
- Photometer/Colorimeter Light Source: Light emitting diode
- Photometer/Colorimeter Light Detector: silicon photocell with narrow band interference filter @ 420 nm
- Bandpass Filter Bandwidth: 8 nm
- Bandpass Filter Wavelength Accuracy: +/- 1.0 nm
- Cuvette Type: round, 24.6 mm diameter (22 mm inside)
- GLP: date, time of last calibration
- Display: 128 x 64 pixel B/W LCD with backlight
- Logging Type: automatic logging
- Logging Memory: 50 measurement
- Battery Type/Life: 1.5V AA battery (3 pcs.) / > 800 measurements (without backlight)
- Automatic Shut-Off: After 15 minutes of inactivity (30 minutes before a READ measurement)
- Environment: 0 to 50 C (32 to 122 F); relative humidity: 100% (IP67)
- Weight: 380 g (13.4 oz.) with batteries
- Dimensions: 142.5 x 102.5 x 50.5 mm (5.6 x 4.0 x 2.0")
Ordering information:
The HI97715 is supplied with cuvettes (2), caps (2), plastic inserts for cuvettes (2), 1.5V AA batteries (3), instruction manual, and instrument quality certificate.
